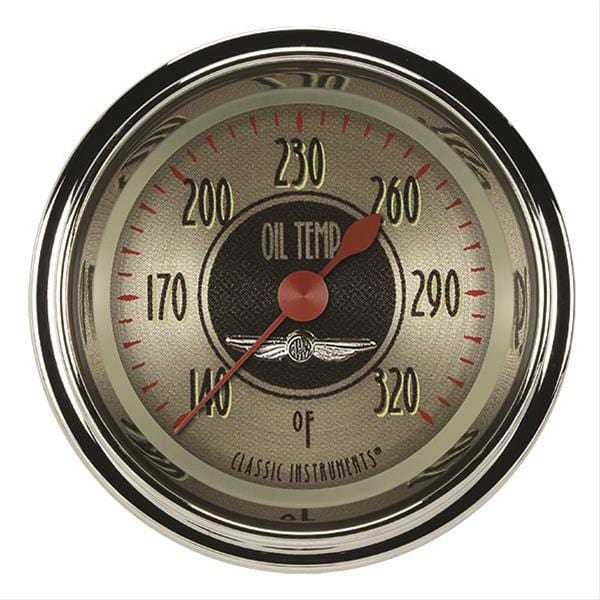

Classic Instruments All-American Nickel Series Gauges AN128SHC
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: AN128SHC
Part Type: Gauges
Product Line: Classic Instruments All-American Nickel Series Gauges
Automotive Fittings Part Number: CIN-AN128SHC
Gauge Type: Oil temperature
OEM Replacement: No
Gauge Style: Analog
Sending Unit: Electrical
Gauge Diameter (in.): 2 1/8 in.
Gauge Diameter (mm): 54mm
Gauge Range: 140-320 degrees F
Gauge Shape: Round
Sweep: Full sweep
Gauge Face Color: Nickel
Gauge Number Color: Black with yellow outline
Pointer Color: Red
Bezel Color: Stainless steel
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: Yes
Sending Unit Thread Size: 1/8 in. NPT
Remanufactured: No
Quantity: Sold individually.
Notes: Features include temperature sending unit, LED lighting, analog 0.5-4.5V DC output for data logging, push-button calibration, and rugged air core movement combined with microprocessor technology. Gauge has integrated red warning light, illuminates entire gauge when activated. Installation hardware and wiring harness included.
Description:
Bridge the past and present with Classic Instruments All-American Nickel Series gauges. Their nostalgic looks and modern innovation are the perfect blend to complement any special project vehicle. Available in different diameters and sweeps, the analog All-American Nickel gauge collection spans a range of gauge types with luxurious styling that comes standard with gold backgrounds, spun metal dial faces, red teardrop pointers, stainless high-step bezels, curved lenses, and elegant winged emblems to create a dramatic, dimensional look that is truly timeless. For replacement or upgrade, order the Classic Instruments gauges needed for your vehicle.
Features include:
* Rugged air core movement for durability
* Microprocessor technology for precision
* Full sweep instruments provide increased accuracy
* Push-button calibration
* Integrated red warning light illuminates entire gauge red when activated
* Warning light output for additional warning indicator lights
* Analog .5 to 4.5 VDC output for data logging systems
* LED lighting
