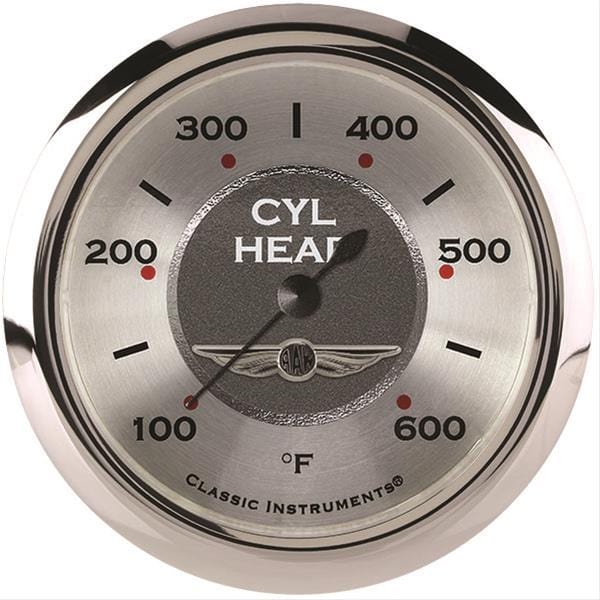

Classic Instruments All-American Series Gauges AW397SRC
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: AW397SRC
Part Type: Gauges
Product Line: Classic Instruments All-American Series Gauges
Automotive Fittings Part Number: CIN-AW397SRC
Gauge Type: Cylinder head temperature
OEM Replacement: No
Gauge Style: Analog
Sending Unit: Electrical
Gauge Diameter (in.): 2 5/8 in.
Gauge Diameter (mm): 67mm
Gauge Range: 100-600 degrees F
Gauge Shape: Round
Sweep: Full sweep
Gauge Face Color: Silver
Gauge Number Color: Black
Pointer Color: Black
Bezel Color: Stainless steel
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: Yes
Sending Unit Thread Size: 1/8 in. NPT
Remanufactured: No
Quantity: Sold individually.
Notes: Features include Type K thermocouple, thermocouple amplifier, LED lighting, analog 0.5-4.5V DC output for data logging, push-button calibration, and rugged air core movement combined with microprocessor technology. Gauge has integrated red warning light, illuminates entire gauge when activated. 14mm copper lug and 10 ft. stainless braided wire included.
Description:
Classic Instruments All-American Series gauges deliver modern elegance and accuracy for your vehicle. Beautiful stainless steel radial-style bezels, curved glass lenses, precision spun backgrounds, teardrop pointers, and elegant winged emblems create instruments that will complement any project. Available in different sizes and sweeps, the All-American Series collection is offered individually in many gauge types to fulfill your needs.
Features include:
* Rugged air core movement for durability
* Microprocessor technology for precision
* Full sweep instruments provide increased accuracy
* Push-button calibration
* Integrated red warning light illuminates entire gauge red when activated
* Warning light output for additional warning indicator lights
* Analog .5 to 4.5 VDC output for data logging systems
* LED lighting
