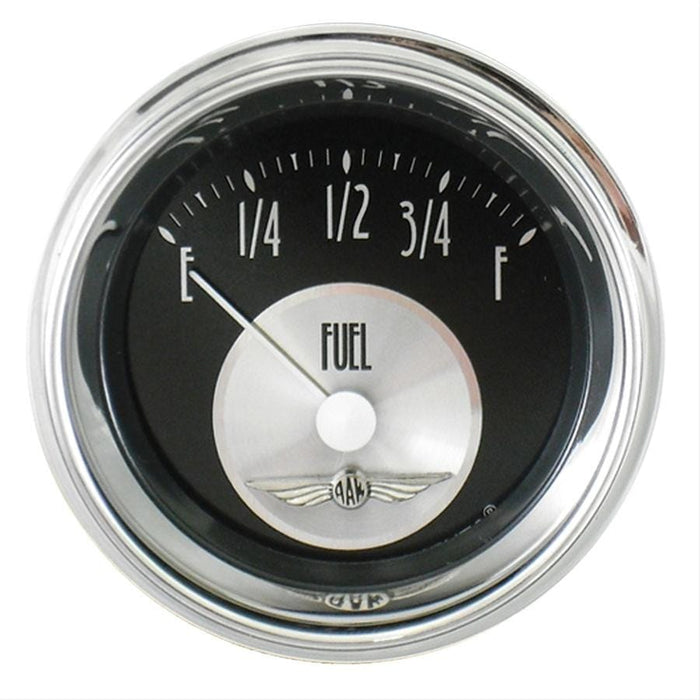

Classic Instruments All-American Tradition Series Gauges AT12SHC
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: AT12SHC
Part Type: Gauges
Product Line: Classic Instruments All-American Tradition Series Gauges
Automotive Fittings Part Number: CIN-AT12SHC
Gauge Type: Fuel level
OEM Replacement: No
Gauge Style: Analog
Sending Unit: Electrical
Gauge Diameter (in.): 2 1/8 in.
Gauge Diameter (mm): 54mm
Gauge Range: Empty-full
Gauge Shape: Round
Sweep: Short sweep
Gauge Face Color: Black
Gauge Number Color: White
Pointer Color: White
Bezel Color: Polished
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: No
Sender Ohm Range: 0 ohms empty, 90 ohms full
Remanufactured: No
Quantity: Sold individually.
Notes: High step bezel with a curved lens.
Description:
Classic Instruments All-American Tradition Series gauges withstand the test of time! They will grace your dash with clean lines and rich accents of deep black backgrounds, spun centers, teardrop pointers, and elegant winged emblems. Surrounded by stainless steel high step bezels and curved glass lenses, they also possess the technology for precise, accurate readings. All-American Tradition Series individual gauges are offered in different sizes and sweeps, and a wide range of gauge types to fill your dash with just the instruments you need.
Features include:
* Rugged air core movement for durability
* Microprocessor technology for precision
* Full sweep instruments provide increased accuracy
* Push-button calibration
* Integrated red warning light illuminates entire gauge red when activated
* Warning light output for additional warning indicator lights
* Analog .5 to 4.5 VDC output for data logging systems
* LED lighting
