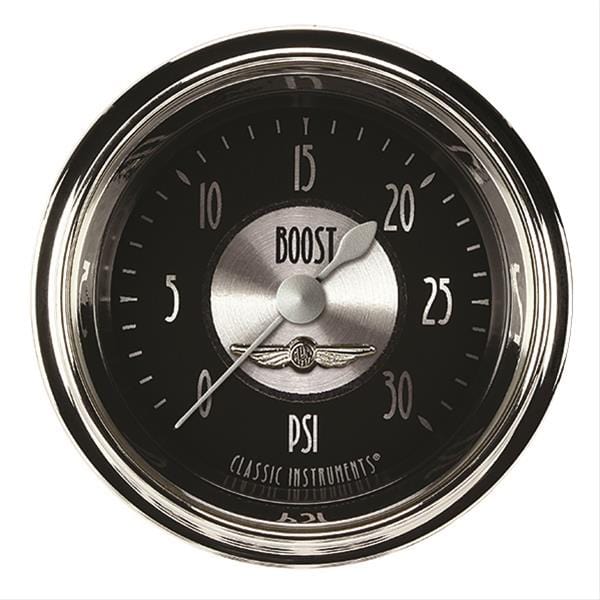

Classic Instruments All-American Tradition Series Gauges AT142SHC
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: AT142SHC
Part Type: Gauges
Product Line: Classic Instruments All-American Tradition Series Gauges
Automotive Fittings Part Number: CIN-AT142SHC
Gauge Type: Boost pressure
OEM Replacement: No
Gauge Style: Analog
Sending Unit: Electrical
Gauge Diameter (in.): 2 1/8 in.
Gauge Diameter (mm): 54mm
Gauge Range: 0-30 psi
Gauge Shape: Round
Sweep: Full sweep
Gauge Face Color: Black/Silver
Gauge Number Color: Silver
Pointer Color: White
Bezel Color: Stainless steel
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: Yes
Sending Unit Thread Size: 1/8 in. NPT
Remanufactured: No
Quantity: Sold individually.
Notes: Features include pressure transducer, LED lighting, analog 0.5-4.5V DC output for data logging, push-button calibration, and rugged air core movement combined with microprocessor technology. Gauge has integrated red warning light, illuminates entire gauge red when activated. Installation hardware and wiring harness included.
Description:
Classic Instruments All-American Tradition Series gauges withstand the test of time! They will grace your dash with clean lines and rich accents of deep black backgrounds, spun centers, teardrop pointers, and elegant winged emblems. Surrounded by stainless steel high step bezels and curved glass lenses, they also possess the technology for precise, accurate readings. All-American Tradition Series individual gauges are offered in different sizes and sweeps, and a wide range of gauge types to fill your dash with just the instruments you need.
Features include:
* Rugged air core movement for durability
* Microprocessor technology for precision
* Full sweep instruments provide increased accuracy
* Push-button calibration
* Integrated red warning light illuminates entire gauge red when activated
* Warning light output for additional warning indicator lights
* Analog .5 to 4.5 VDC output for data logging systems
* LED lighting
