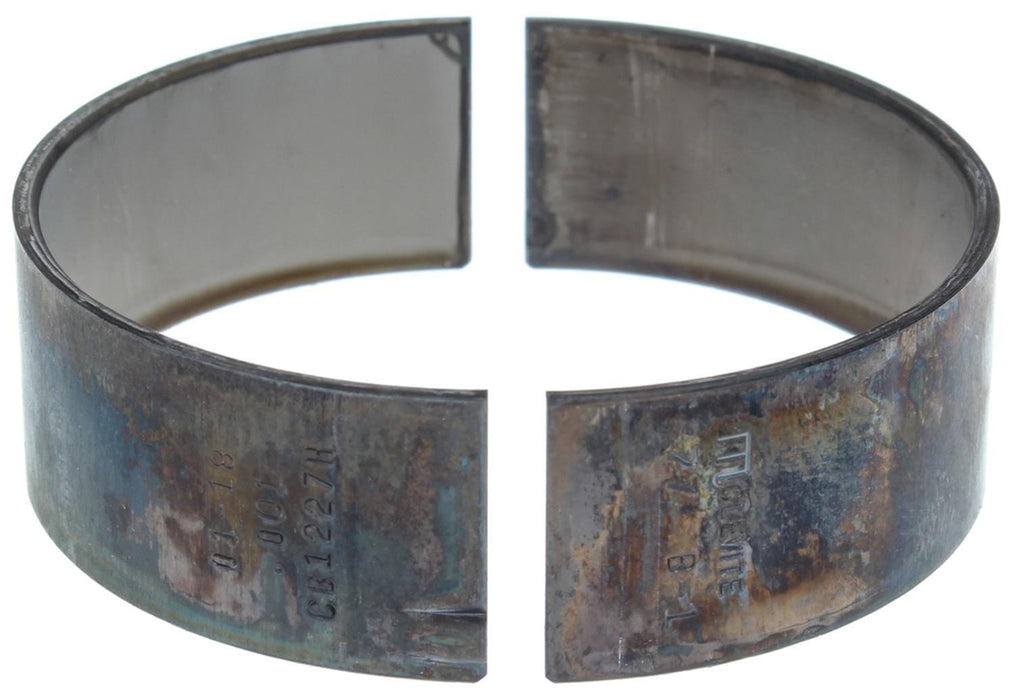

Clevite H-Series Rod Bearings CB-1227H-1
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: CB-1227H-1
Part Type: Rod Bearings
Product Line: Clevite H-Series Rod Bearings
Automotive Fittings Part Number: CLE-CB1227H1
UPC: 27067022394
Bearing Usage: Performance
Engine Crankshaft Undersize (in.): 0.001 in.
Engine Crankshaft Undersize (mm): 0.025mm
Bearing Material: Tri-metal, TM-77
Dowel Pin Hole: No
Narrow Bearing: No
Quantity: Sold individually.
Description:
Clevite H-Series rod bearings were developed primarily for use in NASCAR type racing but are suitable for all types of competition engines. These H-Series bearings have a medium level of eccentricity, high crush factor, and have hardened steel backs and thin overlays. They also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating.
Bearings with .001 in. extra clearance are available for standard size shafts and with or without dowel holes. H-Series bearings are recommended for use with crankshafts that have oversize fillets and where engines run in the medium to high rpm range. They should also be used if contact patterns obtained with Clevite P-Series bearings are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface.
