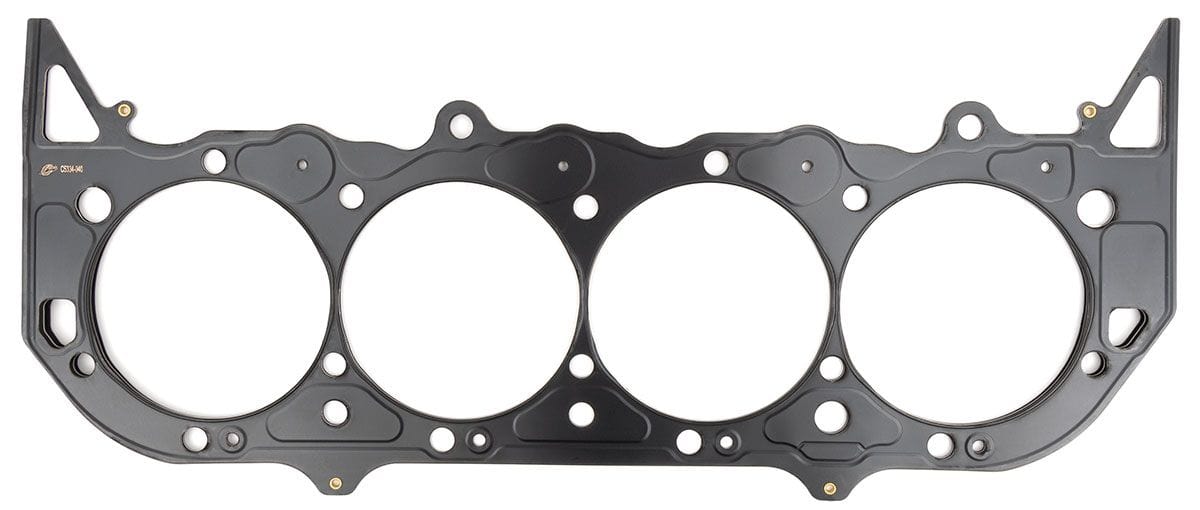

COMETIC Suit BB Chev 396-502 GEN 5 & 6, 4.630" Bore .040" Thick Multi Layer Steel Head Gasket CMC5334-040 Autofit

Multi Layer Steel Head Gasket CMC5334-040

CMC5334-040 - BB CHEV GEN 5-6 4.630" BORE
SKU CMC5334-040
by COMETIC
Sold out
$225.56 +GST
$225.56 +GST - $225.56 +GST
$225.56 +GST
$209.81 +GST
$209.81 +GST - $209.81 +GST
$209.81 +GST
$241.2815 Including GST (NZ Customers only)
Availability:
Out of stock
Multi Layer Steel Head Gasket

Suit BB Chev 396-502 GEN 5 & 6, 4.630" Bore .040" Thick

CMC5334-040

C5334-040

1 Water Holes Each End & 3 Lower MLS (Multi-Layer Steel) Head Gaskets Provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminium heads to aluminium blocks and aluminium heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250° C/ 482° F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless teel, which can be varied to accommodate multiple thickness requirements.
