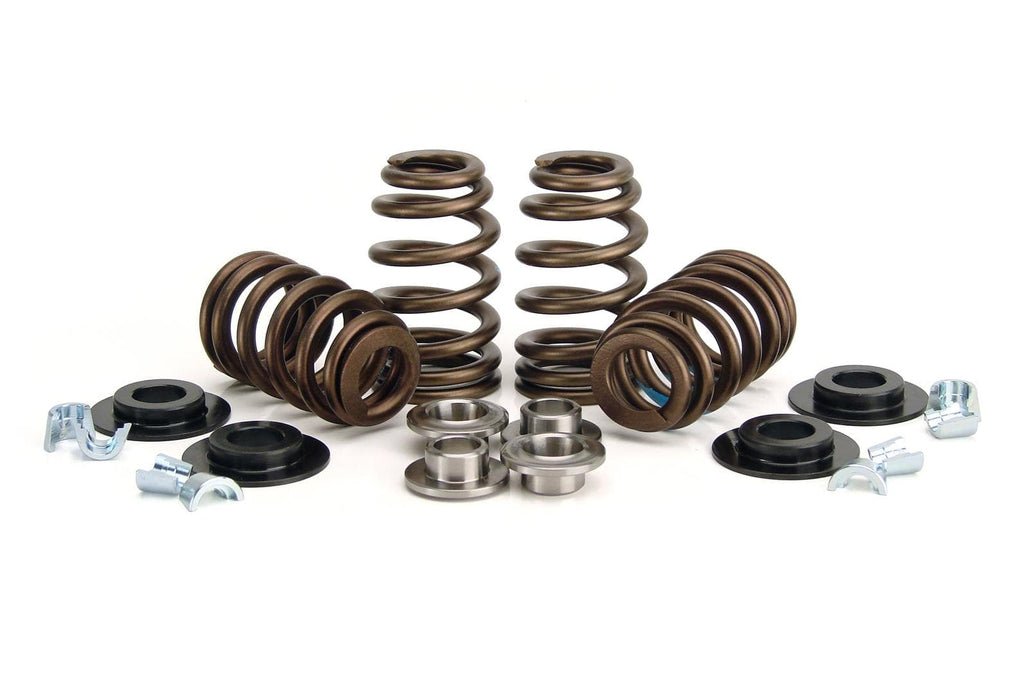

COMP Cams High Performance Valve Spring Kits 9705-KIT
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 9705-KIT
Part Type: Valve Springs
Product Line: COMP Cams High Performance Valve Spring Kits
Automotive Fittings Part Number: CCA-9705-KIT
UPC: 036584116493
Valve Spring Style: Beehive
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.600 in.
Retainers Included: Yes
Retainer Material: Titanium
Outside Diameter of Outer Spring (in.): 1.445 in.
Coil Bind Height (in.): 1.230 in.
Damper Spring Included: No
Spring Rate (lbs/in.): 370 lbs./in.
Locks Included: Yes
Lock Material: Alloy steel
Lock Groove Quantity: 1-groove
Lock Style: 10 degree
Valve Stem Seals Included: No
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.310 in.
Valve Stem Diameter (mm): 7.87mm
Remanufactured: No
Quantity: Sold as a kit.
Notes: Fits 1984-2006 Big Twin Evolution motors. Features 0.600/0.570 in. lift, Super Locks with lash cap recess, spring seats with 1.550 in. O.D., 0.585 in. I.D., and 0.600 in. thickness.
Description:
Simplify your valvetrain assembly! COMP Cams high performance valve spring kits have everything that you need for a complete valve spring assembly. Springs, seats, and retainers are included, along with complete instructions for a worry-free installation.
