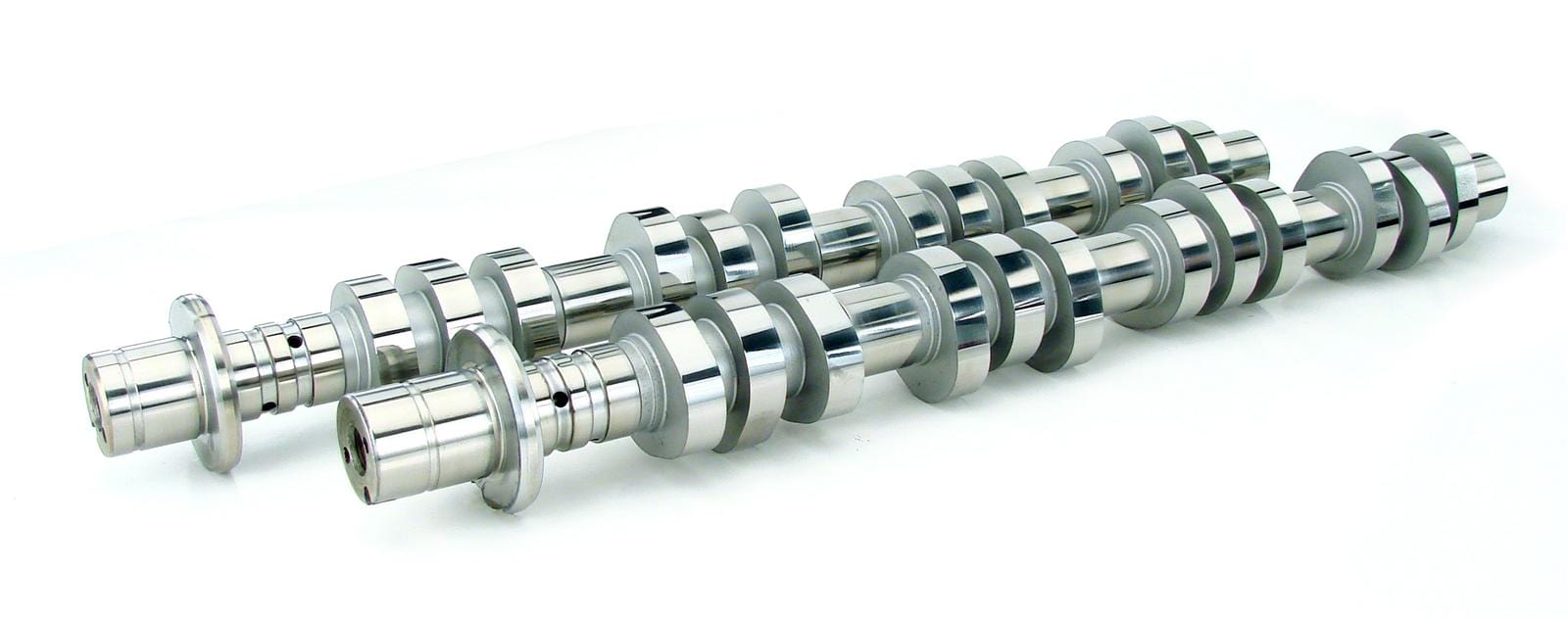

COMP Cams XFI SPR Modular 3V Camshafts 127650
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 127650
Part Type: Camshafts
Product Line: COMP Cams XFI SPR Modular 3V Camshafts
Automotive Fittings Part Number: CCA-127650
UPC: 036584183938
Cam Style: SOHC
Camshaft Use: Street/Strip
Basic Operating RPM Range: 3,500-7,100
Intake Duration at 050 inch Lift: 245
Exhaust Duration at 050 inch Lift: 256
Duration at 050 inch Lift: 245 int./256 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 295
Advertised Duration: 280 int./295 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.559 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Valve Lift with Factory Rocker Arm Ratio: 0.559 int./0.560 exh.
Lobe Separation (degrees): 113
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: XE280PH-13
Valve Springs Required: Yes
Quantity: Sold as a pair.
Notes: Fits 3V SOHC engines only. Requires ported cylinder heads, phaser upgrade and custom tuning.
Description:
The COMP Cams XFI SPR Ford 4.6L/5.4L modular 3V (Springs & Phaser Mods Required) camshafts are the best way to achieve the most power and torque increases possible with the popular Ford Modular 3V engine. These designs are the next step up from the COMP Cams VSR (Valve Springs Required) cams. When compared to the VSR cams, the SPR cams offer additional mid-rpm power increases as well as substantial power gains in the higher rpm ranges. In addition to increases in horsepower, you can also expect another 800-1000 rpm of useable engine speed and an awesome sounding idle lope to match.
To achieve this extra level of performance, lobe profiles and timing events were specifically designed to work with the factory variable cam timing (VCT) system cam phasers for all 2005 and newer Ford Modular 3V engines. These cam phasers were modified with the required COMP Cams Cam Phaser Limiter kit to restrict their movement to no more than 20 degrees. This simple modification gains additional piston to valve clearance, allowing for much larger cam designs. This results in cams that not only maintain low and mid-range power, but have incredible high rpm performance as well, all while maintaining the benefits of cam phasing. As noted by the COMP Cams engineering staff during extensive dyno testing, these camshafts provided the biggest power and torque improvements of any cam series they've ever tested in the Ford Modular 3V engine.
