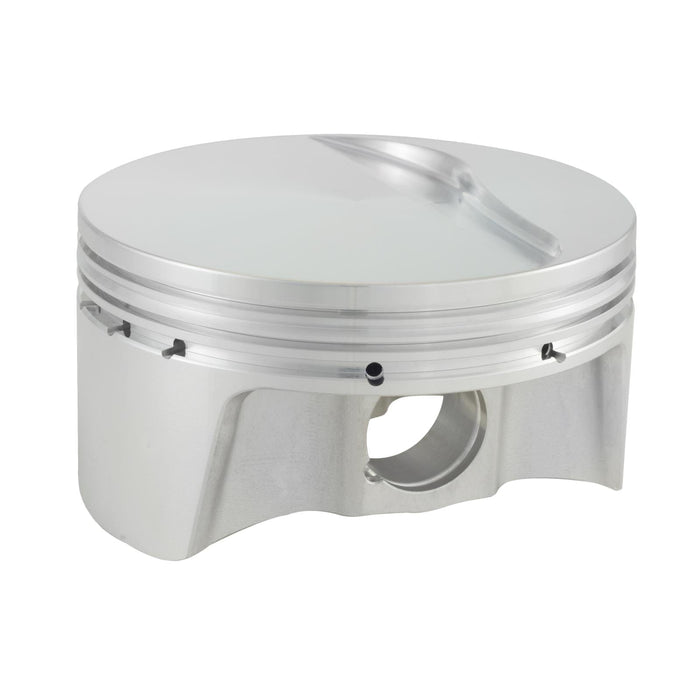

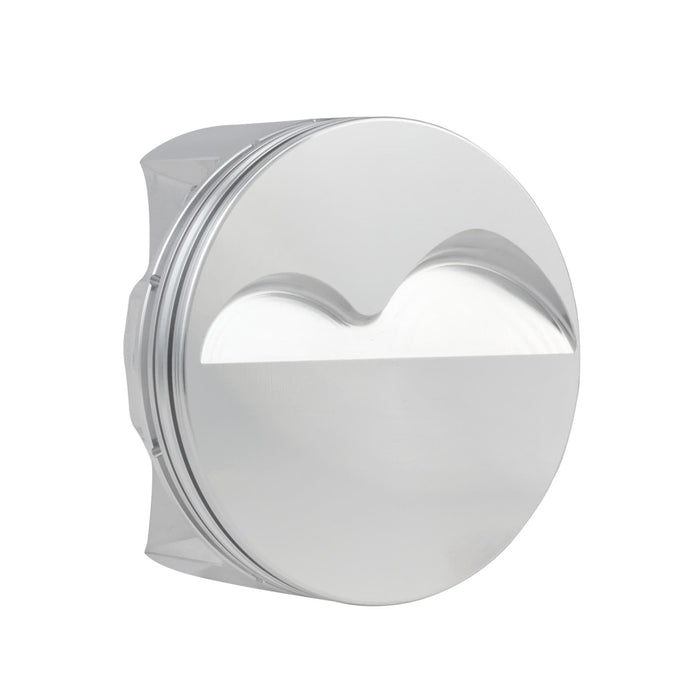

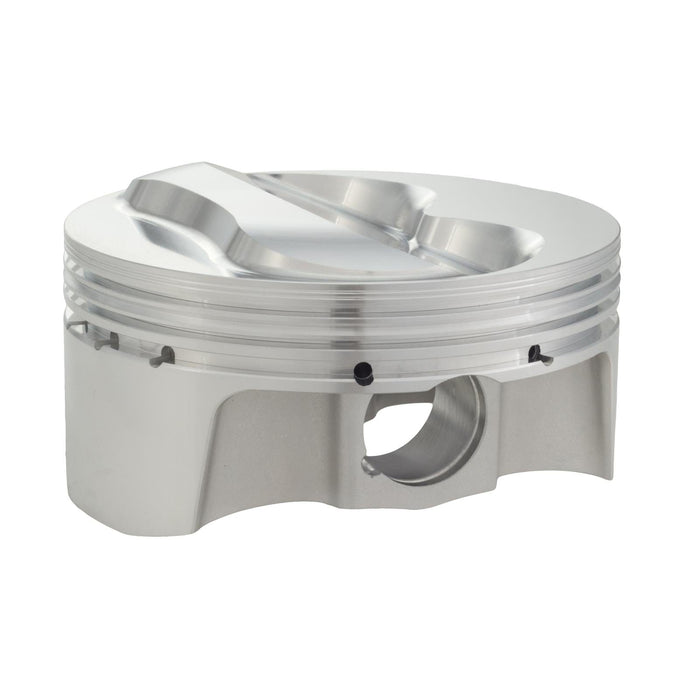

CP Pistons Honda K-Series Piston and Ring Kits SC71422XA
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: SC71422XA
Part Type: Pistons
Product Line: CP Pistons Honda K-Series Piston and Ring Kits
Automotive Fittings Part Number: CNN-SC71422XA
Piston Rings Included: Yes
Bore (in.): 3.425 in.
Bore (mm): 87.000mm
Stroke: 86.00mm
Engine Stroke Type: Stock
Rod Length: 139.000mm
Piston Style: Dome, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.181 in.
Dome Height (in.): 0.345 in.
Piston Head Volume (cc): -11.60cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Second Ring Thickness: 1.2mm
Oil Ring Thickness: 2.8mm
Oil Ring Tension: Low
Remanufactured: No
Quantity: Sold individually.
Notes: Can be used in turbo, supercharger, nitrous applications or naturally aspirated.
Description:
CP Pistons Honda K-Series piston and ring kits are as good as they come. Founded to service the needs of those with the desire to build engines of the highest quality and technology, CP Pistons uses proprietary tooling, dedicated cutters, and unique fixtures, along with state-of-the-art equipment to produce superior pistons that will not compromise your expectations. Their climate-controlled inspection department is the most advanced in the industry and is outfitted with computerized electronic equipment specifically designed for their needs. Each piston is engineered using sophisticated computer modeling for optimum designs, while their 5-axis machining capability enables them to create pistons for any application.
Additional features include:
* Full radius dome designs
* Some pistons are suitable for turbo, nitrous oxide, and supercharged engines
* Specific X-designated part numbers incorporate an X-style forging for additional strength, durability, and weight reduction
* Available in standard or oversized
* Deep valve relief depth accommodates high-lift camshaft
* Made for +1mm valve sizes
* Custom skirt cam and barrel design
* Accumulator grooves
* High-strength aluminum forgings
* High performance rings
* Fully CNC-machined and balanced to +/-1 gram
* Wrist pins included at no additional cost
* Double pin oilers, force fed oil ring
* Pick lock grooves for easy lock removal
* Pin fitting included
