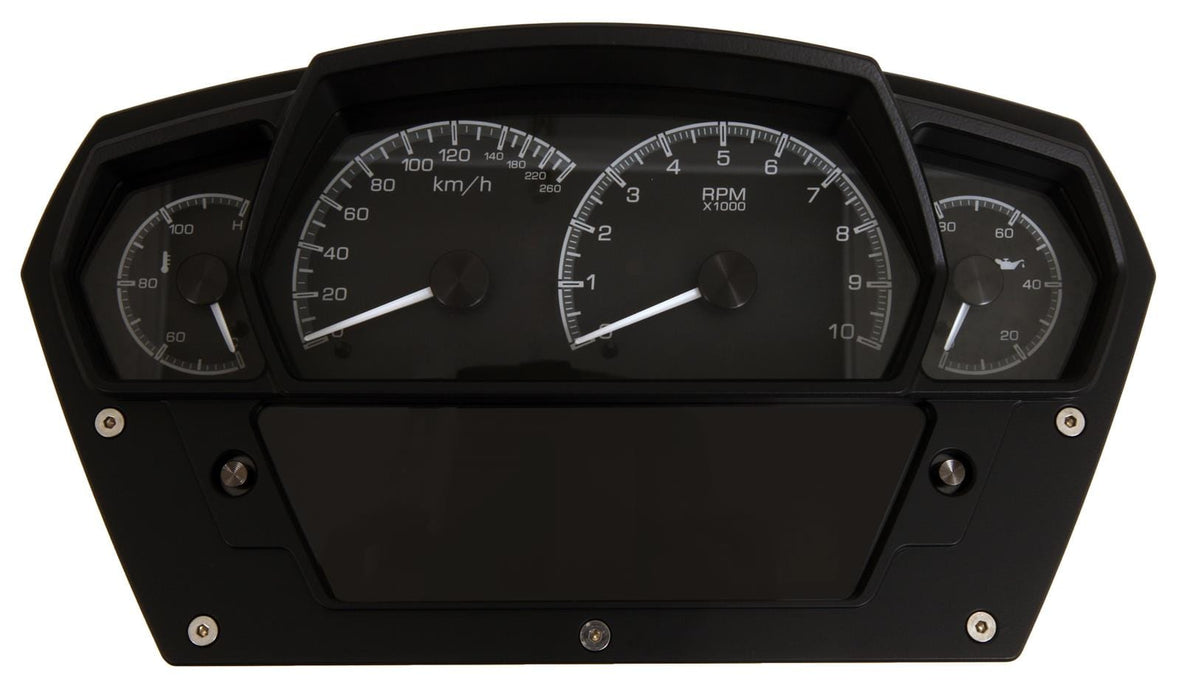

Dakota Digital HDX Series Universal Competition Analog Gauge Kits MDX-2100-K

Brand: Dakota Digital
Manufacturer's Part Number: MDX-2100-K
Part Type: Gauge Kits and Instrument Clusters
Product Line: Dakota Digital HDX Series Universal Competition Analog Gauge Kits
Automotive Fittings Part Number: DAK-MDX-2100-K
Gauge Style: Analog
Gauge Face Color: Black
Gauge Number Color: White/Multicolor
Tachometer Included: Yes
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: Yes
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Pointer Color: White/Multicolor
Bezel Color: Black powdercoated
Illuminated: Yes
Warning Lights Included: Yes
Gauge Panel Included: No
Gauge Pod Included: No
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a kit.
Notes: Dimensions 10.75 in. x 6.00 in. Indicators include: turn signals, high beam, check engine, and parking brake. Also includes cruise control, automatic transmission gear position, 4x4, and wait to start when vehicle is equipped. Message center has odometer, dual trip odometer, clock, estimated range/miles to empty, 0-60 timer, 1/8 mile and 1/4 mile timer/speed, high-speed, and high-rpm recall.
Description:
Dakota Digital HDX Series universal competition analog gauge kits are a race-oriented instrument system that really works. The billet aluminum faceplate is powdercoated flat black and features intricate machining to create a unique, multi-layered look. These kits are available in four or six analog gauge layouts, with your choice of black or silver alloy gauge-face styling. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable) and a red, settable warning light for each gauge. They're available in either standard or metric versions. Set your project apart from the masses with Dakota Digital HDX Series universal competition analog gauge kits.

Features, items, and specs include:

* Thin-film-transistor (TFT) displays provide high-contrast for greater visibility
* Dual TFT message centers can be driver-configured for maximum awareness
* Over 30 independent illumination colors for gauge readings, needles, and message centers
* 12 factory preset color themes
* Calibration and custom settings can be done via built-in, capacitive-touch buttons, or free Bluetooth app available for Apple and Android devices
* Needle hubs are black, nickel-plated spun-aluminum to match the buttons
* Central control box mounting simplified via vehicle-harness sourced signals and supplied, solid-state sending units connecting cleanly to their respective terminals
* Mounting hardware
