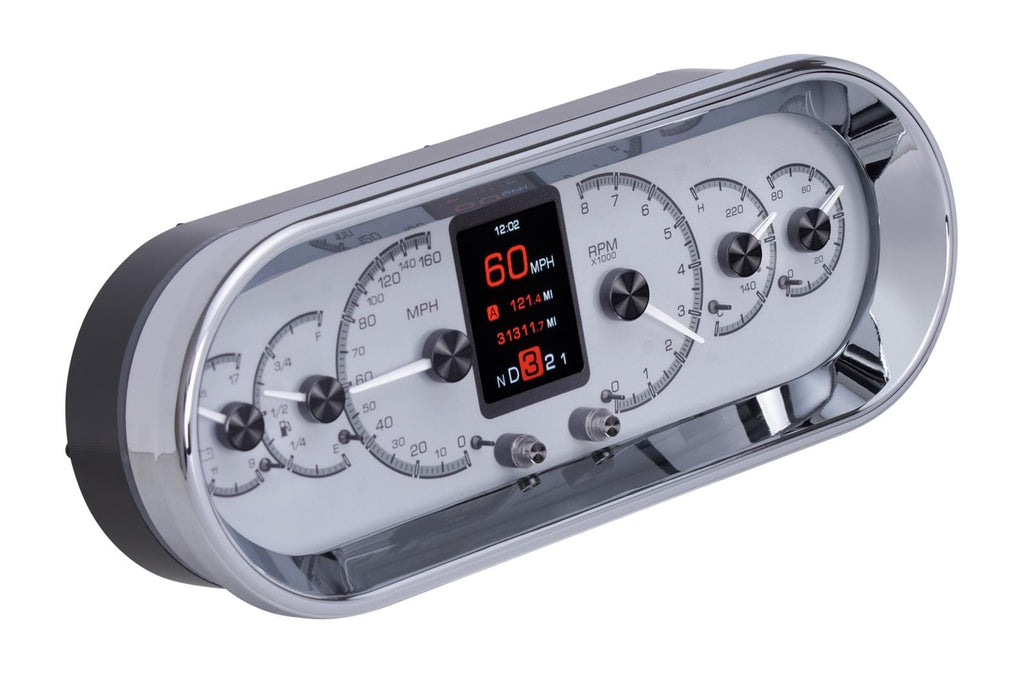

Dakota Digital HDX Series Universal Rounded Rectangle Analog Gauge Kits HDX-2018-S

Brand: Dakota Digital
Manufacturer's Part Number: HDX-2018-S
Part Type: Gauge Kits and Instrument Clusters
Product Line: Dakota Digital HDX Series Universal Rounded Rectangle Analog Gauge Kits
Automotive Fittings Part Number: DAK-HDX-2018-S
Gauge Style: Analog
Gauge Face Color: Silver
Gauge Number Color: Black/Multicolor
Tachometer Included: Yes
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: Yes
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Pointer Color: White/Multicolor
Bezel Color: Chrome
Illuminated: Yes
Warning Lights Included: Yes
Gauge Panel Included: No
Gauge Pod Included: No
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a kit.

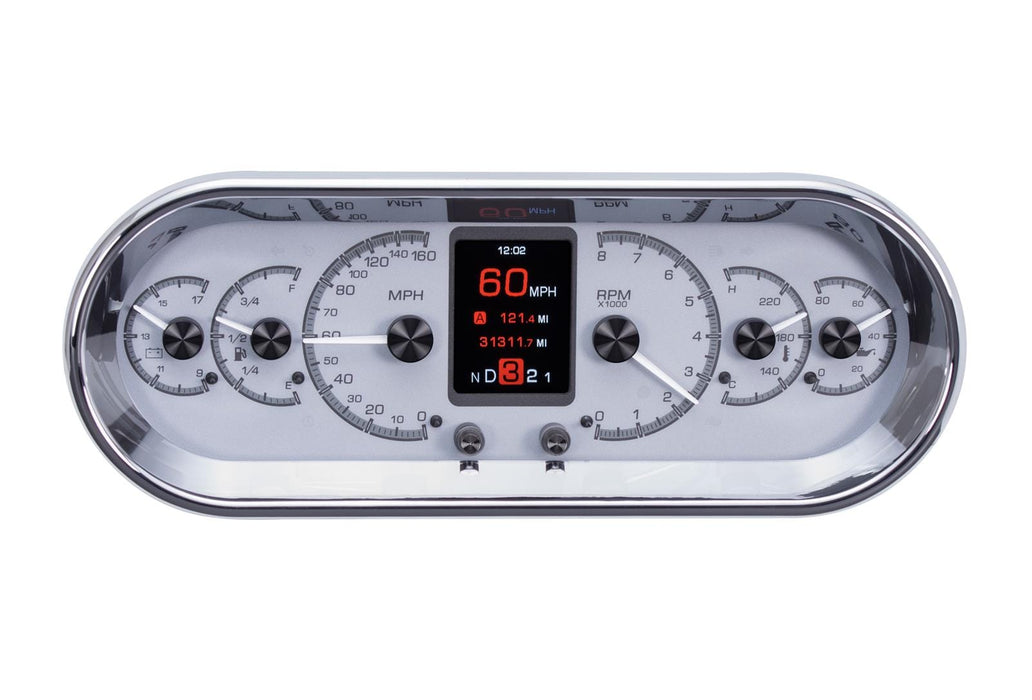

Notes: Rounded rectangle gauge cluster is 11.4 in. wide x 4.4 in. tall. Indicators include: turn signals, high beam, check engine, and parking brake. Also includes cruise control, automatic transmission gear position, 4x4, and wait to start when vehicle is equipped. Message center has odometer, dual trip odometer, clock, estimated range/miles to empty, 0-60 timer, 1/8 mile and 1/4 mile timer/speed, high-speed, and high-rpm recall.
Description:

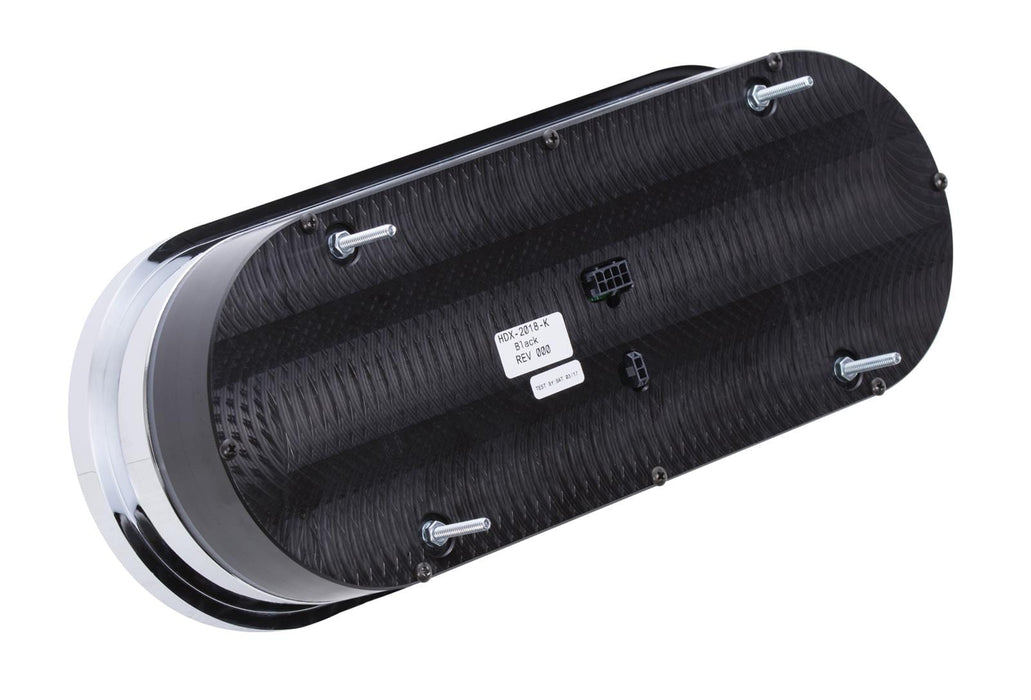

Dakota Digital HDX Series universal rounded rectangle analog gauge kits offer a beautiful one-piece solution for your instrument panel needs. Total depth behind the dash is just 2 in.--a real feat considering the six analog gauge readings plus a large, full-color TFT message center. Integrated capacitive touch switches and supplied sending units, plus BIM Series compatibility makes this package your instrumentation solution. Housing and integrated front bezel are billet aluminum and show chrome plated. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable) and a red, settable warning light for each gauge. They're available in either standard or metric versions. Craft the perfect, one-off dashboard with Dakota Digital HDX Series universal rounded rectangle analog gauge kits.

Features, items, and specs include:

* Thin-film-transistor (TFT) display provides high-contrast for greater visibility
* Large TFT message center can be driver-configured for maximum awareness

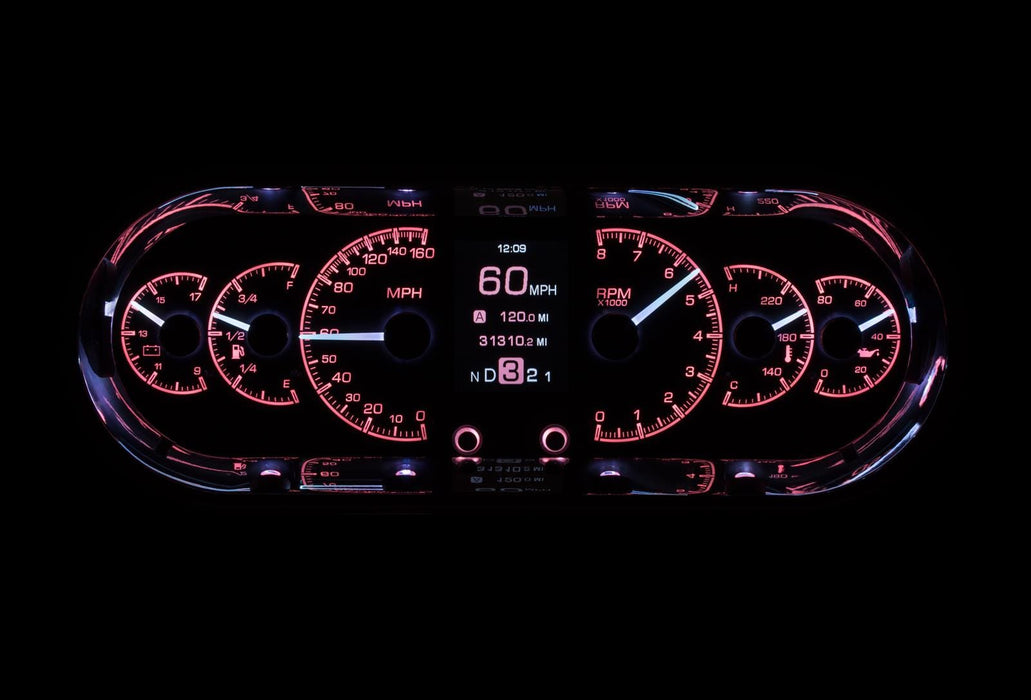

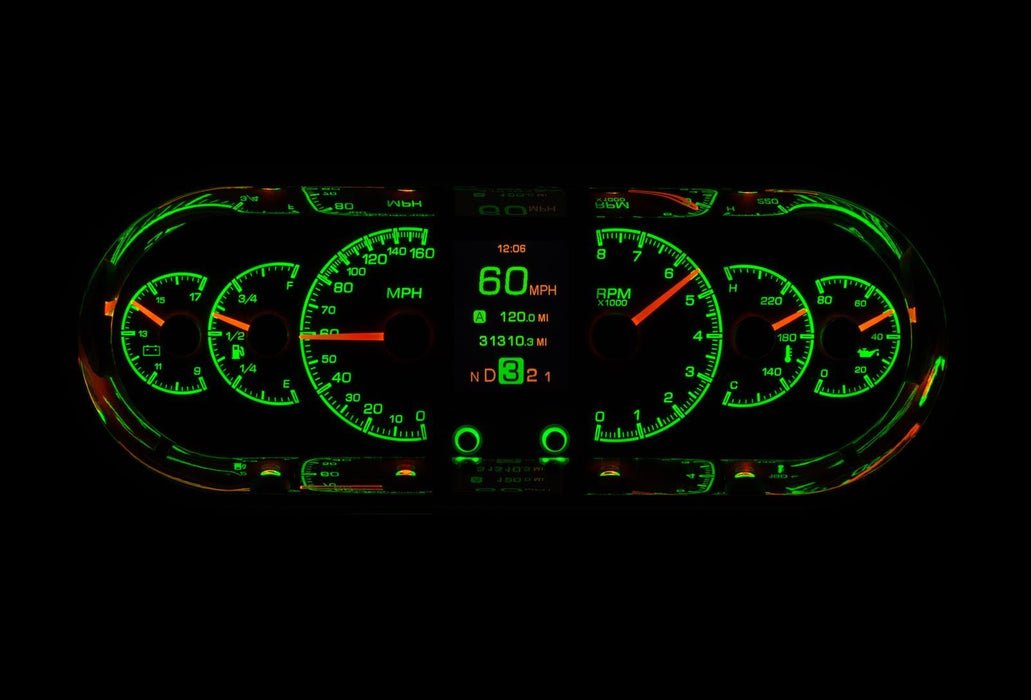

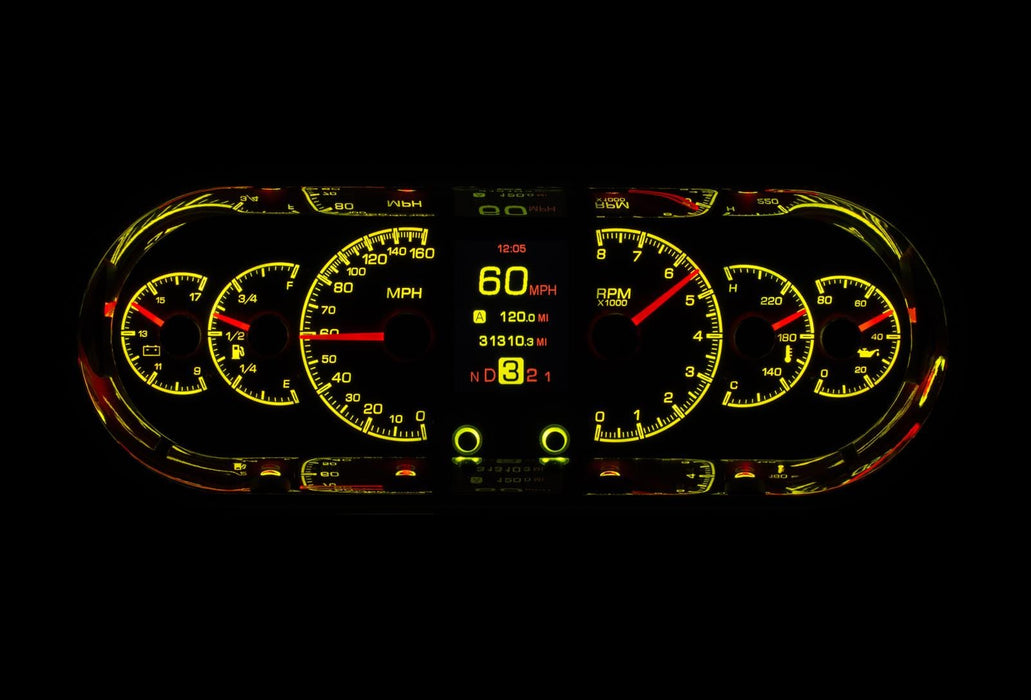

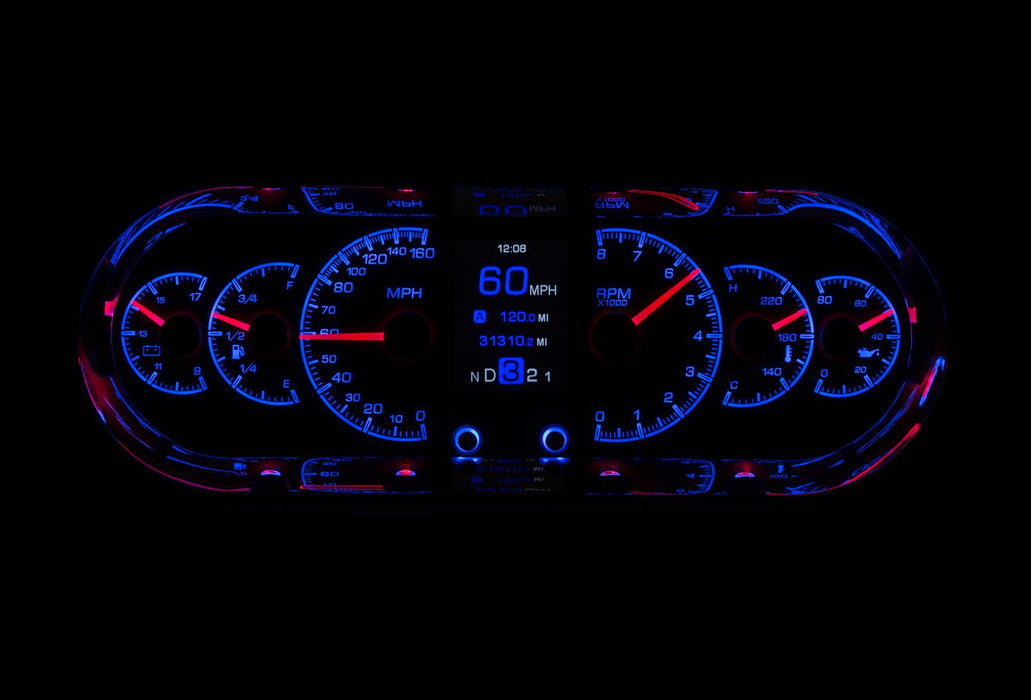

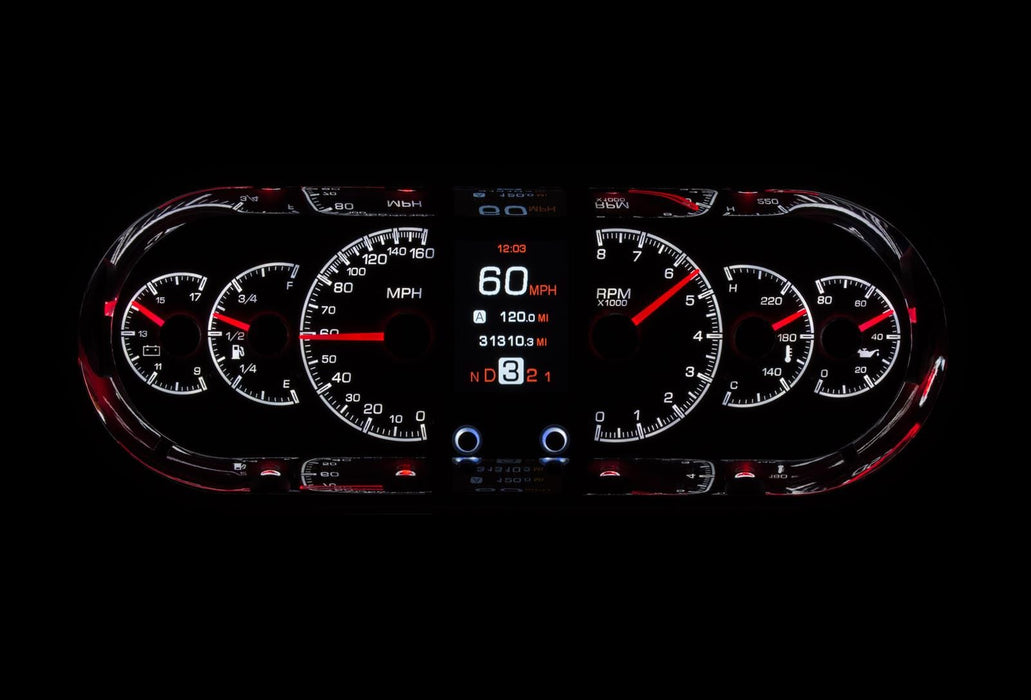

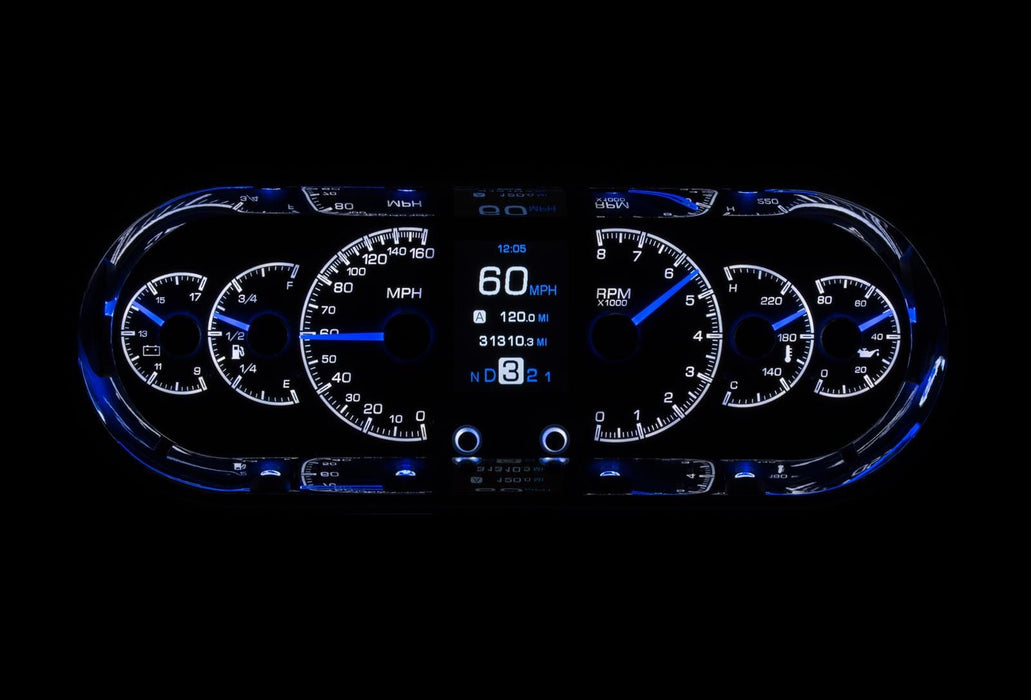

* Over 30 independent illumination colors for gauge readings, needles, and message center
* 12 factory preset color themes
* Calibration and custom settings can be done via built-in, capacitive-touch buttons, or free Bluetooth app available for Apple and Android devices
* Needle hubs are black, nickel plated, spun aluminum to match the buttons
* Central control box mounting simplified via vehicle harness sourced signals and supplied solid-state sending units connecting cleanly to their respective terminals
* Mounting hardware
