Dakota Digital VHX Series Multi-Level Elliptical Analog Gauge Kits VHX-1016-C-B
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: VHX-1016-C-B
Part Type: Gauge Kits and Instrument Clusters
Product Line: Dakota Digital VHX Series Multi-Level Elliptical Analog Gauge Kits
Automotive Fittings Part Number: DAK-VHX1016CB
Gauge Style: Analog
Gauge Face Color: Carbon fiber/Luminescent blue
Gauge Number Color: White/Blue
Tachometer Included: Yes
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: Yes
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Pointer Color: White/Blue
Bezel Color: Chrome
Illuminated: Yes
Warning Lights Included: Yes
Gauge Panel Included: No
Gauge Pod Included: No
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a kit.

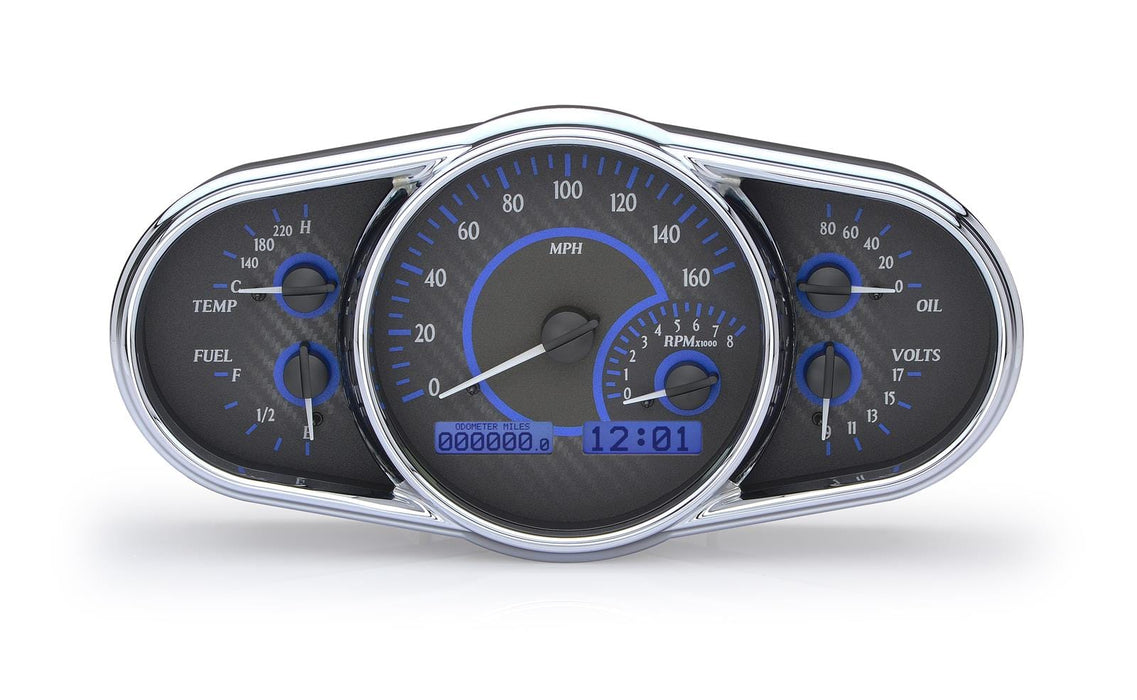

Notes: Elliptical gauge cluster measures 10.125 in. wide x 5 in. tall. Indicators include: turn signals, high beam, check engine, and parking brake. Also includes cruise control, automatic transmission gear position, 4x4, and wait to start when vehicle is equipped. Message center has odometer, trip odometer, clock, gear indicator, 0-60 timer, quarter-mile timer/speed, high-speed, and high-rpm recall.
Description:

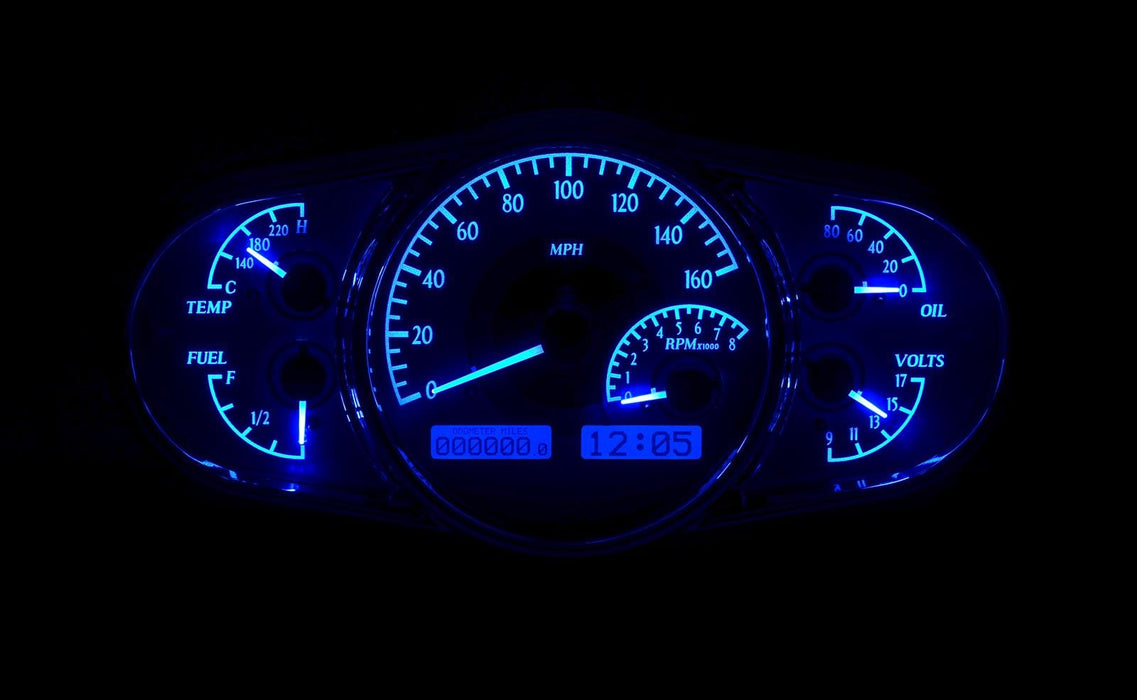

Dakota Digital Multi-Level Elliptical VHX Series analog gauge kits find themselves at home in many custom-built dashboards. A unique stepped bezel gives a one-of-a-kind, 3-dimensional look that brings out the quality of the show-chrome plating--and the 20 various gauge displays include everything from speeds and engine levels … to lights and time. The control module and all required sensors are included. Additionally, the gauge clusters feature fully lit needles, backlit faces, solid-state sensors for accuracy, highly visible LCD message centers, user-customizable display feedback, and more. It's all packaged in a triple chrome plated, machined aluminum gauge housing--wow! Dakota Digital offers your choice of colors for the background face, numbers, and numeric illumination.
