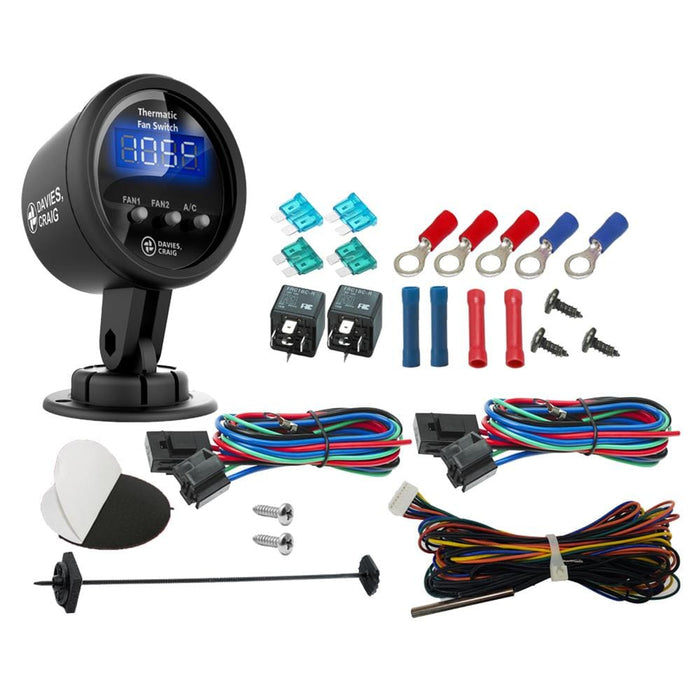

Davies Craig Electric Water Pump and Fan Controllers DC-0500
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: DC-0500
Part Type: Fan Switches
Product Line: Davies Craig Electric Water Pump and Fan Controllers
Automotive Fittings Part Number: DCW-DC-0500
UPC: 9311669005000
Thermal Switch Style: Fan control kit
Sending Unit Style: Radiator probe
Sending Unit Included: Yes
Fan Quantity: Single/Dual
Adjustment Range (degrees F): 41-230 degrees F
Relay Included: Yes
Wiring Harness Included: Yes
Manual Override Switch Included: Yes
Air Conditioning Relay Included: No
Quantity: Sold as a kit.
Description:

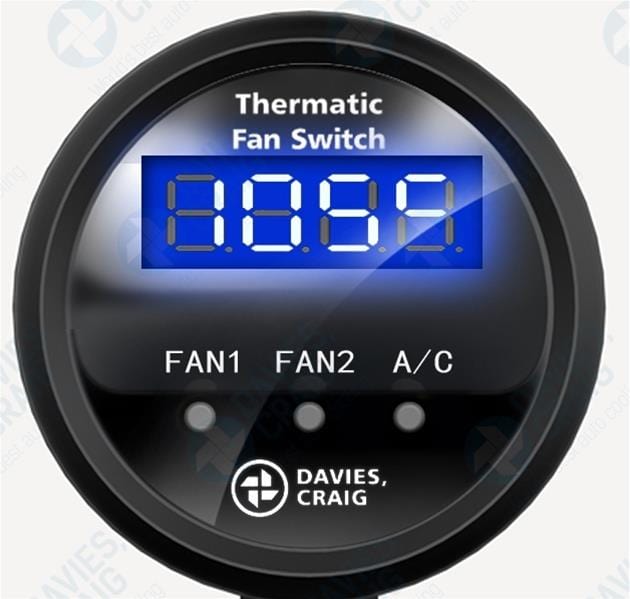

Davies Craig electric water pump and fan controllers manage the operation of your chosen EWP by varying the speed of your pump in response to coolant temperature, while also managing control of your electric engine fan. These unique LCD controllers are enhanced with many features that help you set target temperatures to improve fuel efficiency, reduce heat soak, and increase power.
Specs and features of Davies Craig digital controllers:
* Black and white numerical screen
* For 12 and 24 V electrical water pumps
* Celsius or Fahrenheit display option
* Select any set temperature range from 104 degrees F (40 degrees C) to 230 degrees F (110 degrees C)
* Automatic fan cut-in temperature--once engine has reached 5.4 degrees F (3 degrees C) above the targeted (set) temperature
* Set/targeted temperature memory
* Override feature to assist bleeding EWP and fail-safe
* Input voltage display
* Compatible with billeted-style electric water pumps
* Indicators: Temperature, power, EWP, test, fan, high/low temperature, voltage, above set temperature with alarm
* Warning alarms:
-- Plus 14 degrees F (10 degrees C) set/target temperature
-- Under temperature 104 degrees F (40 degrees C) after 5 minutes
-- Temperature sensor error
-- Over or under voltage
-- EWP error
