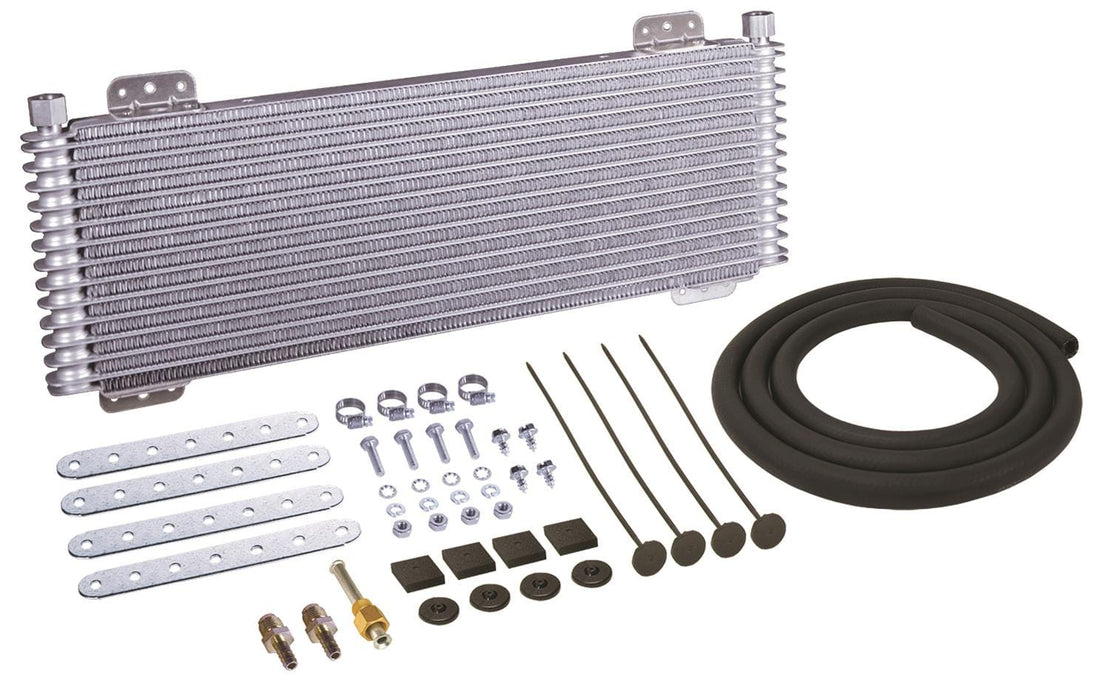

Derale 9500 Series Fin and Plate Transmission Coolers 13633
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 13633
Part Type: Fluid Coolers
Product Line: Derale 9500 Series Fin and Plate Transmission Coolers
Automotive Fittings Part Number: DER-13633
UPC: 083277136337
Fluid Cooler Type: Transmission
Overall Height (in.): 8.00 in.
Overall Width (in.): 22.75 in.
Overall Thickness (in.): 1.25
Cooler Construction: Tube and fin
Fluid Cooler Inlet Size: 5/8 in.-18
Fluid Cooler Outlet Size: 5/8-18 in.
Inlet Attachment: Female threads
Outlet Attachment: Female threads
Cooler Material: Aluminum
Fan Included: No
Number of Cooling Rows: 13
Core Width (in.): 22.75 in.
Core Thickness (in.): 1.25 in.
Cooler Color: Natural
Quantity: Sold as a kit.
Notes: Rated up to 34,000 GVW.
Description:
Very popular with original equipment manufacturers for use on their towing applications, Derale 9500 Series fin and plate transmission coolers feature strong furnace-brazed construction embossed turbulators which maximize heat transfer while also minimizing pressure drop. These units are perfect for light- to medium-duty use and occasional towing. They greatly extend transmission life by preventing heat-related transmission failures, and improve shifting performance. The coolers are built with 5/8 in. inverted flare inlets.
Additional detais:
* 13 row cooler design
* Turbulators maximize cooling and minimize pressure drop
* 3/8 in. hose barb adapters included
* BTU: 33000
* Fluid capacity: 20 oz.
* All Derale coolers are rated at 250 psi working pressure and 300 psi burst strength
