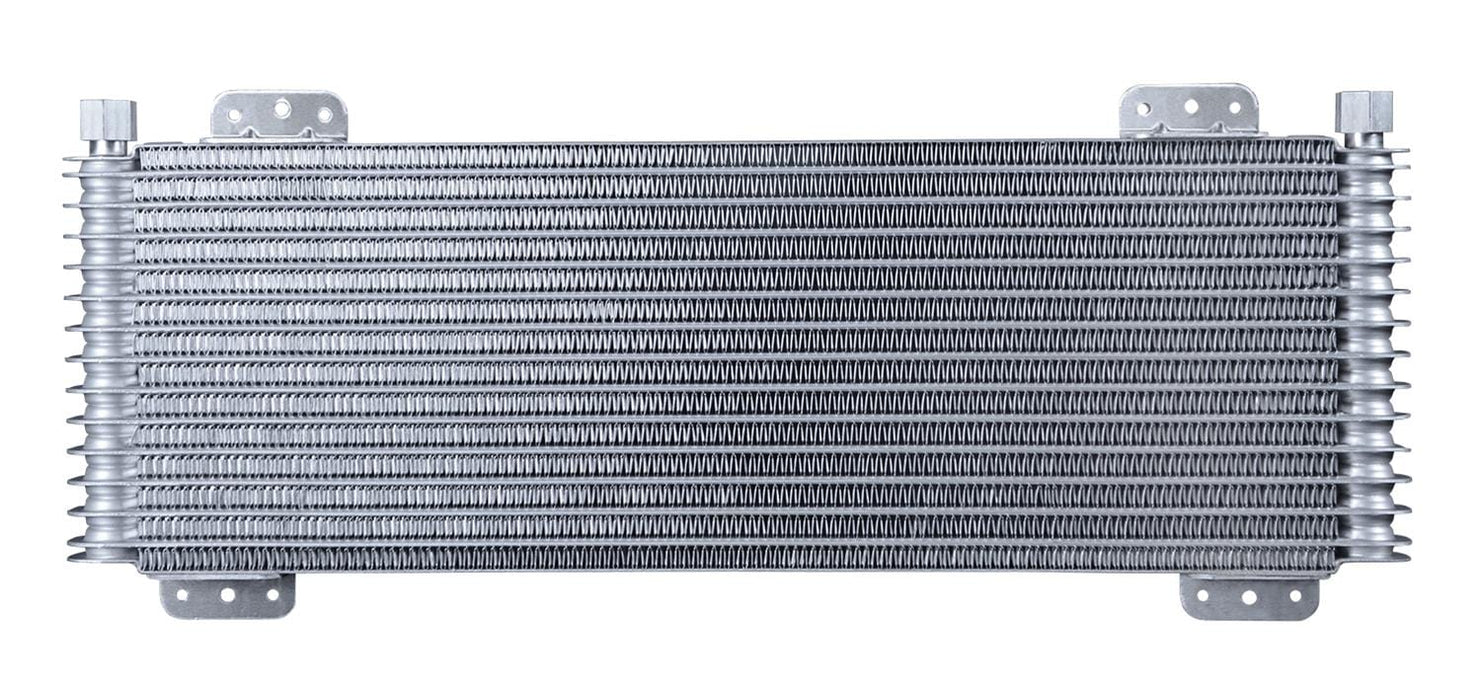

Derale 9500 Series Fin and Plate Transmission Coolers 33633
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 33633
Part Type: Fluid Coolers
Product Line: Derale 9500 Series Fin and Plate Transmission Coolers
Automotive Fittings Part Number: DER-33633
UPC: 083277336331
Fluid Cooler Type: Transmission

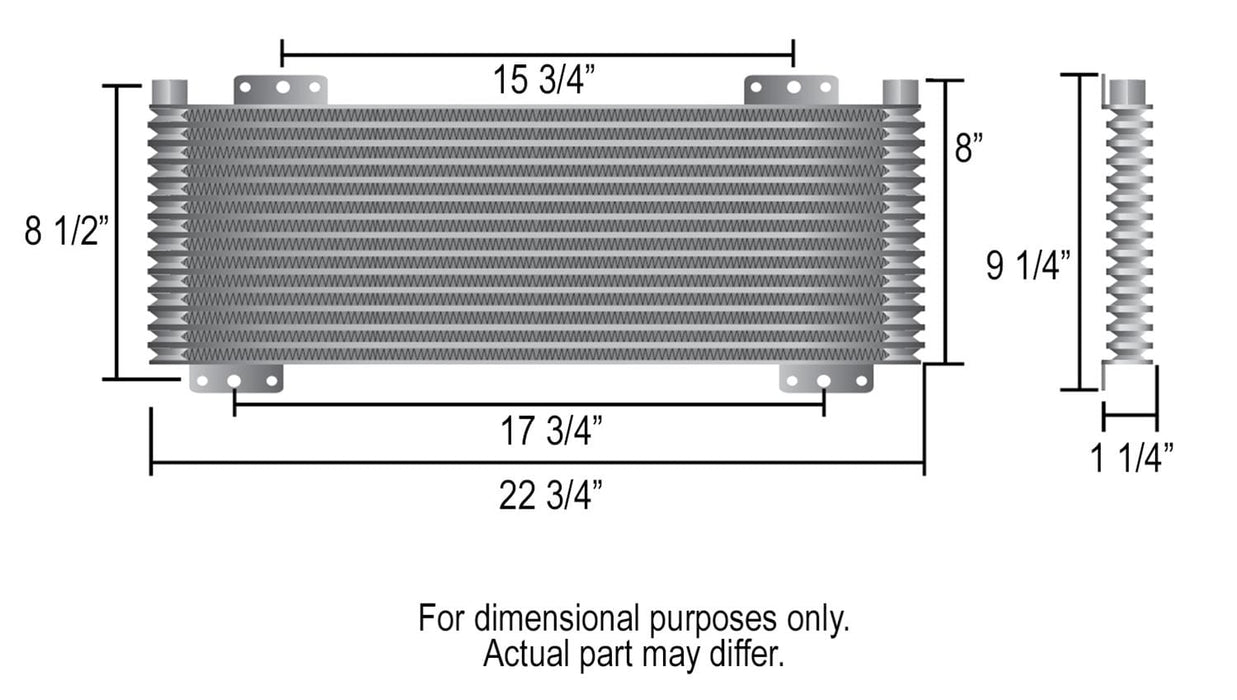

Overall Height (in.): 9.25 in.
Overall Width (in.): 22.75 in.
Overall Thickness (in.): 1.25
Cooler Construction: Plate
Fluid Cooler Inlet Size: 0.625 in.
Fluid Cooler Outlet Size: 0.625 in.
Inlet Attachment: Inverted flare
Outlet Attachment: Inverted flare
Cooler Material: Aluminum
Fan Included: No
Number of Cooling Rows: 13
Quantity: Sold individually.
Description:
Very popular with original equipment manufacturers for use on their towing applications, Derale 9500 Series fin and plate transmission coolers feature strong furnace-brazed construction embossed turbulators which maximize heat transfer while also minimizing pressure drop. These units are perfect for light- to medium-duty use and occasional towing. They greatly extend transmission life by preventing heat-related transmission failures, and improve shifting performance. The coolers are built with 5/8 in. inverted flare inlets.
Additional detais:
* 13 row cooler design
* Turbulators maximize cooling and minimize pressure drop
* 3/8 in. hose barb adapters included
* BTU: 33000
* Fluid capacity: 20 oz.
* All Derale coolers are rated at 250 psi working pressure and 300 psi burst strength
