Derale High-Output Dual RAD Fan and Shroud Kits 16831
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 16831
Part Type: Fans, Electric
Product Line: Derale High-Output Dual RAD Fan and Shroud Kits
Automotive Fittings Part Number: DER-16831
UPC: 083277168314
Puller: Yes
Pusher: No
Fan Diameter (in.): 11.00 in.
Fan CFM Range: 3,700-3,799
Maximum Fan CFM: 3,750 cfm
Fan Quantity: Dual
Electric Motor Type: Brushed
Height (in.): 15.500 in.
Width (in.): 24.000 in.
Thickness (in.): 4.000
Number of Blades: 5 blades
Blade Material: Plastic
Blade Color: Black
Shroud Color: Natural
Shroud Material: Aluminum
Amp Draw: 37.40 amps
Air Conditioning Relay Included: No
Mounting Brackets Included: Yes
Mounting Hardware Included: Yes
Remanufactured: No
Quantity: Sold individually.
Description:

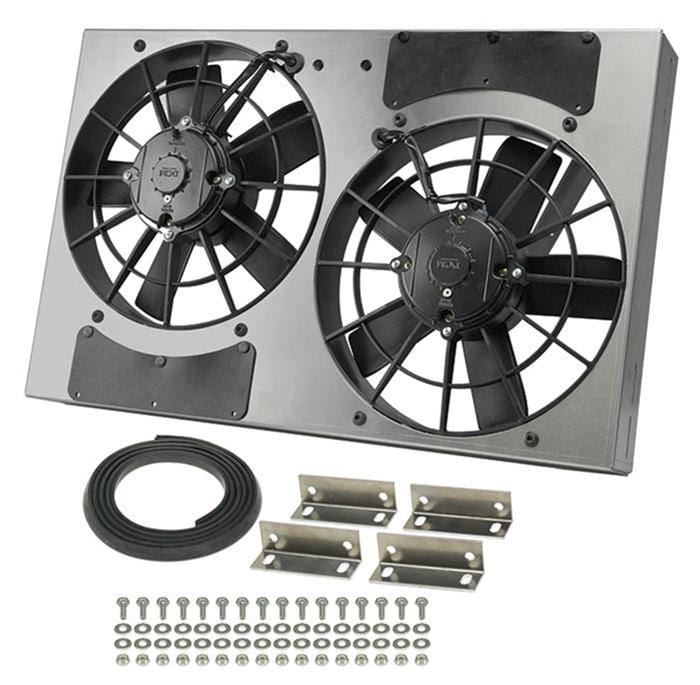

The Derale 16831 high-output electric fan shroud kit is designed to provide the optimum cooling performance afforded by dual-fan systems in a package the size of single shrouded fans. Measuring 24 inches wide and 15.5 inches tall, the natural, non-finished aluminum shroud offers a flexible fit and the freedom to polish, paint, or anodize for a unique look. The kit features twin IP-68 11-inch Derale fans powered by 265-watt motors that combine to deliver maximum air flow of 3,750 cfm. Illustrated installation instructions and a complete mounting kit are included.
