Derale High-Output Single RAD Fan and Shroud Kits 16823
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 16823
Part Type: Fans, Electric
Product Line: Derale High-Output Single RAD Fan and Shroud Kits
Automotive Fittings Part Number: DER-16823
UPC: 083277168239
Puller: Yes
Pusher: No
Fan Diameter (in.): 17.00 in.
Fan CFM Range: 2,400-2,499
Maximum Fan CFM: 2,400 cfm
Fan Quantity: Single
Electric Motor Type: Brushed

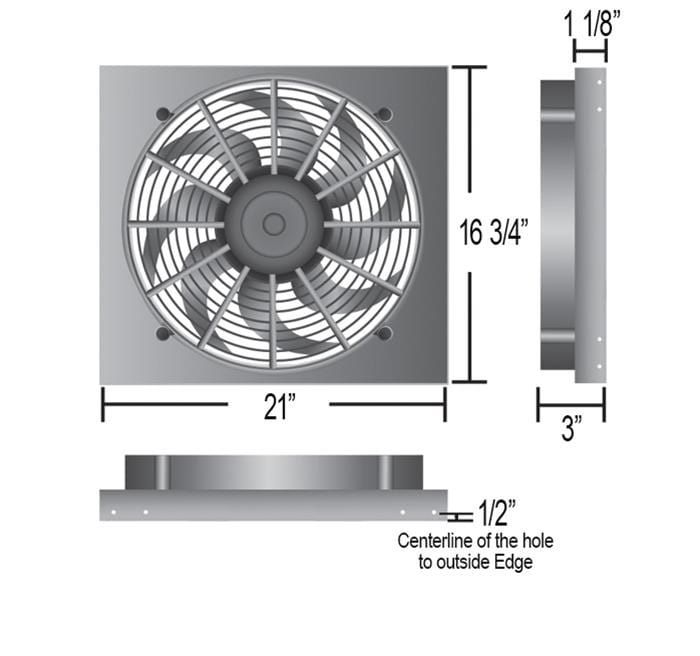

Height (in.): 16.750 in.
Width (in.): 21.000 in.
Thickness (in.): 3.000
Number of Blades: 11 blades
Blade Material: Plastic
Blade Color: Black
Shroud Color: Natural
Shroud Material: Aluminum
Amp Draw: 23.50 amps
Air Conditioning Relay Included: No
Mounting Brackets Included: Yes
Mounting Hardware Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: 2-speed motor, low speed draws 17.4 amps at 1,800 cfm, high speed draws 23.5 amps at 2,400 cfm.
Description:

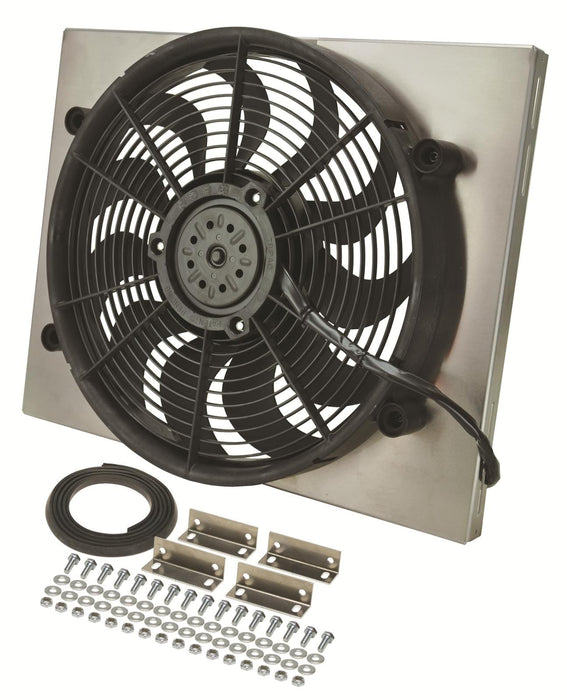

Derale high-output single RAD fan and shroud kits eliminate the need for fuel and horsepower-robbing, belt-driven fans. These primary cooling fans are designed to provide maximum performance at high static-pressure loads for highly effective cooling! Their ultra-quiet patented skewed-blade design and 265 watt 2-speed motors allow these fans to smoothly pull large amounts of air to your engine. RAD fan shrouds are constructed from aircraft-quality aluminum with a natural satin finish that can be painted, anodized, or polished to your liking. Derale Performance high-output single RAD fan and shroud kits come complete with mounting hardware and instructions.
