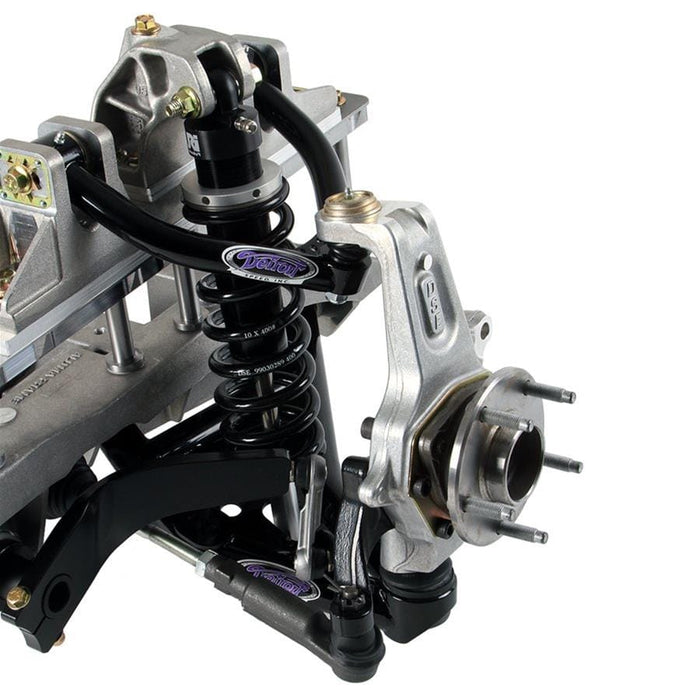

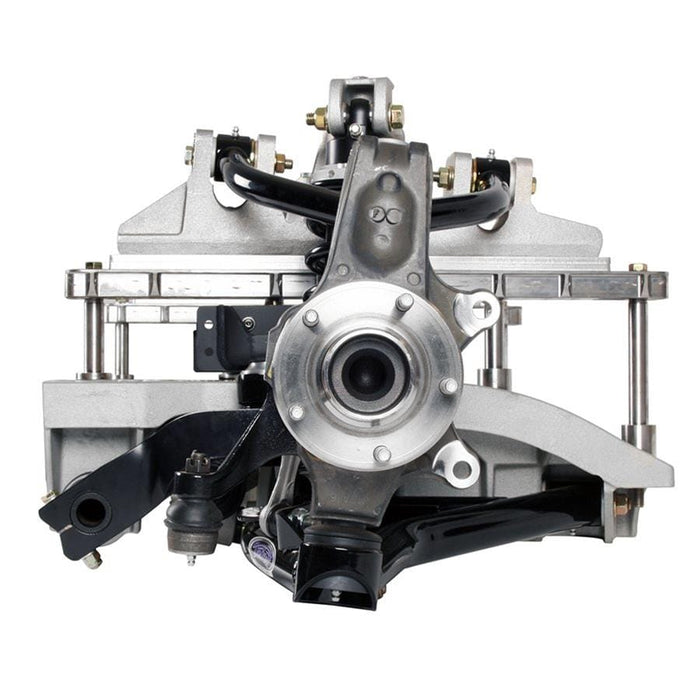

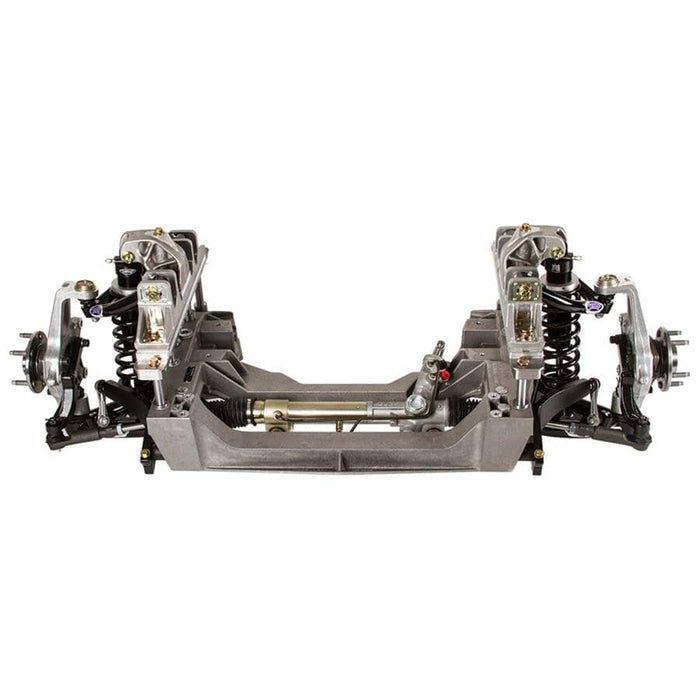

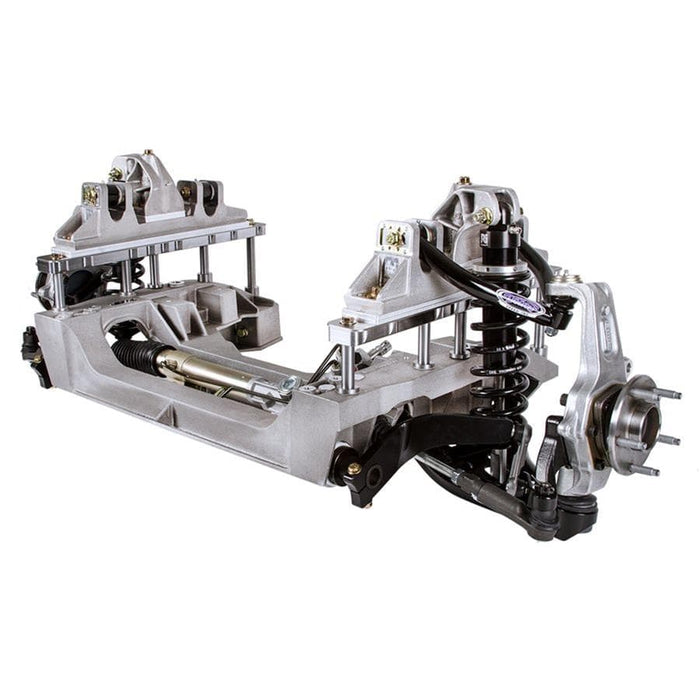

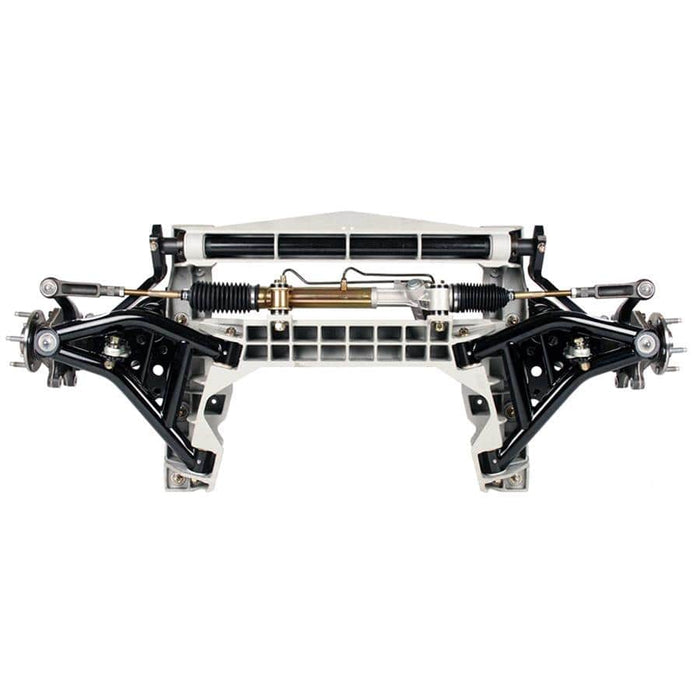

Detroit Speed Aluma-Frame Front Suspension Packages 032051-SDS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 032051-SDS
Part Type: Front Suspension Packages
Product Line: Detroit Speed Aluma-Frame Front Suspension Packages
Automotive Fittings Part Number: DSR-032051-SDS
UPC: 090127167045
Wheel Bolt Pattern: 5 x 4 3/4 in.
Crossmember Included: Yes
Crossmember Material: Aluminum
Crossmember Color: Natural
Welding Required: Yes
Front Spindles Included: Yes
Spindle Material: Forged aluminum
Spindle Finish: Natural
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Upper Ball Joints Included: Yes
Lower Ball Joints Included: Yes
Rack and Pinion Included: Yes
Steering Rack Type: Hydraulic power assist
Rack Material: Aluminum
Rack Color: Natural
Shocks Included: Yes
Shock Type: Single adjustable coilover
Coilover Springs Included: Yes
Coilover Spring Rate (lbs/in): 400 lbs./in.
Spring Finish: Black
Disc Brake Kit Included: No
Front Rotor Included: No
Front Caliper Included: No
Brake Pads Included: No
Sway Bar Included: Yes
Center Link Included: No
King Pins Included: No
King Pin Bearings Included: No
Pitman Arm Included: No
Idler Arm Included: No
Tie Rod Sleeves Included: No
Inner Tie Rod Ends Included: Yes
Outer Tie Rod Ends Included: Yes
Quantity: Sold as a kit.
Notes: Requires 17 in. or larger diameter wheels and C6 Corvette brakes.
Description:
Detroit Speed Aluma-Frame front suspension packages feature an all-aluminum subframe using Detroit Speed's unique suspension geometry with 6 in. of suspension travel for the ultimate in ride and performance. Order the model recommended for your vehicle.
Product features:
* Unique cast aluminum cradle and mounting components, resulting in a high strength-to-weight ratio
* Tubular upper and lower control arms
* Detroit-tuned rack and pinion steering
* DSE/JRi aluminum coilover shocks with Detroit-tuned valving available in fixed valve, single-adjustable, double-adjustable, or remote canister double-adjustable versions
* Splined integrated-style anti-roll bar
* Detroit Speed's Speed-LIGN (patent pending) caster/camber adjusters allow a wide range of adjustments to be made precisely and quickly without any additional shims
* Utilizes aluminum uprights and hub packs
* Retains stock frame rails and inner fenders, and only requires a small amount of fabrication for installation
* Engine mount kits available for Ford small block Windsor engines, Ford FE big block engines, Ford 4.6L, 5.4L, and Coyote 5.0L modular engines, including the Boss 302, as well as GM LS engines
* Spanner Tool for easy shock adjustments
* Forged Detroit Speed spindle
* Composite anti-roll bar bushings
