Detroit Speed Anti-Squat Kits 040119DS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 040119DS
Part Type: Control Arm Mounts
Product Line: Detroit Speed Anti-Squat Kits
Automotive Fittings Part Number: DSR-040119DS
UPC: 90127139202
Bracket Material: Steel
Bracket Color: Black
Mounting Style: Bolt-on
Hardware Included: Yes
Quantity: Sold as a kit.
Description:

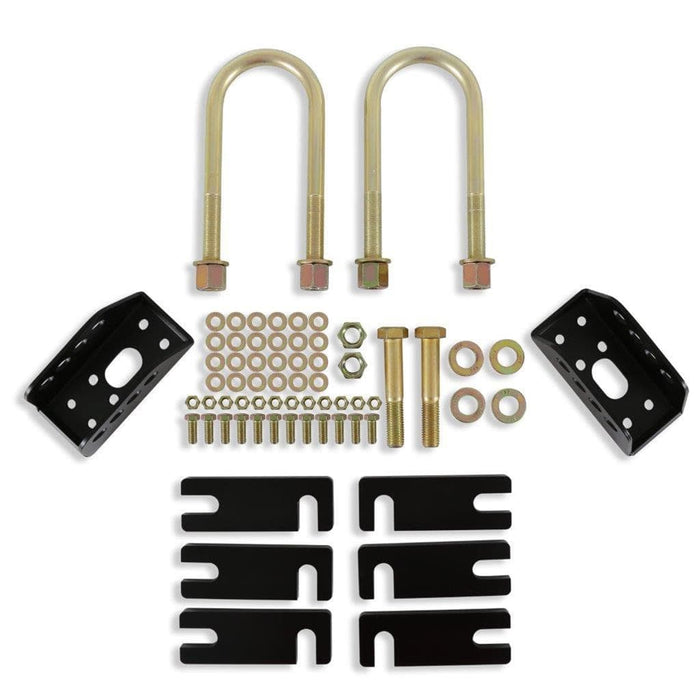

Detroit Speed anti-squat kits provide instant center and pinion angle adjustment on the rear suspension of 1967-72 GM C10 trucks (fits factory rear suspension with truck arms and coil springs). The front truck arm relocation brackets provide four pivot point options to adjust the instant center and tune anti-squat for improved traction and acceleration exiting corners. Pinion angle/lowering spacers provide ride height and pinion angle adjustability. The slotted design of the pinon spacers allows for easy installation.
Features:

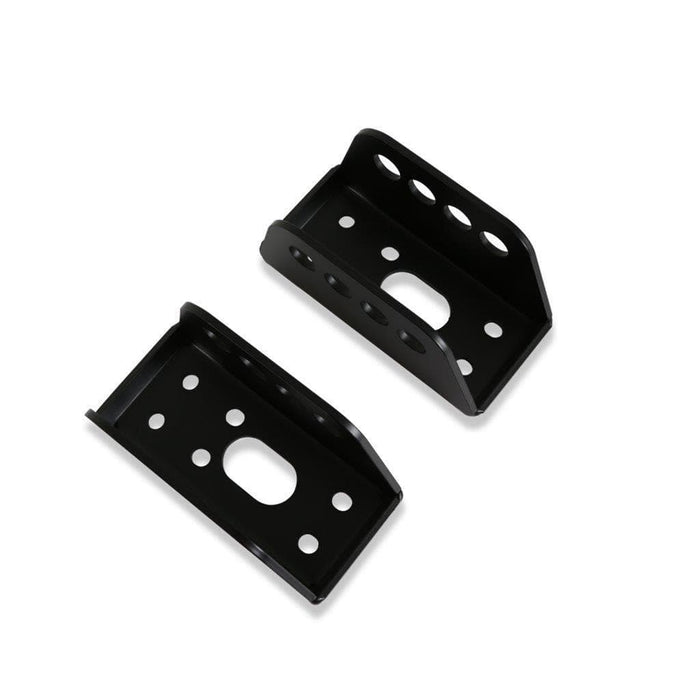

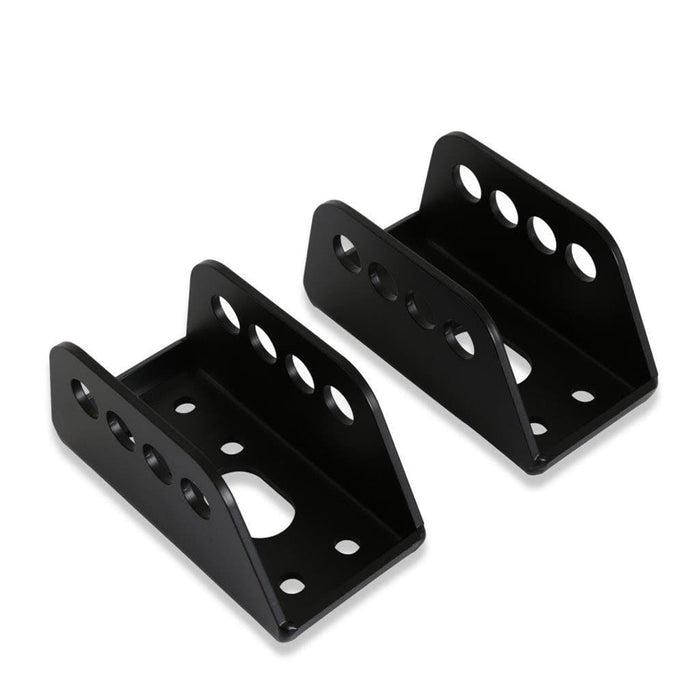

* Truck arm relocation brackets feature four mounting locations to adjust instant center for improved traction and acceleration
* Fits 1967-72 C10 trucks that came from the factory with truck arms and coil spring rear suspension

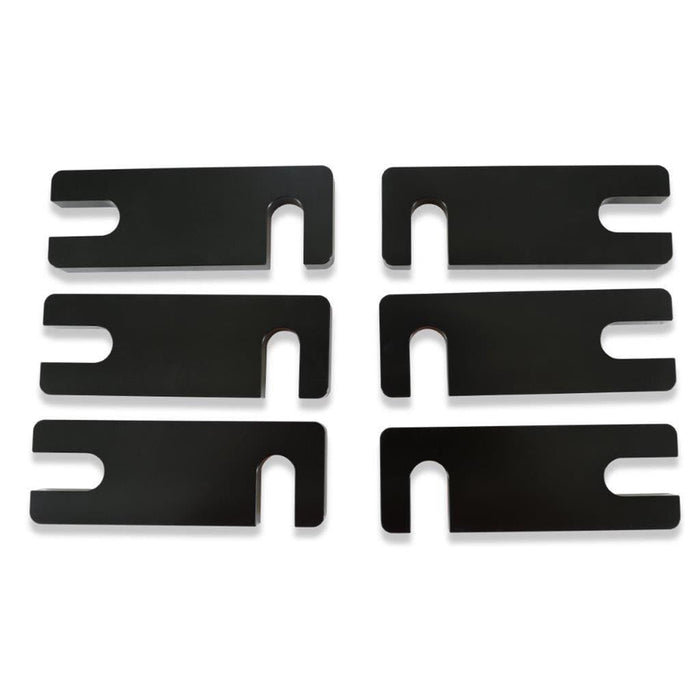

* Includes four 1-degree angled pinion spacers and two flat spacers, hard black anodized for corrosion resistance
* Pinion angle adjustment range: +2 degrees to -2 degrees
* 1/2 in. lowering per spacer, combine for a range of 1/2 in. to 1 1/2 in.

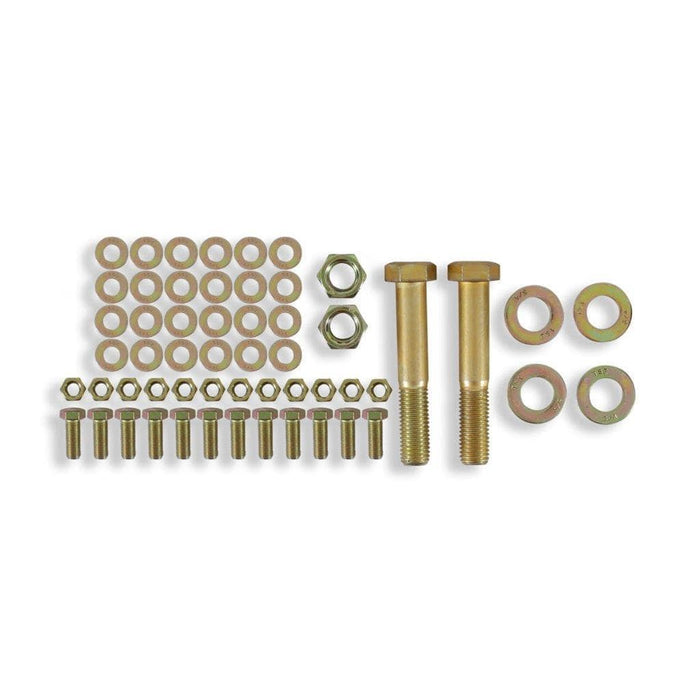

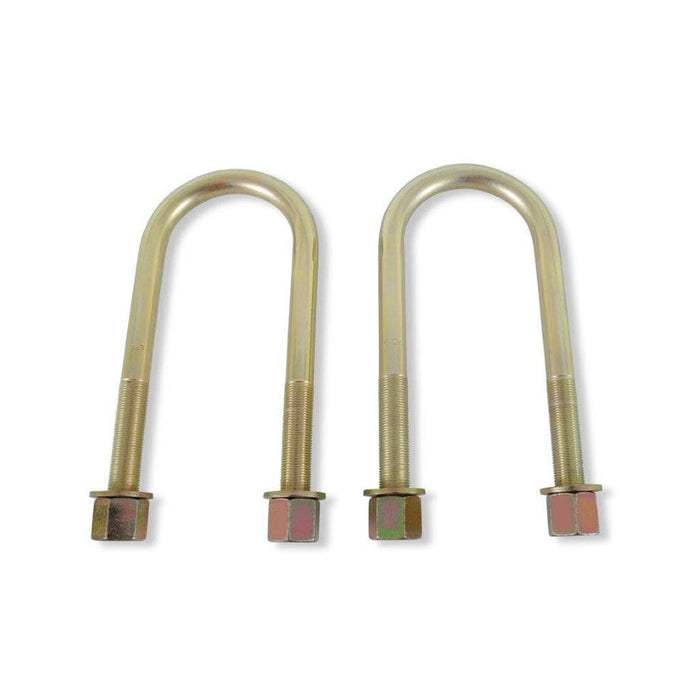

* Electroplated U-bolts and hardware included for corrosion protection
* 100 percent bolt-on product
* Use with factory truck arms
