Detroit Speed Chevy II Subframes 032034DS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 032034DS
Part Type: Front Suspension Packages
Product Line: Detroit Speed Chevy II Subframes
Automotive Fittings Part Number: DSR-032034DS
UPC: 090127166499
Wheel Bolt Pattern: 5 x 4 3/4 in.
Crossmember Included: Yes
Crossmember Material: Steel
Crossmember Color: Black powdercoated
Welding Required: No
Front Spindles Included: Yes
Spindle Material: Forged aluminum
Spindle Finish: Natural
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Upper Ball Joints Included: Yes
Lower Ball Joints Included: Yes
Rack and Pinion Included: Yes
Steering Rack Type: Hydraulic power assist
Rack Material: Steel
Rack Color: Natural
Shocks Included: Yes
Shock Type: Coilover
Coilover Springs Included: Yes
Coilover Spring Rate (lbs/in): 450 lbs./in.
Spring Finish: Black
Disc Brake Kit Included: No
Front Rotor Included: No
Front Caliper Included: No
Brake Pads Included: No
Sway Bar Included: Yes
Center Link Included: No
King Pins Included: No
King Pin Bearings Included: No
Pitman Arm Included: No
Idler Arm Included: No
Tie Rod Sleeves Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: Yes
Quantity: Sold as a kit.
Notes: Requires 17 in. or larger diameter wheels. Designed for LS engine conversions.
Description:

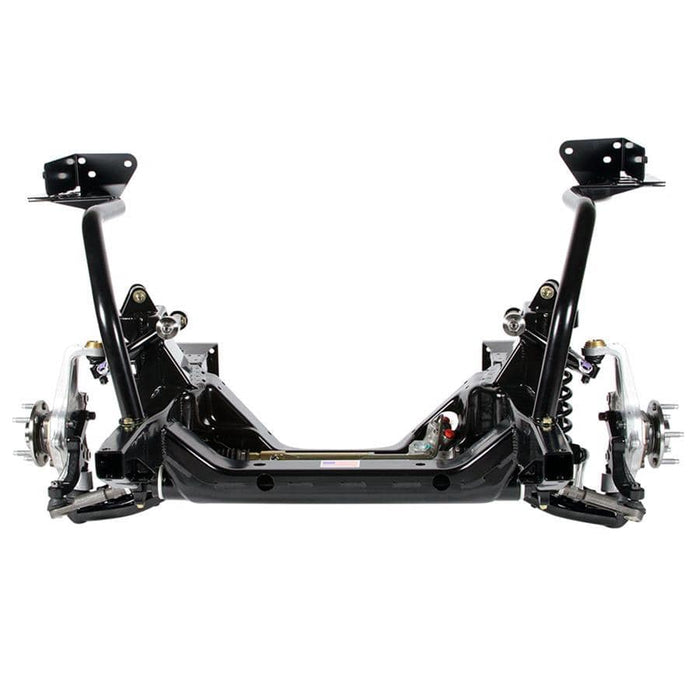

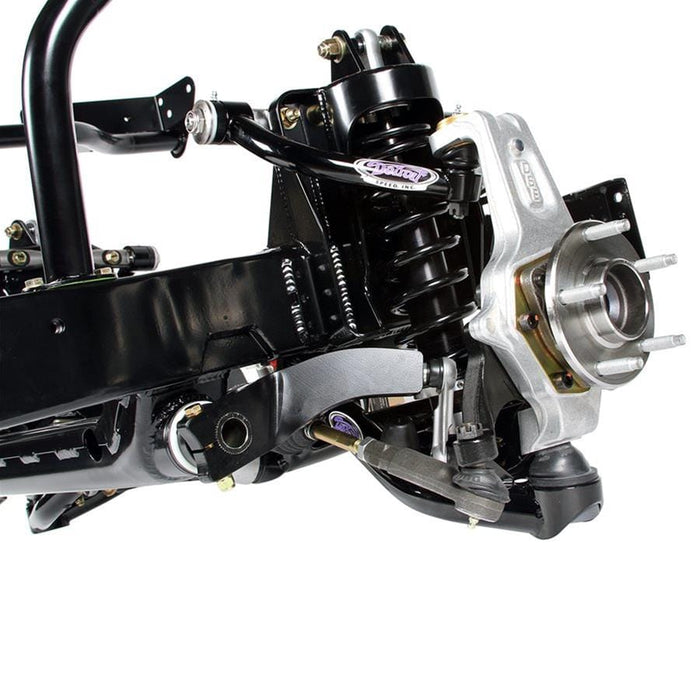

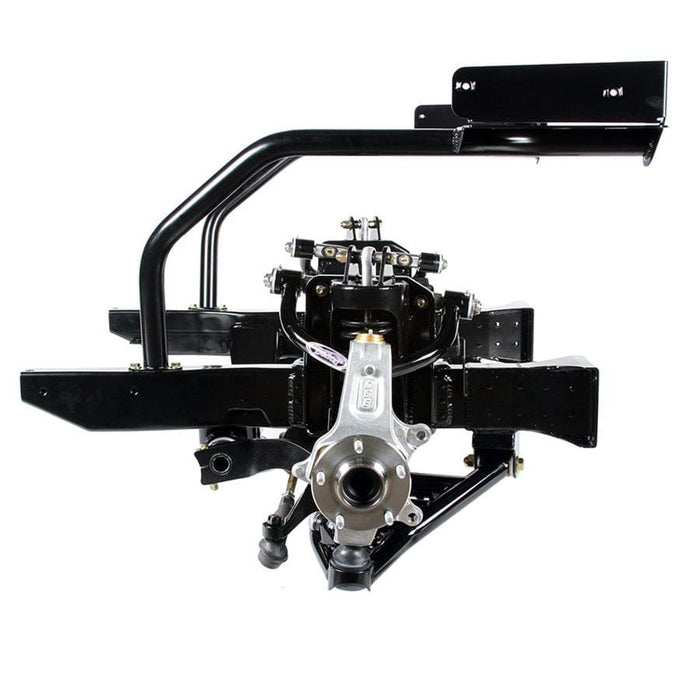

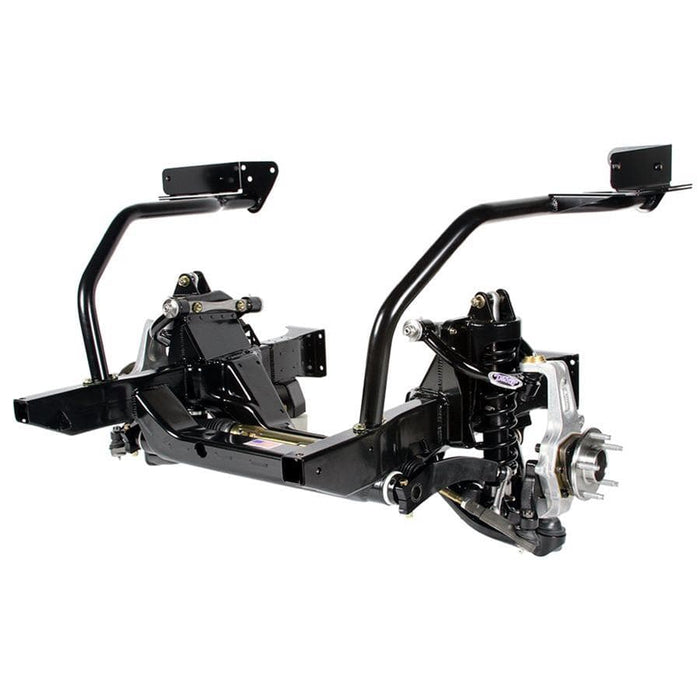

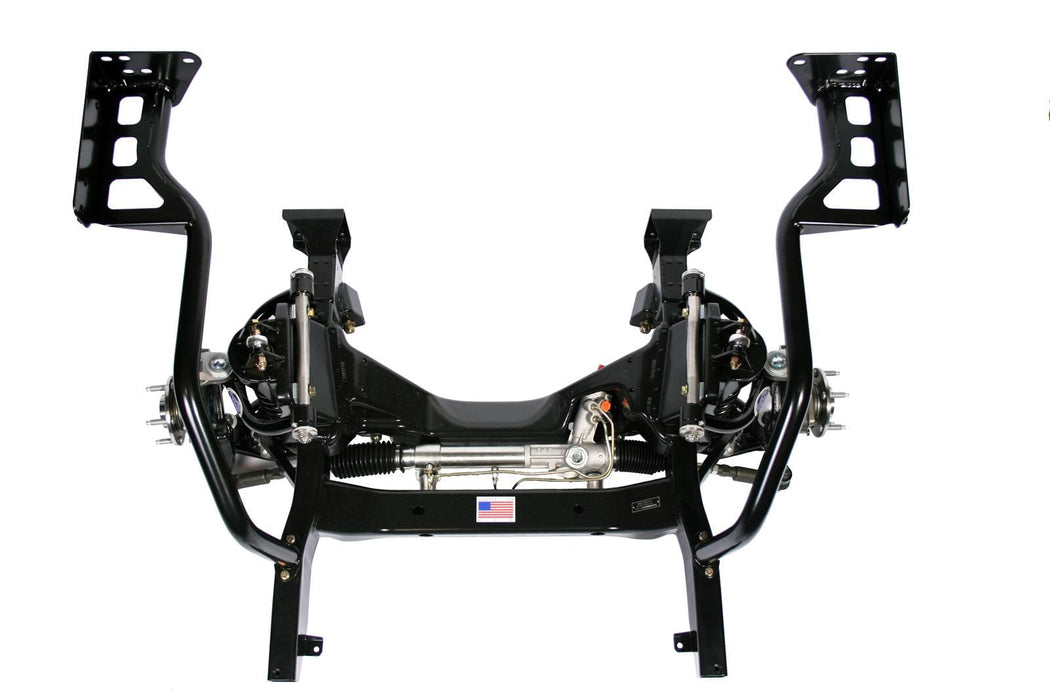

Detroit Speed Chevy II subframes are bolt-in replacements for the original stock subframe. They improve the handling and ride quality by utilizing Detroit Speed's unique suspension geometry. These are the ONLY Chevy II frames in the aftermarket industry with OEM-quality stamped crossmembers for improved structural rigidity. The bay bars feature rigid integral hood hinge mounting and are hidden when used with Detroit Speed's Chevy II Inner Fenders package. Order the Chevy II front frame model with the coilover options preferred for your application.
Subframe suspension kits include the following components:
* Tubular upper and lower control arms
* Aluminum body coilover shocks
* Torrington bearings
* Coilover springs
* Power rack and pinion steering
* Integrated splined sway bar
* Control arm cross shafts with caster tuner bushings
• Forged Detroit Speed spindle
• Composite sway bar bushings
• Spanner tool for easy shock adjustments
