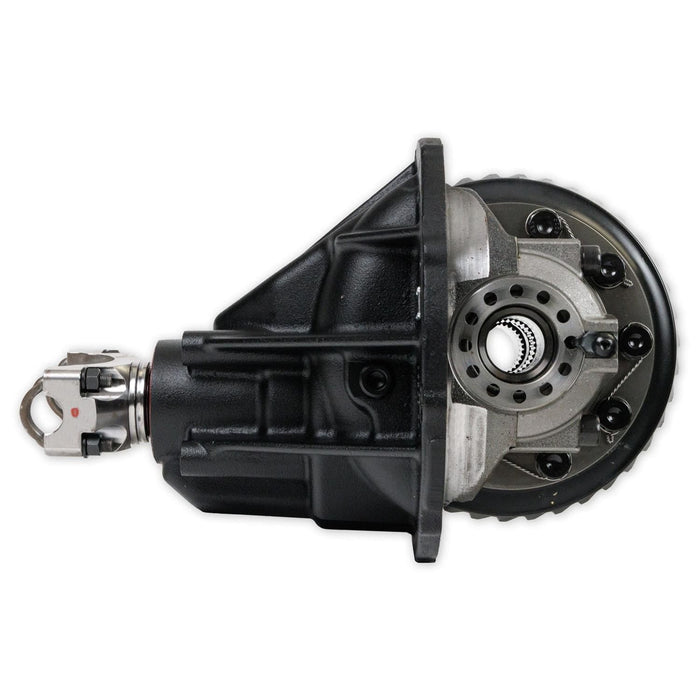

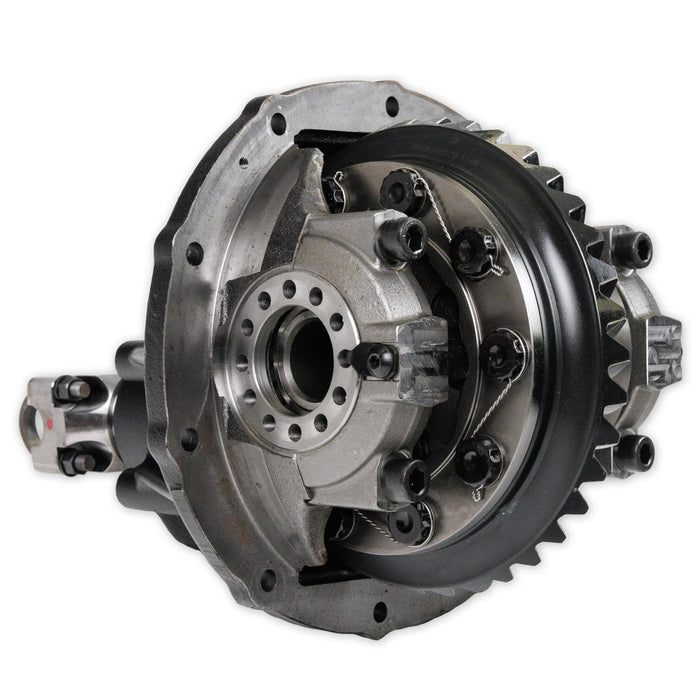

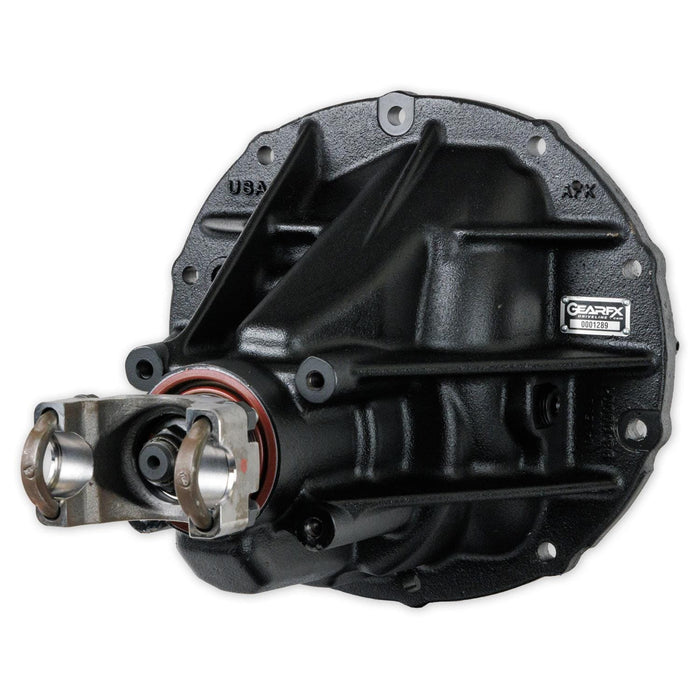

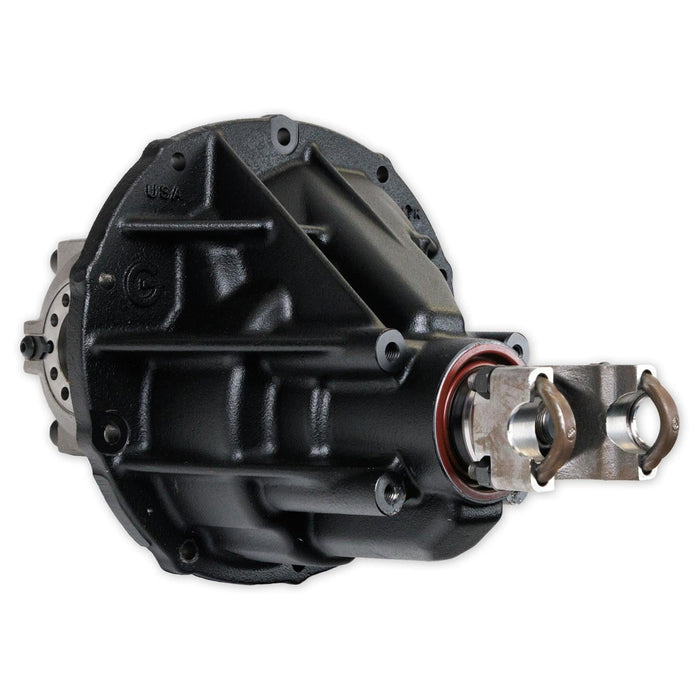

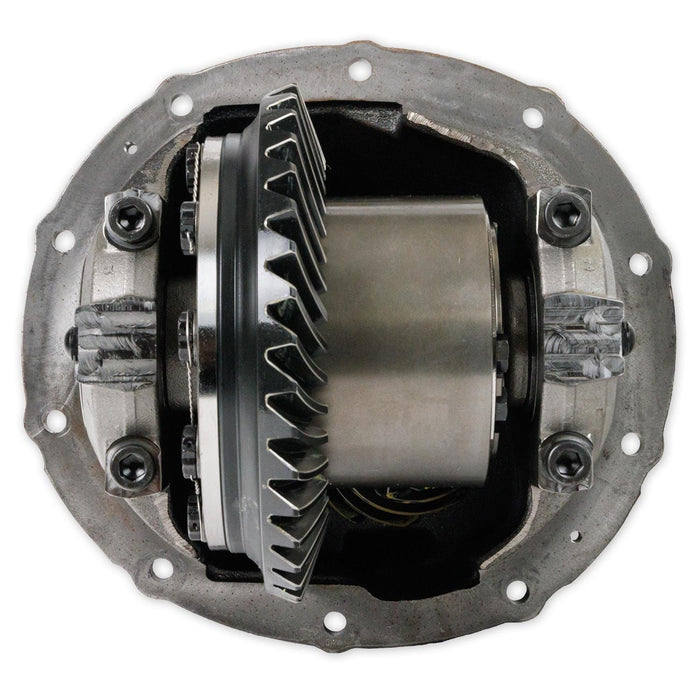

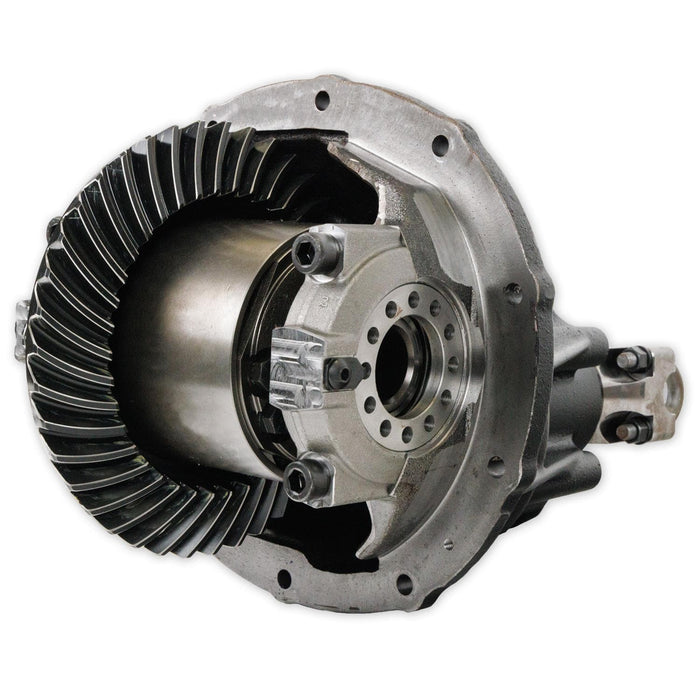

Detroit Speed FN988 Assembled Center Sections 070880-308DS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 070880-308DS
Part Type: Third Member Complete Assembly
Product Line: Detroit Speed FN988 Assembled Center Sections
Automotive Fittings Part Number: DSR-070880-308DS
UPC: 090127842799
Case Style: Ford 9 in.
Ring and Pinion Included: Yes
Ring and Pinion Ratio: 3.08:1
Case Material: Nodular iron
Main Cap Material: Steel
Yoke Included: Yes
Yoke Style: 1350 Series
Standard Pinion Location: Yes
Ring Gear Load Bolt: No
Bearings Included: Yes
Main Cap Retention Style: Bolt
Carrier Material: Cast iron
Quantity: Sold individually.
Description:
Is it possible to have a Ford 9-inch axle without an annoying amount of gear whine? Of course, but at what cost? How much time and money are you going to spend chasing down the issue when you can now simply bolt an 8.8-inch center section into your 9-inch housing thanks to the engineers at DSE? Detroit Speed now offers five different gear ratios and a complete assembly that will bolt directly into your 9-inch housing. Complete with forged alloy steel carrier bearing caps, high-strength nodular case, safety wired ARP hardware, 1350 forged steel pinion yoke, and a 31-spline Eaton Truetrac differential, the center sections are built to handle some serious power—and deliver it quietly and more efficiently than any 9-inch. The FN988 case is compatible with all 8.8-inch gears, differentials, and spools.
Product features:
* Patent-pending design utilizes an 8.8 gear set, which is quieter and more efficient than standard 9-inch components
* 31-spline Eaton Truetrac 8.8-inch differential
* Available in the following gear ratios: 3.08, 3.27, 3.55, 3.73, and 4.10
* Continuous lubrication of pinion bearings provided by internal oil channels
* High-strength nodular cast iron case
* Premium ring and pinion utilizing ARP ring bolts with safety wire
* Solid pinion preload spacer
* Forged alloy steel carrier bearing caps
* 1350 forged steel pinion yoke with U-bolt kit
* Threaded jack bolt holes in mounting flange ease case removal from axle housing
* Case includes mounting holes for bolt-on accessories
