Detroit Speed Fox Chassis Stiffening Kits 010116DS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 010116DS
Part Type: Subframe Connectors, Weld-On
Product Line: Detroit Speed Fox Chassis Stiffening Kits
Automotive Fittings Part Number: DSR-010116DS
UPC: 090127162132
Connector Color: Natural
Connector Material: Steel
Quantity: Sold as a kit.

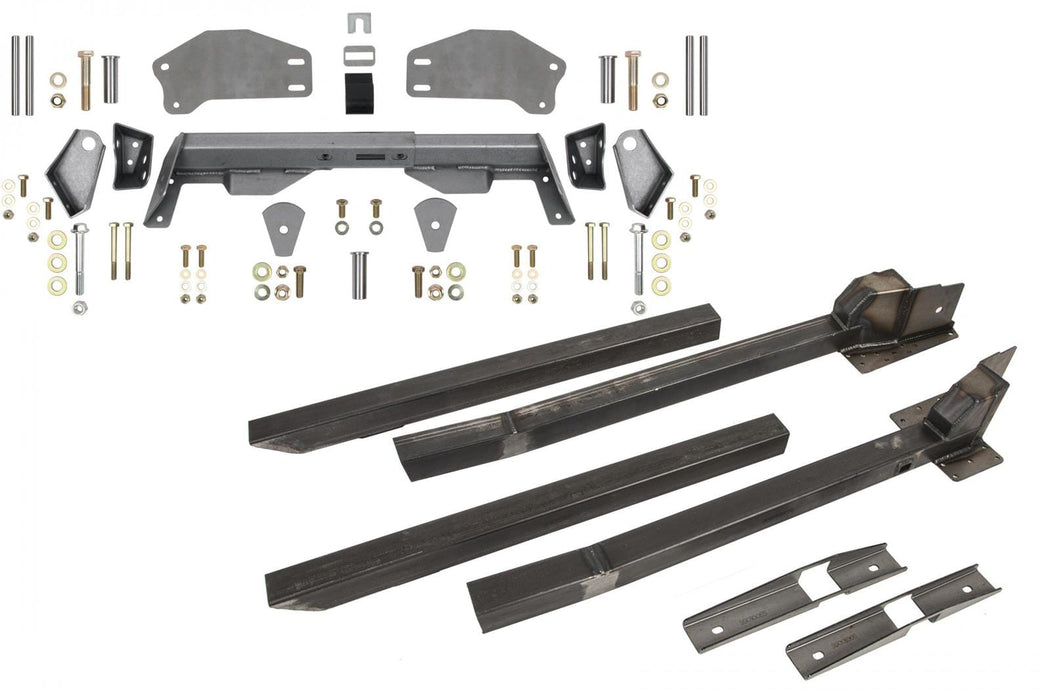

Notes: Kit includes weld-on subframe connectors and a bolt-on EXO brace.
Description:
Detroit Speed's Fox chassis stiffening kits combine their subframe connectors and their EXO Brace to deliver maximum stiffness to the notoriously flimsy Fox Body chassis.
Detroit Speed subframe connectors are designed to give maximum torsional stiffness connecting the front and rear frame rails. They are fabricated from 2 in. x 2 in. x .083 in. steel tube and .090 in. plate for superior stiffness with minimal added weight, and do not hang lower than the rocker pinch flange, so ground clearance is unaffected. In addition to the front seat mounting brackets that are stronger than factory, the connectors provide torque box and lower link reinforcement. The greatest value of these DSE kits are that they fix two common Fox Body issues with a single integrated solution.
Detroit Speed EXO Brace fixes a notorious failure point on the Fox Body platform--the point where the upper links mount to the chassis. Losing an upper link mount can result in unpredictable handling and is dangerous--at any speed. DSE developed an effective bolt-on (or weld-in) solution that improves the rigidity of the torque box, prevents damage to the chassis, and improves the safety of the vehicle. It ties the link pockets into the frame and floor pan on both sides and connects the two boxes side-to-side with a telescoping feature.
