Detroit Speed SpeedMAX Front Suspension Packages 032083-SDS

Brand: Detroit Speed Inc
Manufacturer's Part Number: 032083-SDS
Part Type: Front Suspension Packages
Product Line: Detroit Speed SpeedMAX Front Suspension Packages
Automotive Fittings Part Number: DSR-032083-SDS
UPC: 90127144732
Wheel Bolt Pattern: 5 x 5/4 3/4 in.

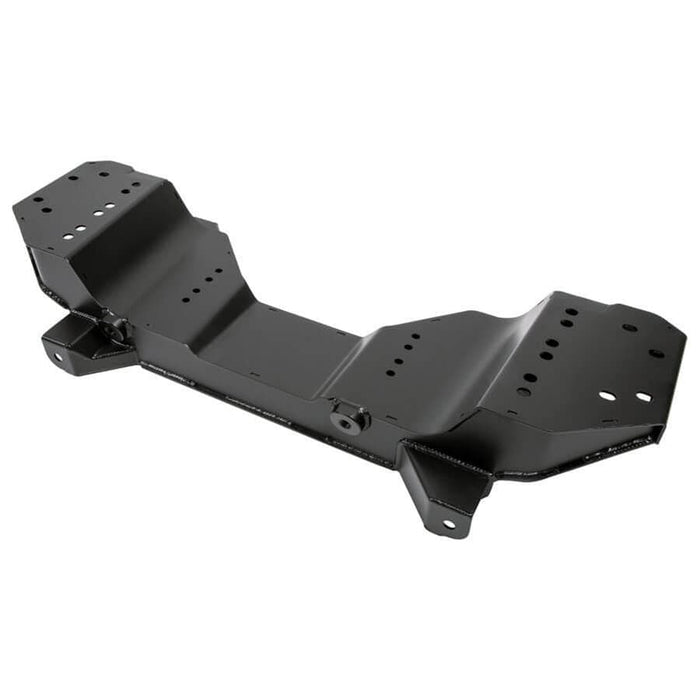

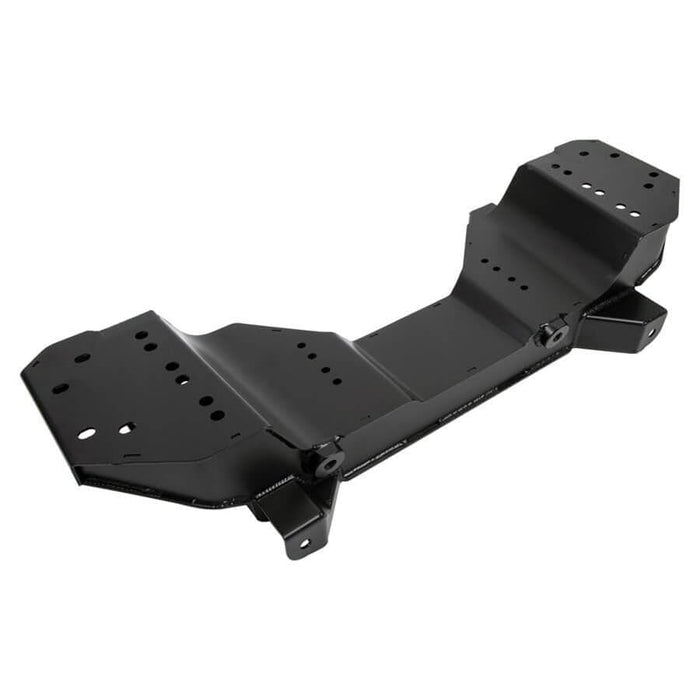

Crossmember Included: Yes
Crossmember Material: Steel
Crossmember Color: Black powdercoated
Welding Required: No
Front Spindles Included: Yes

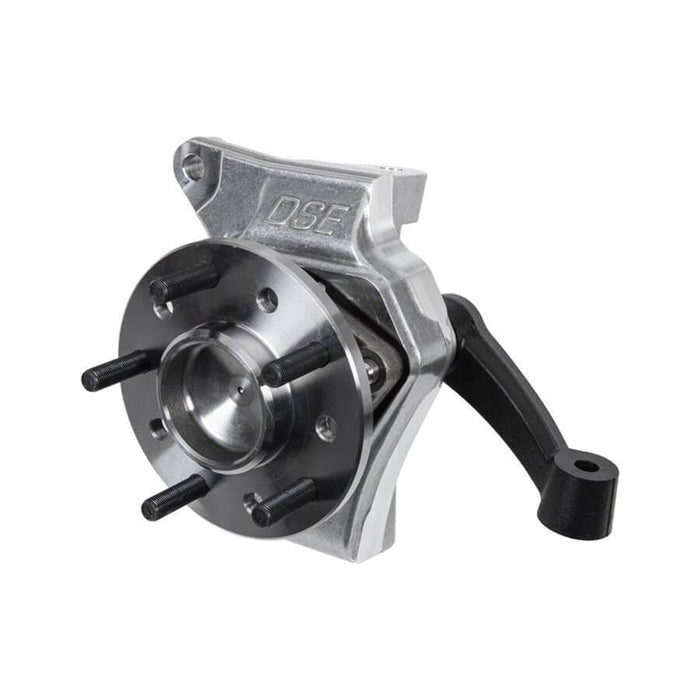

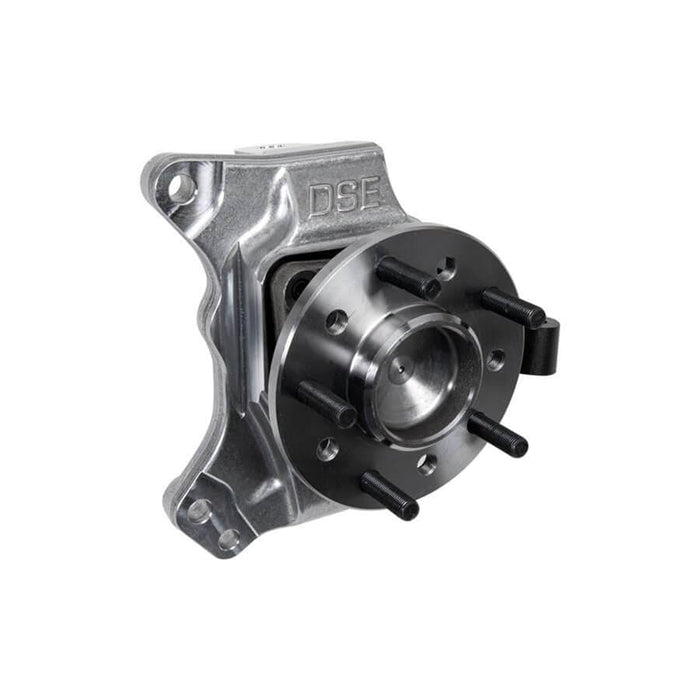

Spindle Material: Forged aluminum
Spindle Finish: Natural
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Upper Ball Joints Included: Yes
Lower Ball Joints Included: Yes
Rack and Pinion Included: Yes
Steering Rack Type: Hydraulic power assist
Rack Material: Aluminum
Rack Color: Natural
Shocks Included: Yes
Shock Type: Single adjustable coilover
Coilover Springs Included: Yes
Coilover Spring Rate (lbs/in): 650 lbs./in.
Spring Finish: Black
Disc Brake Kit Included: No
Front Rotor Included: No
Front Caliper Included: No
Brake Pads Included: No
Sway Bar Included: Yes
Center Link Included: No
King Pins Included: No
King Pin Bearings Included: No
Pitman Arm Included: No
Idler Arm Included: No
Tie Rod Sleeves Included: No
Inner Tie Rod Ends Included: Yes
Outer Tie Rod Ends Included: Yes
Quantity: Sold as a kit.
Notes: For use with Big Block Chevy engine mounts. Must use at least 17 in. wheels that require a minimum inside wheel diameter of 16.250 inches. Requires 050403DS rotors and 092531DS steering shaft.
Description:

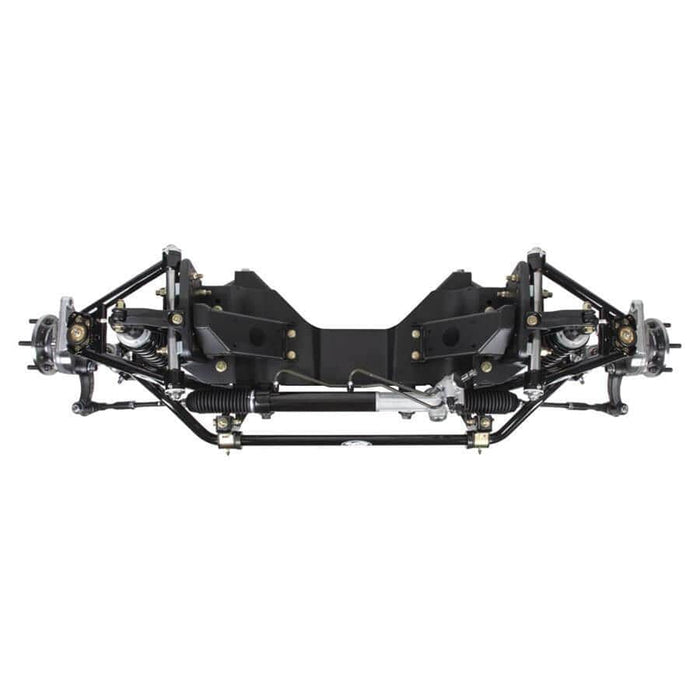

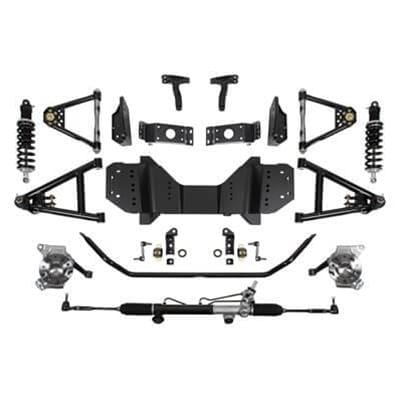

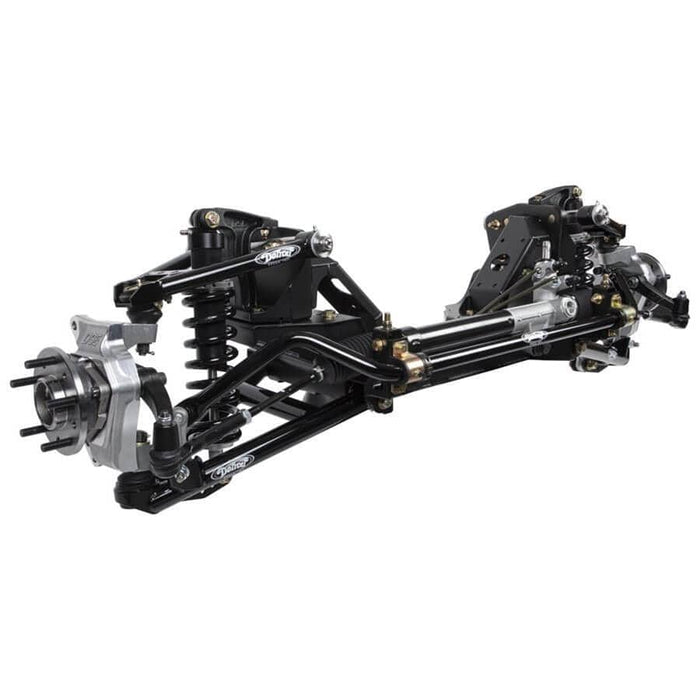

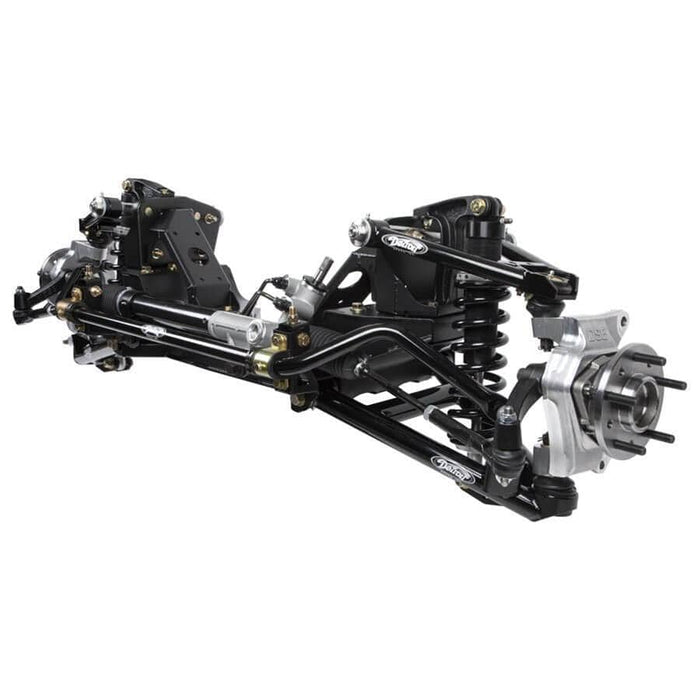

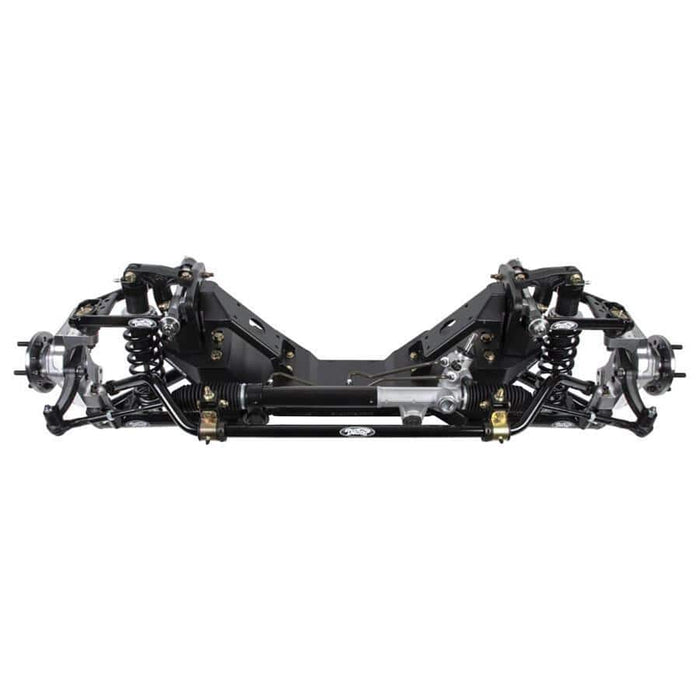

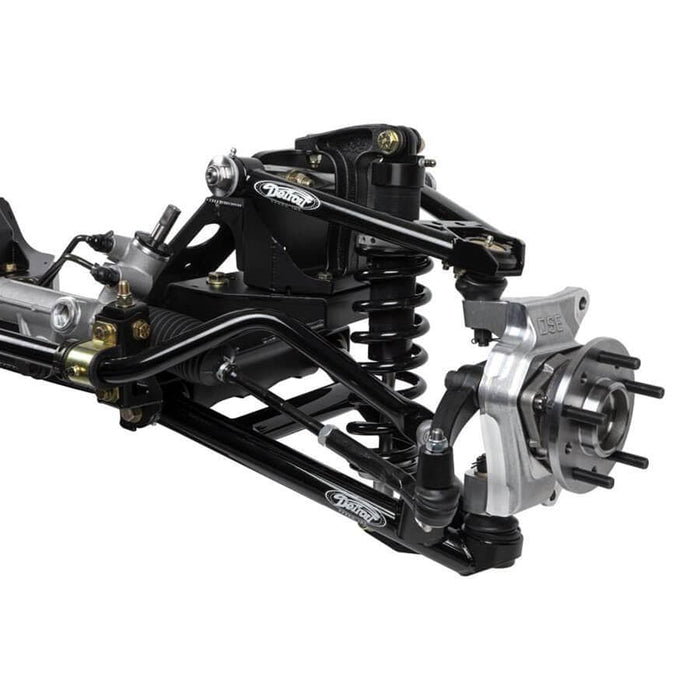

Detroit Speed SpeedMAX front suspension packages are designed with no compromises and exclusive DSE suspension geometry for superior handing and ride quality at a lowered ride height. These kits are 100 percent bolt-on front suspension systems, based on the later model GMT800 Silverado truck applications. Kits include DSE forged aluminum uprights with modern truck hub pack wheel bearings. These kits can be installed in stock location or 1 in. forward for improved wheel and fender alignment. the DSE "Detroit Tuned" aluminum body coilover shocks and springs allow for ride height adjustment and spring rate tuning without having to disassemble the control arms. Body panels and engine do not need to be removed for installation of these SpeedMAX suspension kits.

Additional product details:

* Packages are offered with single adjustable, double-adjustable, or non-adjustable shocks (please specify application needed when ordering)
* Body panels and engine do not need to be removed for installation
* Features "Detroit Tuned" GMT800 rack and pinion steering
* Includes sway bar with improved design/rate over optional factory bar using polyurethane bushings and low friction modern aluminum end links (uses tubular upper and lower control arms with Delrin bushings that are designed for trucks)

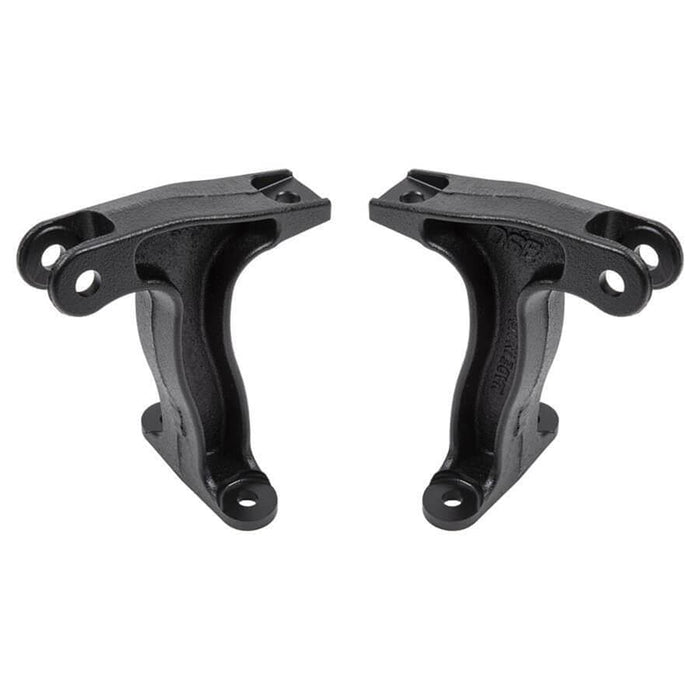

*Features ADI (Austempered Ductile Iron) upper shock bracket that uses a heat-treated, high strength cast iron for fatigue strength and wear resistance
* Stainless steel upper control arm cross shafts feature caster tuner bushings
