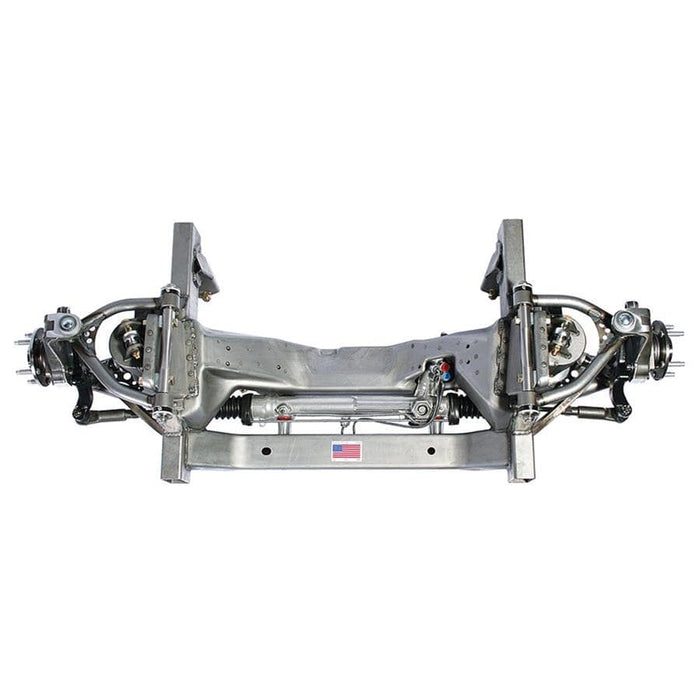

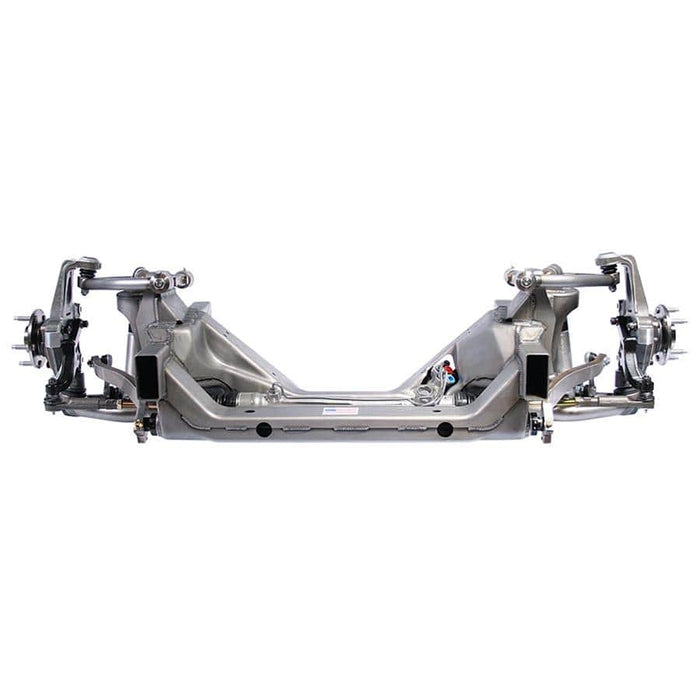

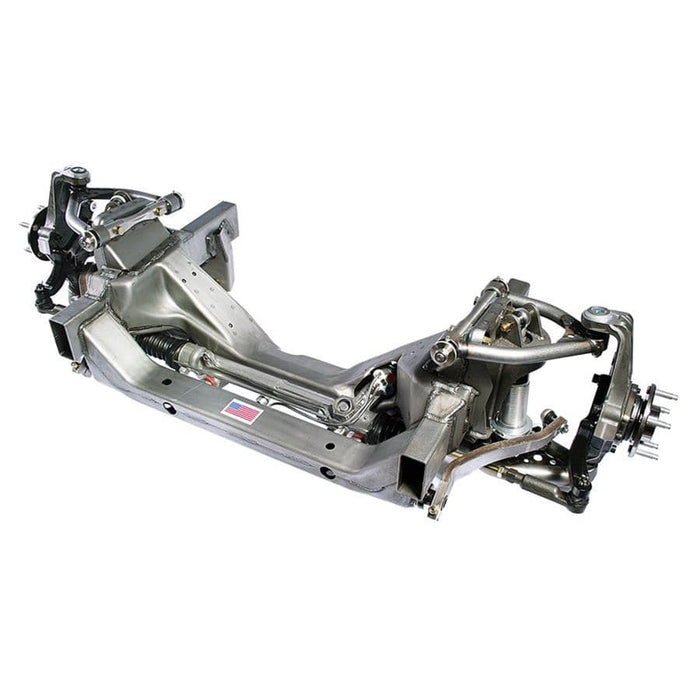

Detroit Speed X-Gen 595 Front Suspension Modules 032048-DDS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 032048-DDS
Part Type: Front Suspension Packages
Product Line: Detroit Speed X-Gen 595 Front Suspension Modules
Automotive Fittings Part Number: DSR-032048-DDS
UPC: 090127166949
Wheel Bolt Pattern: 5 x 4 1/2 in.
Crossmember Included: Yes
Crossmember Material: Steel
Crossmember Color: Natural
Welding Required: Yes
Front Spindles Included: Yes
Spindle Material: Forged aluminum
Spindle Finish: Natural
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Upper Ball Joints Included: Yes
Lower Ball Joints Included: Yes
Rack and Pinion Included: Yes
Steering Rack Type: Hydraulic power assist
Rack Material: Aluminum
Rack Color: Natural
Shocks Included: Yes
Shock Type: Double adjustable coilover
Coilover Springs Included: No
Disc Brake Kit Included: No
Front Rotor Included: No
Front Caliper Included: No
Brake Pads Included: No
Sway Bar Included: No
Center Link Included: No
King Pins Included: No
King Pin Bearings Included: No
Pitman Arm Included: No
Idler Arm Included: No
Tie Rod Sleeves Included: No
Inner Tie Rod Ends Included: Yes
Outer Tie Rod Ends Included: Yes
Quantity: Sold as a kit.
Notes: Requires 17 in. or larger diameter wheels and C6 Corvette brakes.
Description:
Detroit Speed X-Gen 595 front suspension modules allow you to integrate Detroit Speed suspension technology into any vehicle. They're available with a 59.5 in. track width and are ready to be subbed into your application with the 2 in. x 4 in. rail sections. These are the same suspension systems found in Detroit Speed's bolt-in front frames, so they've been designed, engineered, and developed to provide the ultimate in performance on both the road and the track. Order the model with specs and options best suited for your application.
Packages feature:
* DSE exclusive suspension geometry for superior ride and handling
* OEM-quality stamped crossmembers for improved structural rigidity
* Tubular upper and lower control arms
* Detroit Tuned aluminum body coilover shocks
* Detroit Tuned power rack and pinion steering
* Caster tuner bushings, which allow for independent caster/camber adjustments
* Integrated splined anti-roll bar
* Track width (hub to hub): 59.500 in.
* Maximum wheel backspacing: 6.125 in.
* Total suspension travel: 6.000 in.
* Frame rail dimensions: 2 in. x 4 in. x .120 thick
* Outer to outer frame width: 34.250 in.
* Frame rail length: 25.250 in.
