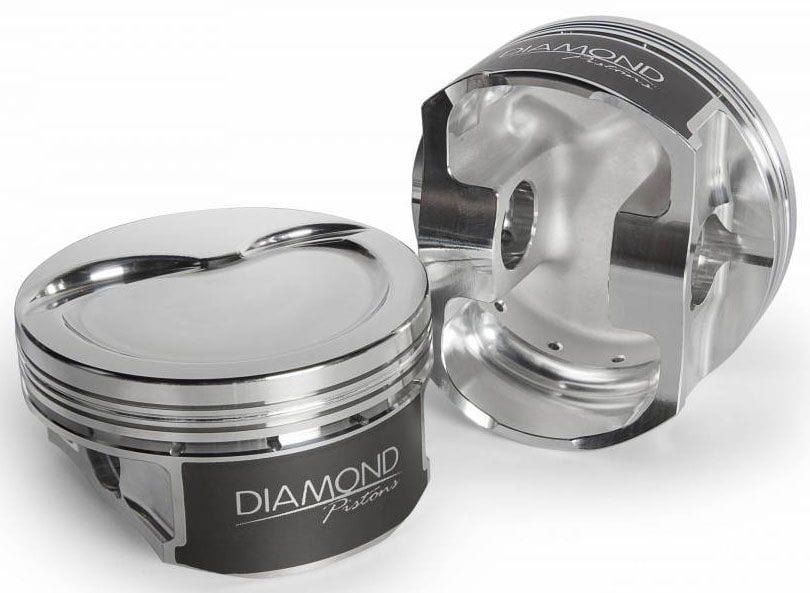

DIAMOND 4.070" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume LSA Dish Top Forged Pistons With Rings D1LSA-4070-R1-8 Autofit

LSA Dish Top Forged Pistons With Rings D1LSA-4070-R1-8

D1LSA-4070-R1-8 - DIAMOND LSA 4.070" BORE 4.00"
SKU D1LSA-4070-R1-8
by DIAMOND
Sold out
$2,874.67 +GST - $2,874.67 +GST
$2,874.67 +GST
$2,874.67 +GST
$2,874.67 +GST - $2,874.67 +GST
$2,874.67 +GST
$3305.8705 Including GST (NZ Customers only)
Availability:
Out of stock
LSA Dish Top Forged Pistons With Rings

4.070" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume

D1LSA-4070-R1-8

LSA-4070-R1-8

3D milling on piston crowns for ready to install finish Valve pockets designed to work with most aftermarket cylinder heads Offset pins for quiet operation Moly skirt coating for friction loss and skirt wear protection Top ring down dimension: .250" Ratios figured for .040 head gasket Premium 1.2mm x 1.2mm x 3.0mm ring package included Premium 8620 .185W wrist pins included Valve pocket depth: 0.178" intake and .108" exhaust 2618 material for High HP-NOS-Boost applications
