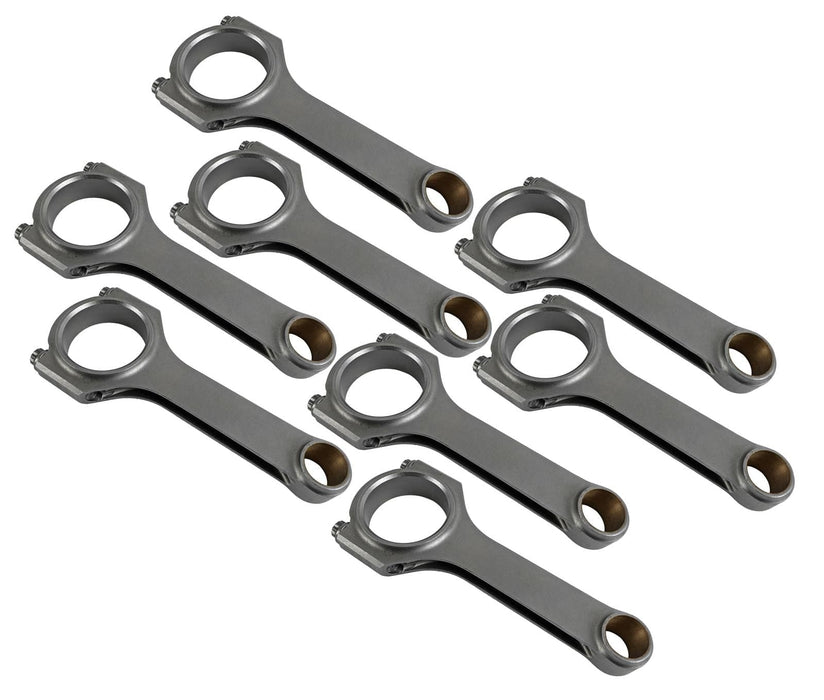

Eagle CRS Lightweight H-Beam Connecting Rods CRS6100M3D
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: CRS6100M3D
Part Type: Connecting Rods
Product Line: Eagle CRS Lightweight H-Beam Connecting Rods
Automotive Fittings Part Number: ESP-CRS6100M3D
UPC: 793348040615
Connecting Rod Length Center to Center (in.): 6.100 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.945 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold as a set of 8.
Cap Retention Style: Through-bolt
Big End Width (in.): 0.940
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 160,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 650
Pin End Width (in.): 1.060 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Natural
Description:
Eagle now offers their CRS lightweight H-beam connecting rods in their Featherweight series. The lighter design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap. They come with 220,000 psi rated ARP 2000 cap screw rod bolts, instructions, and rod bolt lubrication.
