Eagle Forced Induction Competition Rotating Assemblies 35410L4560
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 35410L4560
Part Type: Engine Rotating Kits
Product Line: Eagle Forced Induction Competition Rotating Assemblies
Automotive Fittings Part Number: ESP-35410L4560
UPC: 00793348020297
Actual Engine Displacement: 9.1L/555
Rear Main Seal Style: 1-piece
Bore (in.): 4.560 in.
Bore (mm): 115.824mm
Engine Stroke (in.): 4.250 in.
Balanced: No
Piston Material: Forged aluminum
Piston Style: Dish, with a D-shaped cup
Harmonic Balancer Included: No
Flexplate Included: No
Flywheel Included: No
Pistons Included: Yes
Piston Head Volume (cc): +20.00cc
Wrist Pin Style: Floating
Piston Rings Included: Yes
Piston Ring Facing Material: Plasmamoly
Piston and Ring Oversize (in.): 0.090 in.
Crankshaft Included: Yes
Crankshaft Material: Forged 4340 steel
Engine Balance: Internal
Connecting Rods Included: Yes
Connecting Rod Length Center to Center (in.): 6.385 in.
Connecting Rod Material: Forged 4340 steel
Connecting Rod Beam Style: H-beam
Rod Bearings Included: Yes
Rod Bearing Undersize (in.): Stock
Rod Bearing Undersize (mm): Stock
Main Bearings Included: Yes
Main Bearing Undersize (in.): Stock
Main Bearing Undersize (mm): Stock
Cam Bearings Included: No
Gaskets Included: No
Oil Pump Included: No
Camshaft Included: No
Lifters Included: No
Timing Chain and Gears Included: No
Plastigage Included: No
Assembly Lubricant Included: No
Quantity: Sold as a kit.
Description:

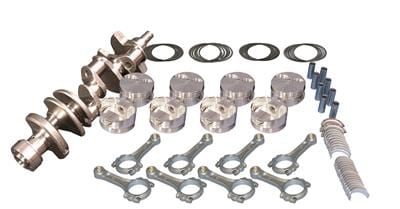

Eagle forced induction competition rotating assemblies consist of name-brand quality components for a wide range of applications at an affordable price. These kits feature a crankshaft, pistons, piston rings, rod and main bearings, and connecting rods. Based on your application, balanced assemblies are also available.
