Eagle FSI I-Beam Connecting Rods FSI6135
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: FSI6135
Part Type: Connecting Rods
Product Line: Eagle FSI I-Beam Connecting Rods
Automotive Fittings Part Number: ESP-FSI6135
UPC: 00793348068022
Connecting Rod Length Center to Center (in.): 6.135 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.3250

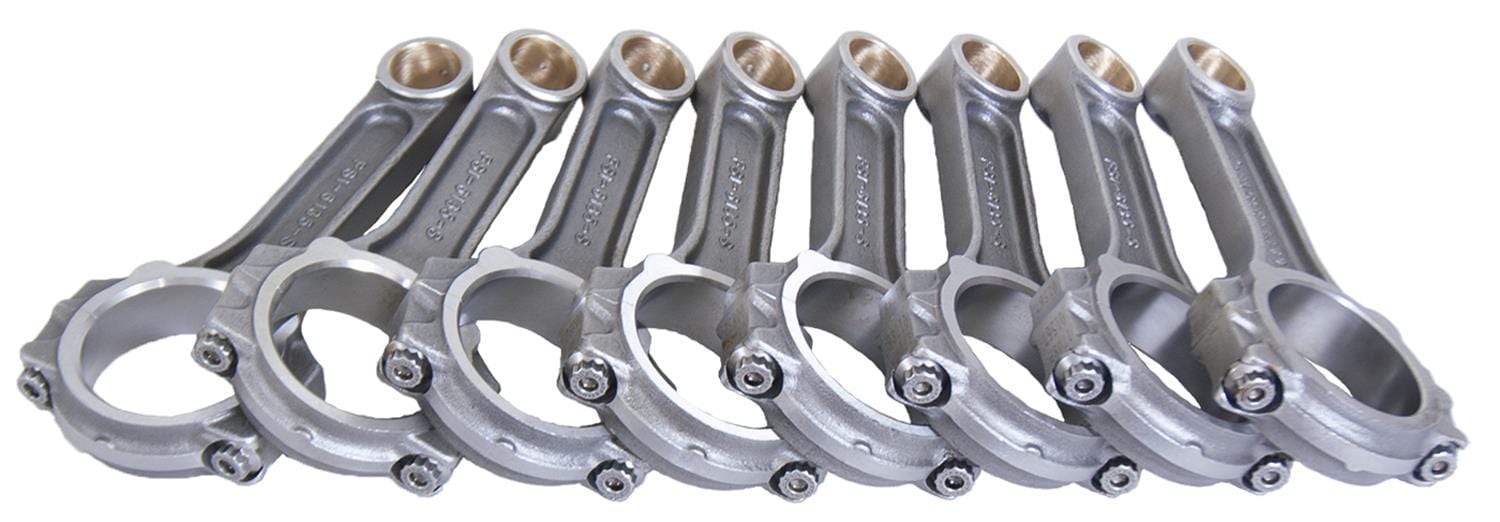

Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.990
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 800
Advertised Horsepower Rating: 800 hp
Pin End Width (in.): 1.025 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
Description:

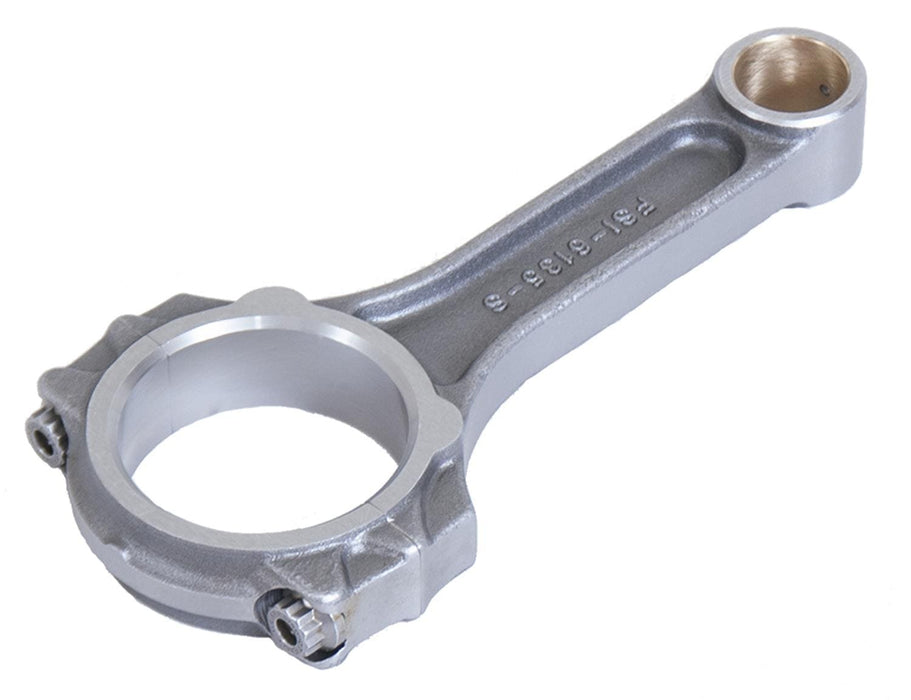

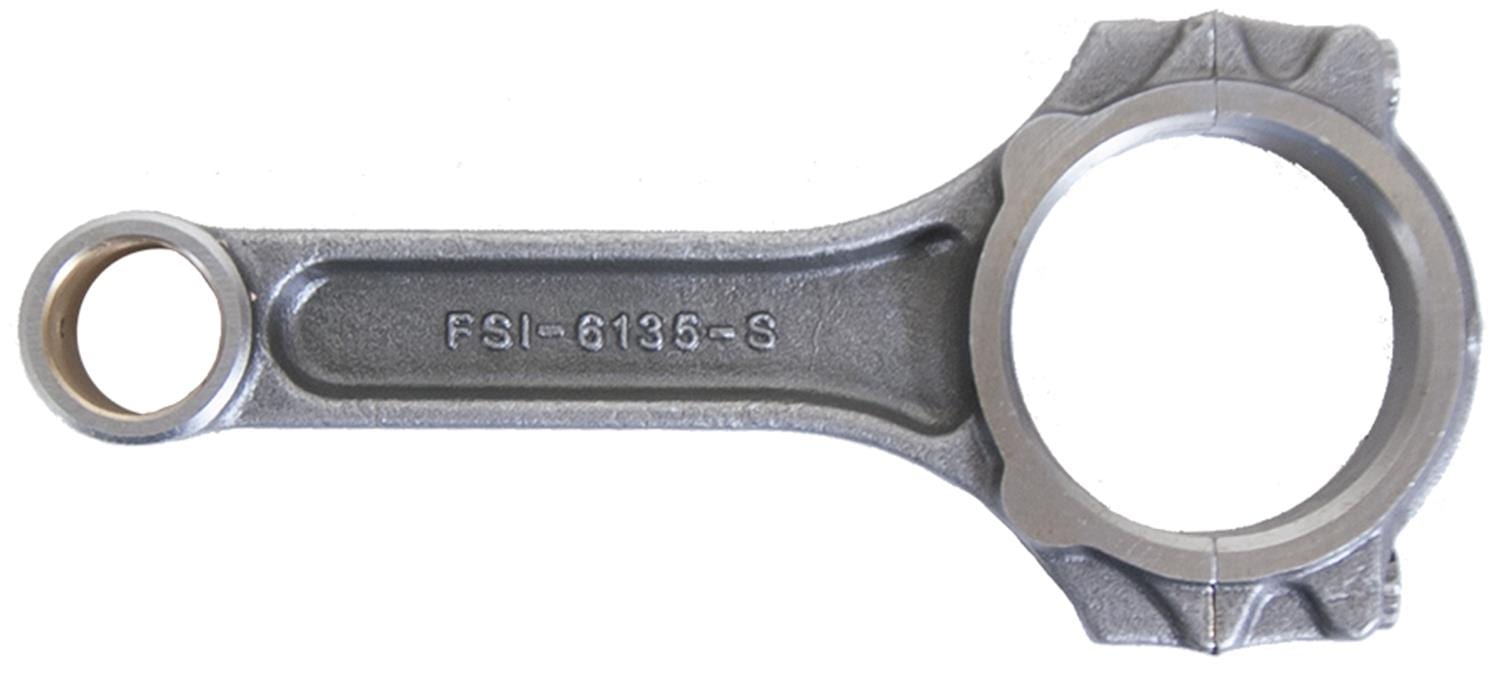

Eagle FSI I-beam connecting rods are forged strong from 4340 steel. They are fitted with 7/16 in. ARP 8740 cap screw-style rod bolts, alignment sleeves for precise cap location, and silicone bronze pin bushings. Sizing is performed using the Sunnen Kross grinding system and is weight-matched to +/- 1 gram. Get your modified pump-gas racing engines cranking with FSI I-beam connecting rods from Eagle.
