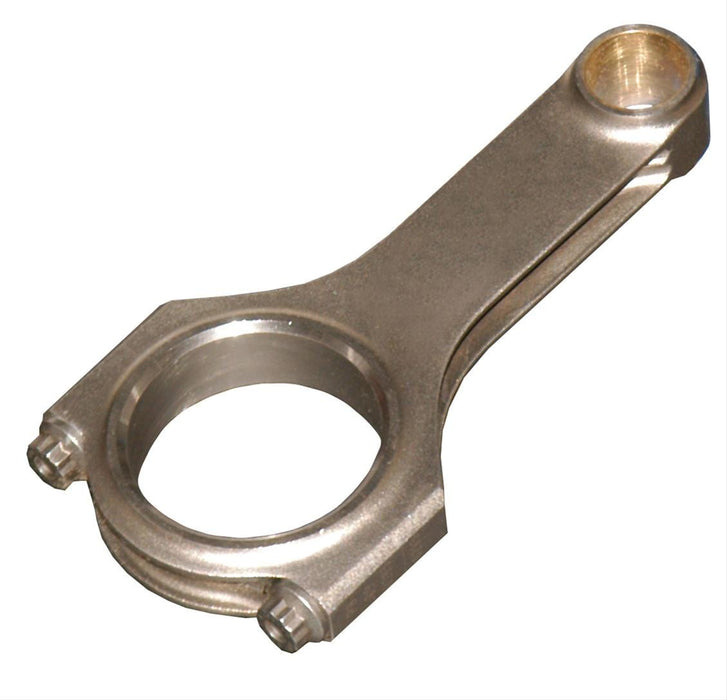

Eagle H-Beam Connecting Rods CRS7100C3D20-1
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: CRS7100C3D20-1
Part Type: Connecting Rods
Product Line: Eagle H-Beam Connecting Rods
Automotive Fittings Part Number: ESP-7100C3D20-1
UPC: 00793348002989
Connecting Rod Length Center to Center (in.): 7.100 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.990 in.
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.3250
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 1.007
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP2000 alloy
Fastener Tensile Strength (psi): 200,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 840
Advertised Horsepower Rating: 1,300 hp
Advertised RPM Rating: 9,000 rpm
Pin End Width (in.): 1.125 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes: Block may need clearanced.
Description:
Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.
The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models—and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.
