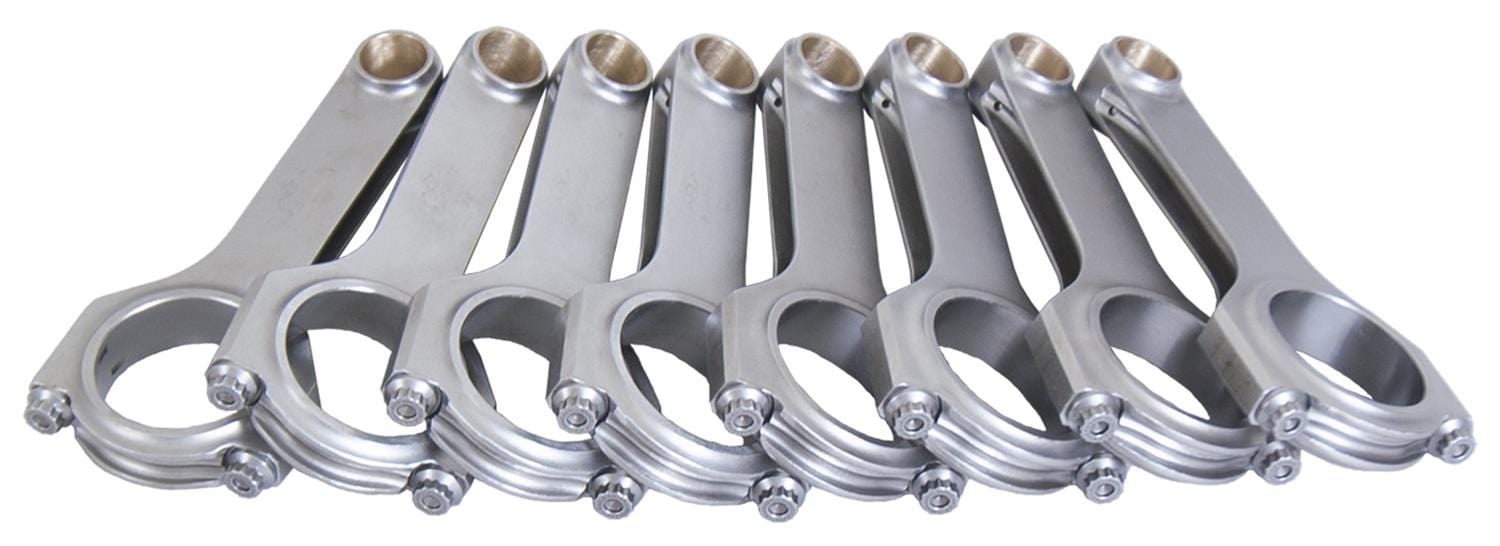

Eagle Maximum Stroke H-Beam Connecting Rods FSI6000BST2000
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: FSI6000BST2000
Part Type: Connecting Rods
Product Line: Eagle Maximum Stroke H-Beam Connecting Rods
Automotive Fittings Part Number: ESP-6000BST2000
UPC: 793348067889
Connecting Rod Length Center to Center (in.): 6.000 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP2000 alloy
Fastener Tensile Strength (psi): 200,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 645
Advertised Horsepower Rating: 1,200 hp
Advertised RPM Rating: 9,500 rpm
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes: Custom pistons required when using longer-than-stock connecting rods.
Description:
Using the state-of-the-art Sunnen Krossgrinding system, Eagle has created these maximum stroke H-beam connecting rods. This new process is designed to hold extremely tight tolerances, making for better quality connecting rods. They're packaged in weight-matched sets and have been sonic-tested and magnafluxed to ensure quality. The rods feature 2-piece forging for increased strength, and precision alignment sleeves to accurately locate the rod cap. Available with standard, ARP2000, or L19 rod bolts, these Eagle maximum stroke H-beam connecting rods are able to handle the horsepower. Order the individual rod or set recommended for your year/make and engine application.
