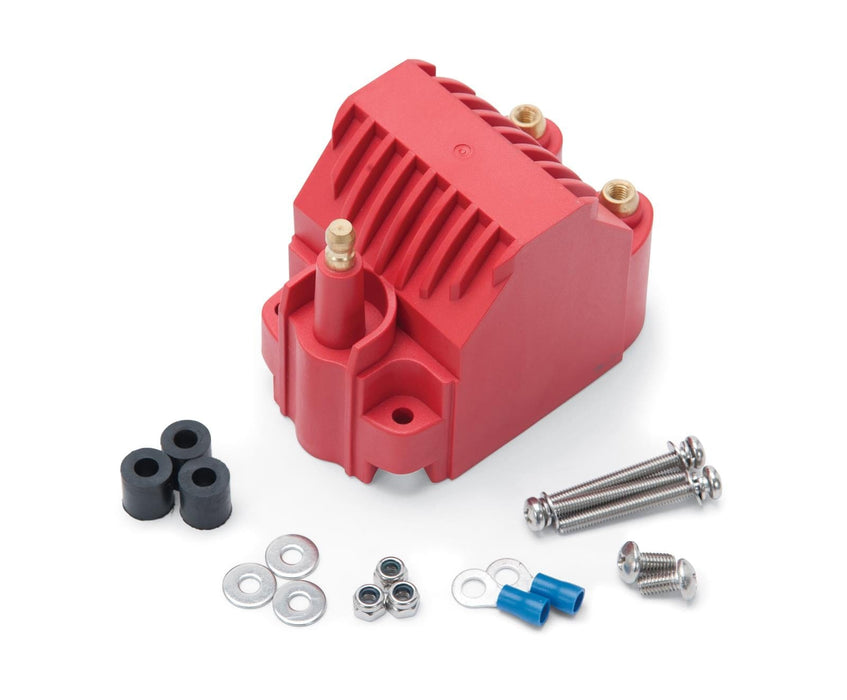

Edelbrock Max-Fire Ignition Coils 22742
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 22742
Part Type: Ignition Coils
Product Line: Edelbrock Max-Fire Ignition Coils
Automotive Fittings Part Number: EDL-22742
UPC: 085347227426
Coil Style: Remote mount
Primary Resistance: 0.450 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Female/Socket
Coil Color: Red
Maximum Voltage: 45,000 V
Turns Ratio: 116:1
Secondary Resistance: 8.00K ohms
Inductance: 4.50 mH
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: This Max Fire coil is designed for vehicles that have been converted to a electronic breaker-less distributor where a traditional oil filled can style coil is preferred for the correct vintage appearance. Designed for use with Ready to Run distributors and 6 series CDI ignition boxes.
Description:
Edelbrock Max-Fire ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. They're ideal for use with turbocharged and supercharged applications or engines that have been converted to E85 fuel. Available in a various finishes and styles, Edelbrock Max-Fire ignition coils are what you need to make your performance engine build complete.
