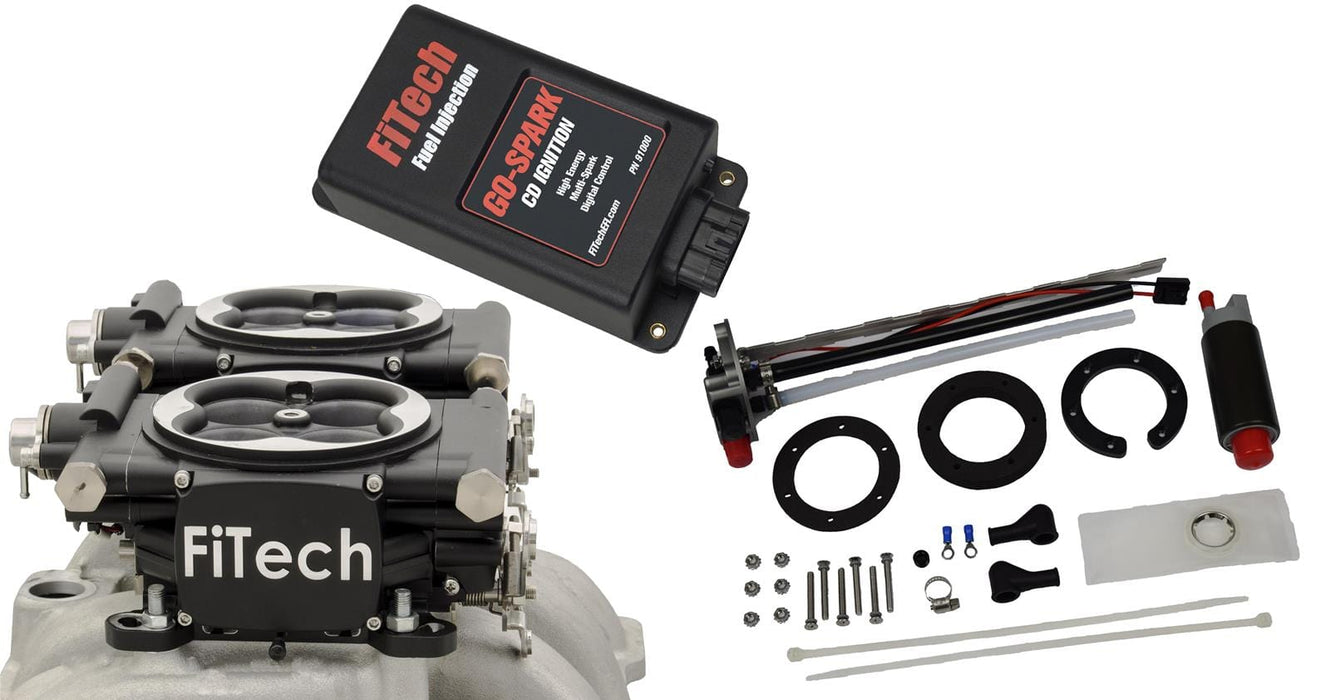

FiTech Go EFI 2x4 625 HP System/Go Spark Fuel Injection Master Kits 93662

Brand: FiTech Fuel Injection
Manufacturer's Part Number: 93662
Part Type: Fuel Injection Systems
Product Line: FiTech Go EFI 2x4 625 HP System/Go Spark Fuel Injection Master Kits
Automotive Fittings Part Number: FIF-93662
UPC: 812061033794
Fuel Injection Style: Throttle body
Fuel Injection System Type: Dual 4-Barrel Throttle Bodies (4150 Flange)
Maximum Horsepower with Gas: 625
Timing Control Compatible: Yes
Power Adder Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: Yes
Fuel Pump Flow Rating (lph): 340
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Manifold Included: No
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 8
Venturi Diameter (mm): 43.00mm
Airflow Rate (cfm): 1,700 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 36 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
Distributor Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Description:
FiTech Go EFI 2x4 625 hp system/Go-Spark fuel injection master kits are inclusive EFI kits with fuel delivery solutions, plus an upgrade to high-powered sparks for improved combustion and power output. In these master kits, FiTech mates their 2x4 TBIs with either a Go Fuel in-tank or fuel cell pump module, or Go EFI in-line pump kit to provide everything needed to convert your carbureted vehicle to EFI. And going a step further, the Go-Spark CDI ignition will elevate the spark for even more improved performance. Choose the master kit with your preferred fuel delivery solution.

Go EFI 2x4 625 hp system lets everyone know you mean business with a pair of 4-barrels crowned atop your engine! The 2x4 is supplied with two throttle bodies, one with the brains and integral ECU, the other with the brawn. Both bodies feature four injectors and will support up to 625 horsepower (naturally aspirated). The system is supplied with two throttle bodies, handheld controller, cable and windshield mount, throttle body vehicle side harness, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty information. The throttle bodies are available in two finishes.

Go-Spark produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality, and throttle response. At higher rpm, the CD technology continues to deliver full energy sparks through racing rpm to ensure complete combustion of the fuel mixture. Designed for 4-, 6-, and 8-cylinder engines equipped with a distributor, Go-Spark accepts the trigger signal from an HEI, amplifier, points, or 2-wire non-magnetic pickup distributors.

Fuel delivery options:

* Go Fuel universal in-tank pump modules—255 or 340 lph—can be used on tanks with a depth of 6 to 15 in. A feed line, vent, and return are machined into the module for easy high-pressure line connections. Gaskets, terminals, and clamps are included.
* Go Fuel universal in-tank regulated pump module—255 lph or 340 lph—single line system with a depth of 6.5 to 15 in. Pump has -6 AN pressure port and a 4-Bar (58 psi) regulator and suitable for most EFI-ready tanks
* Go Fuel single pump fuel cell module—returnless--340 lph--billet top assembly is machined with a 2 in. filler assembly, as well as an internal regulator to maintain 58 psi. The module is machined to fit fuel cells with a 12-bolt flange or can be installed on any tank with the supplied hardware.
* Go EFI inline pump kit—255 lph external pump suitable to support engines producing up to 600 (non-aspirated) hp. Supplied with 40 ft. of high-pressure fuel hose, two fuel filters, including a serviceable 10-micron filter, fittings, mounts, and clamps.
