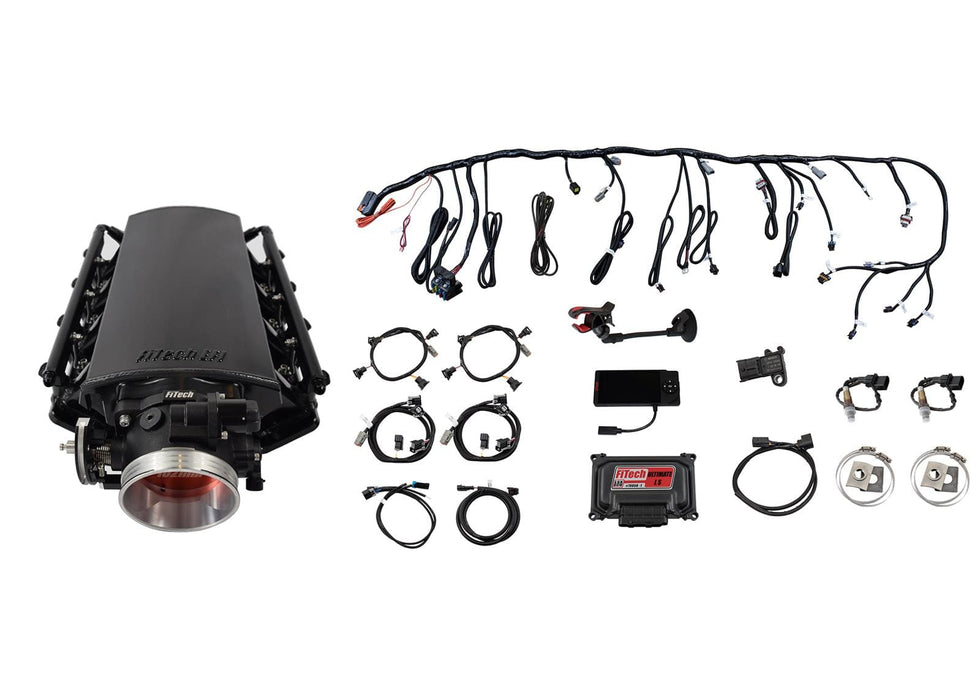

FiTech Ultimate LS 1,000 HP EFI Fuel Injection Systems 70030

Brand: FiTech Fuel Injection
Manufacturer's Part Number: 70030
Part Type: Fuel Injection Systems
Product Line: FiTech Ultimate LS 1,000 HP EFI Fuel Injection Systems
Automotive Fittings Part Number: FIF-70030
UPC: 812061035736
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 1,000
Timing Control Compatible: Yes
Power Adder Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: No
EGR: No
Transmission Controller Included: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Intake Manifold Included: Yes
Intake Section Included: Complete
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 102.00mm
Airflow Rate (cfm): 1,000 cfm
Throttle Body Material: Billet aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 80 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
Distributor Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Features short cathedral intake.
Description:
FiTech Ultimate LS EFI 1,000 HP fuel injection systems with 102mm throttle body are a complete self-tuning induction system designed for everyone from the do-it-yourself hot rodder to the professional EFI tuner! These Ultimate EFI intake manifold kits are ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. So, you can forget about sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU's from another unknown tuner source. FiTech has you covered with these complete kits, and they've taken the work out of getting your new or pull-out LS up and running in a flash!

Small Block V8 GEN III/IV LS-based Chevrolet street and performance engines with a 1,500-6,500 rpm power-band up to 1,000 hp to the flywheel and contains a 3-bar MAP sensor for power adder applications that supports up to 30 psi of boost.

Additional product features:

* Low-profile, 102mm inlet, fabricated 3mm thick aluminum sheet metal TIG-welded intake manifold with 1,500-6,500 rpm power-band up to 1,000 hp to the flywheel and contains a 3-bar MAP sensor for power adder applications that supports up to 30 psi of boost
* Billet fuel rails with AN fittings and fuel crossover
* Self-learning ECU with touch screen controller for easy setup and configuration
* Sequential fuel and spark control with individual cylinder trim
* Dual Bosch wideband with dual trim control (self-learning)
* 3-bar MAP sensor automatically detects up to 30 psi boost
* Stainless oxygen sensor bung (clamp or weld-on)
* 24X and 58X crank and cam compatible
* Two programmable fan control outputs
* TPS–IAC Sensor
* Tach output driver for most tachometers (5 V)
* Output driver for most speedometers
* On-the-fly programmable target AFR and timing (if desired)
* 80 lbs./hr. flow-matched injectors
* Fuel pump relay output
* Custom wire harness (uses factory coil pack sub harness)
* Knock sensor control

Note: This kit is not carb approved for use on emission-controlled vehicles. It is not legal for use on pollution-controlled vehicles. This system is designed to control the EFI and ignition on LS-based engines being retrofit into older vehicles that do not require emission controls.
