FiTech Ultimate LS EFI 500 HP Fuel Injection Systems 71012
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 71012
Part Type: Fuel Injection Systems
Product Line: FiTech Ultimate LS EFI 500 HP Fuel Injection Systems
Automotive Fittings Part Number: FIF-71012
UPC: 854549007514
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 500
Timing Control Compatible: Yes
Power Adder Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: Yes
EGR: No
Transmission Controller Included: Yes
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Intake Manifold Included: Yes
Intake Section Included: Complete
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 92.00mm
Airflow Rate (cfm): 1,000 cfm
Throttle Body Material: Billet aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 36 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
Distributor Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Kit includes 50001 inline fuel pump kit.
Description:

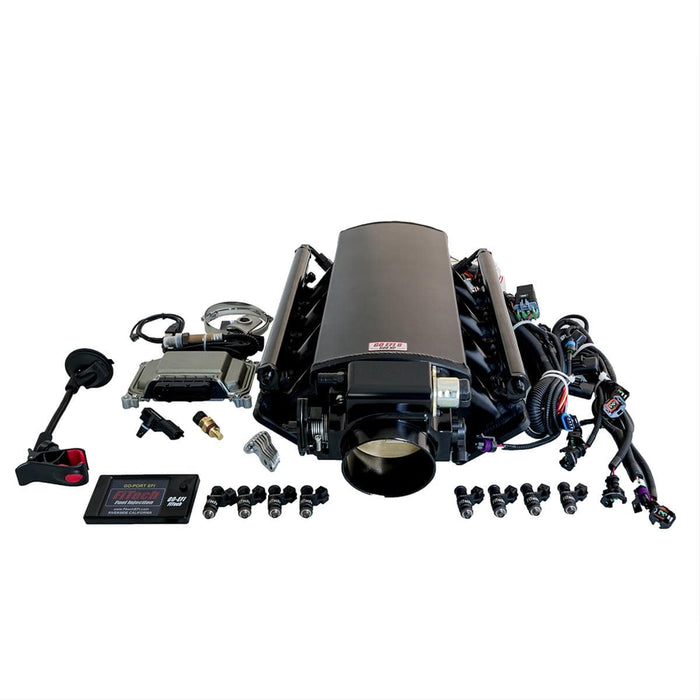

FiTech has some of the best-engineered and priced throttle body systems on the market. Their LS EFI 500HP fuel injection systems bring incredible ingenuity to the market. FiTech fabricated many aluminum parts for these systems, including the low-profile 92mm billet throttle body, high-volume billet fuel rails, and an intake manifold with 1,500 to 6,500 rpm powerband and 3mm construction.
Sequential spark and fuel control mates 36 lbs./hr. injectors, a plug-and-play wiring harness, and a color touchscreen self-learning ECU. This allows for programing two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on the fly. A suction cup mounting bracket puts the controllers at your fingertips and allows for impressive visual aids.
The optional transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80 GM transmissions. FiTech LS EFI 500HP fuel injection systems with transmission controller provide impressive power and performance, while allowing you to save a little green for your next tires.
Additional features:
* Black anodized aluminum parts for style and corrosion resistance
* High-flow, cable-operated throttle body
* Bosch wideband-controlled
* Stainless oxygen sensor bung
* Compatible with car and truck coils
* AN fittings and fuel crossover
* Works with custom cams
* Designed for applications making at least 6 in. of vacuum at idle
* 24X and 58X crank and cam compatible
* Programmable touchscreen hand-held controller with data log features
