Manufacturer's Part Number: 70017
Part Type: Fuel Injection Systems
Product Line: FiTech Ultimate LS EFI 750 HP Fuel Injection Systems
Automotive Fittings Part Number: FIF-70017
UPC: 856291005916
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 750
Timing Control Compatible: Yes
Power Adder Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: No
EGR: No
Transmission Controller Included: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Intake Manifold Included: Yes
Intake Section Included: Complete
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 102.00mm
Airflow Rate (cfm): 1,000 cfm
Throttle Body Material: Billet aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 55 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
Distributor Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Description:

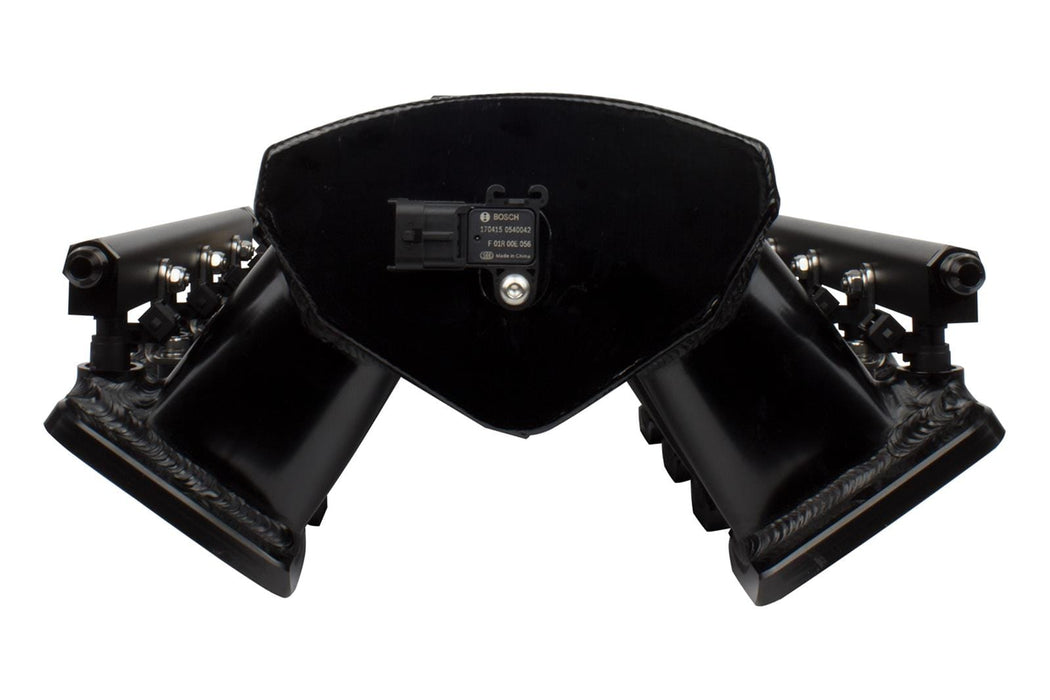

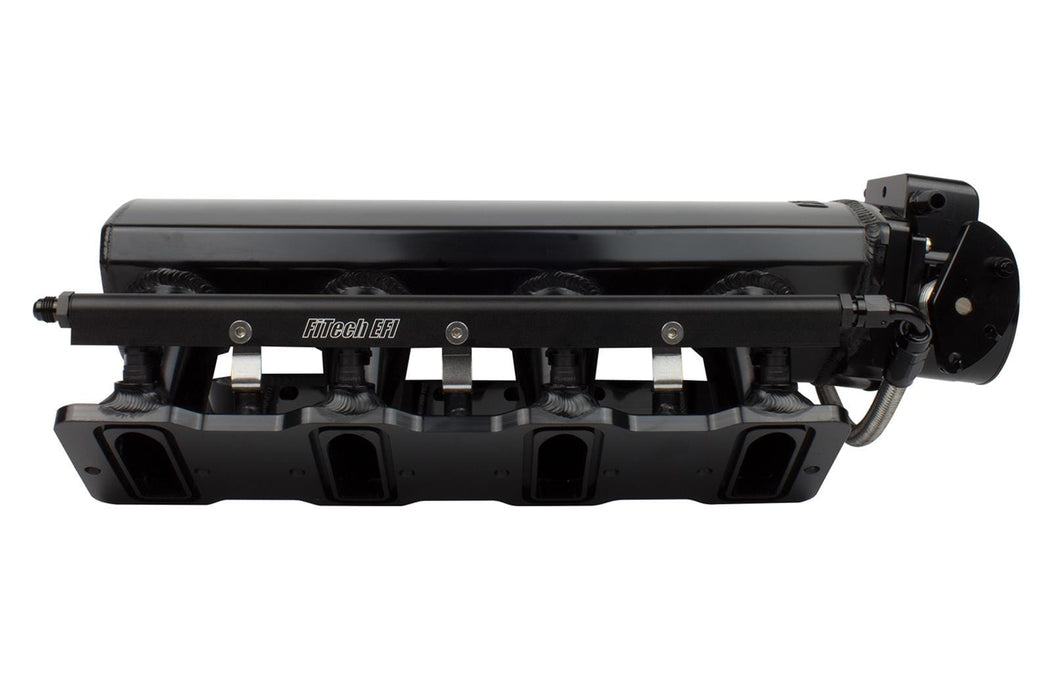

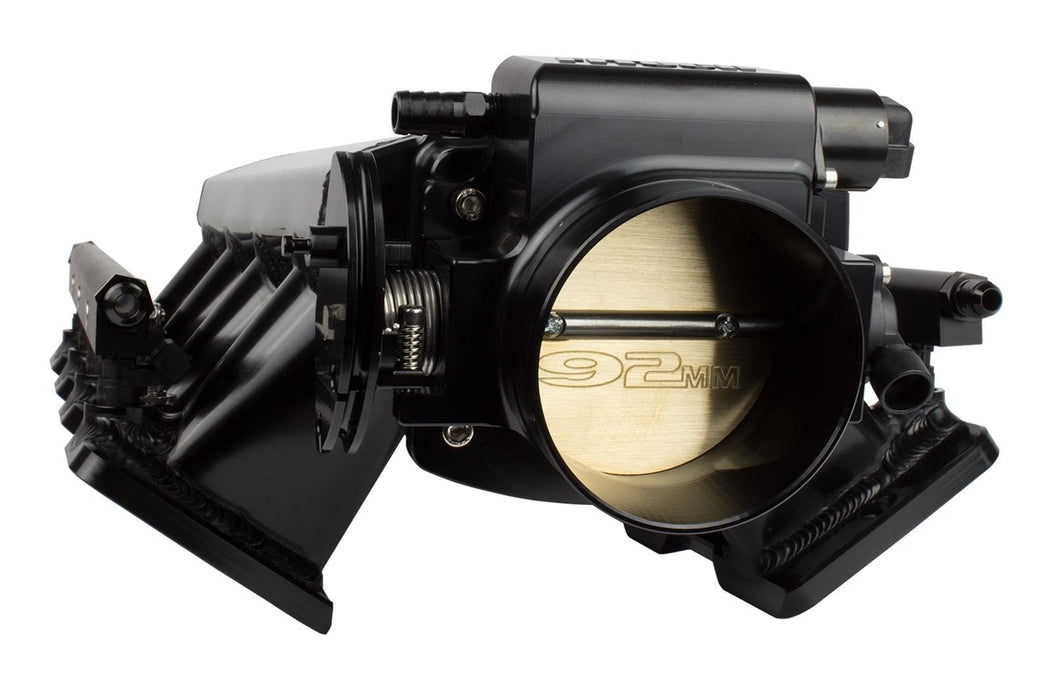

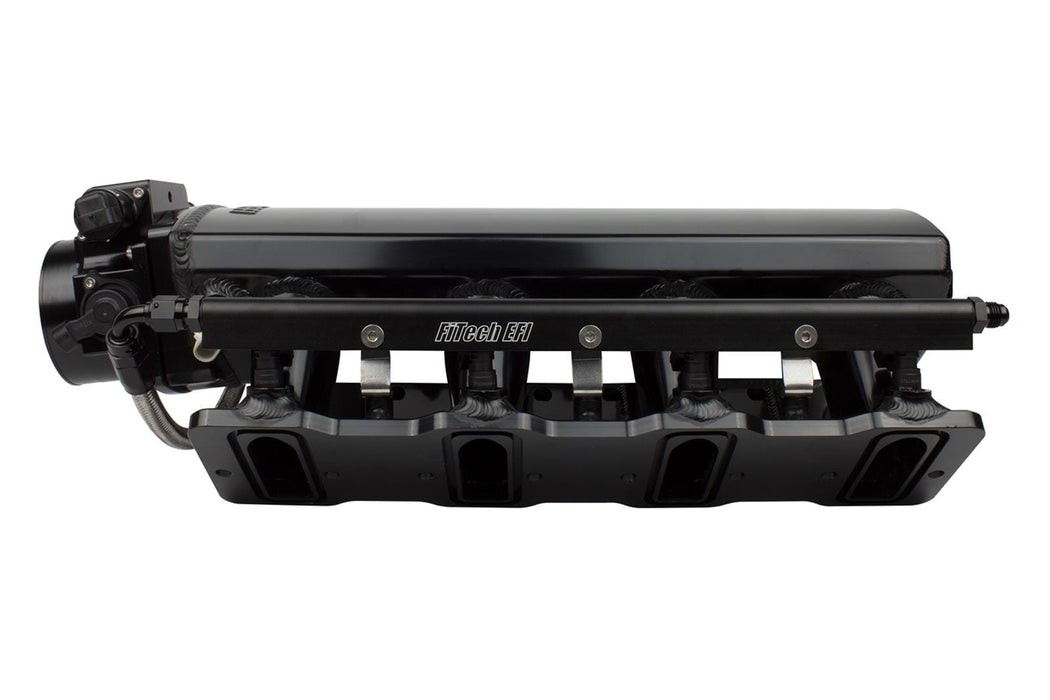

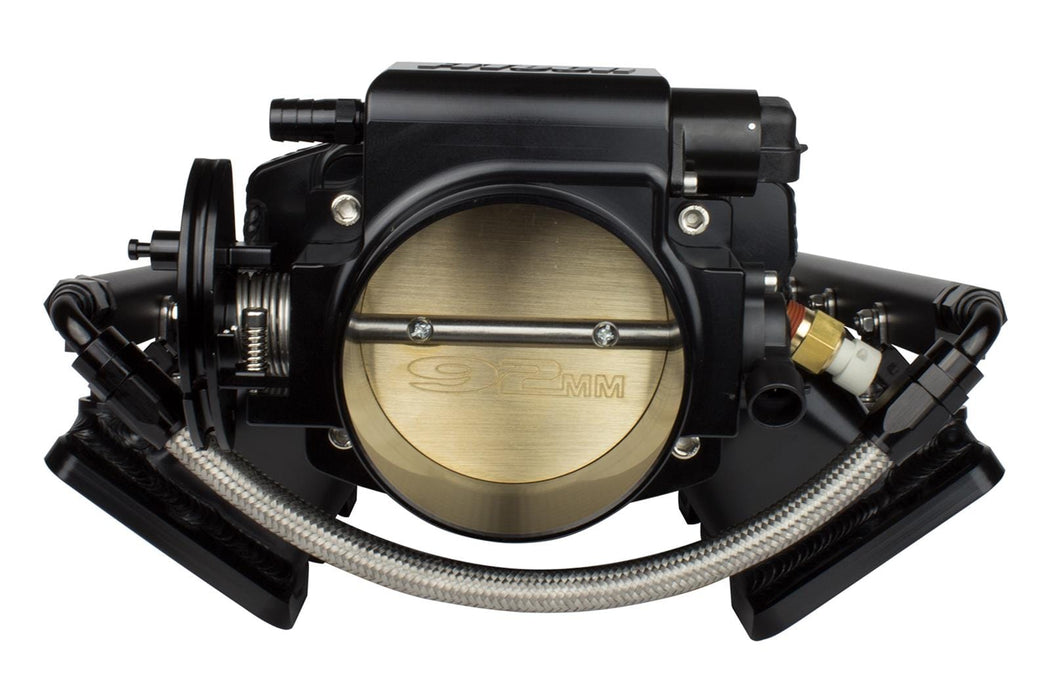

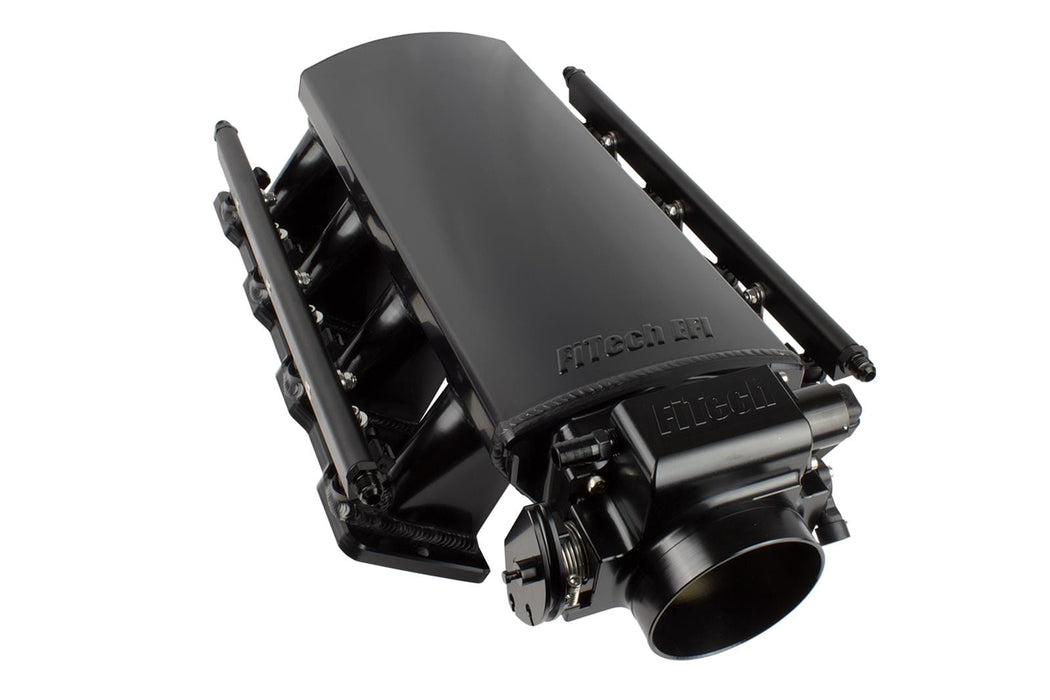

LS motors have a great base for power, but what they really need is something wicked to wake them up. FiTech LS EFI 750 HP fuel injection systems have alarming power, exciting style, and will take you and your vehicle to the edge. FiTech fabricated many aluminum parts for these systems, including the low-profile 102mm billet throttle body, high-volume billet fuel rails, and an intake manifold with a 1,500 to 6,500 rpm powerband and 3mm construction.

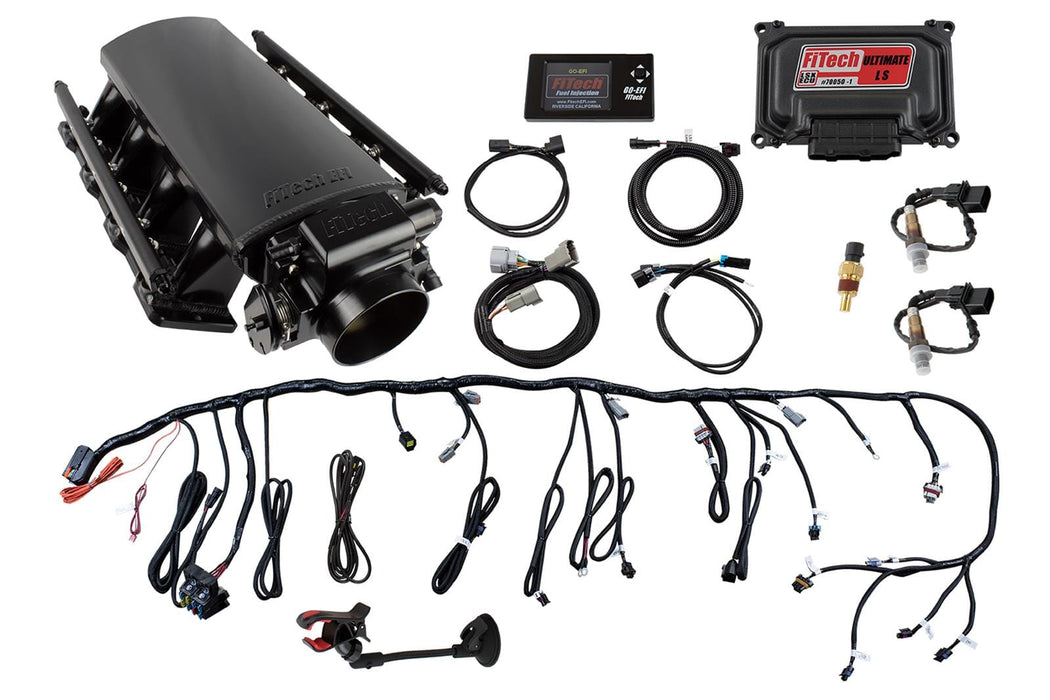

Sequential spark and fuel control mate the 55 lbs./hr. injectors, plug-and-play wiring harness, and color touch screen self-learning ECU. This allows you to program two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on-the-fly. A suction cup mounting bracket puts the controller at your fingertips and allows for impressive visual aids.
The optional transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80 GM transmissions. Awaken the beast and feed its needs with an ultra-performing FiTech LS EFI 750 HP fuel injection system with transmission controller.
Additional features:
* Programmable touch screen hand-held controller with data log features
* 3-bar MAP sensor automatically detects up to 30 psi boost
* AN fittings and fuel crossover
* 24X and 58X crank and cam-compatible and works with custom cams
* Black anodized aluminum parts for style and corrosion resistance
* High-flow, cable-operated throttle body
* Dual Bosch wideband with dual trim controlled
* Knock sensor control
* Stainless oxygen sensor bung
* Compatible with car and truck coils
* Designed for applications making at least 6 inches of vacuum at idle
