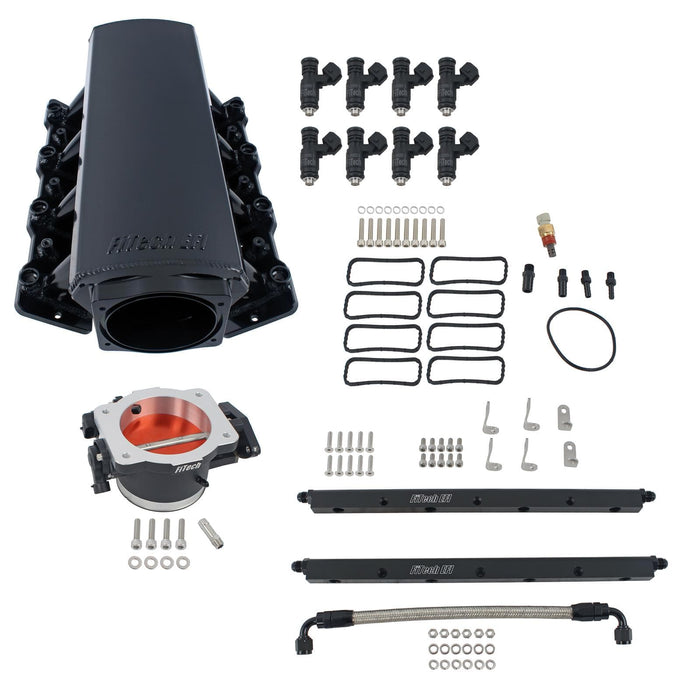

FiTech Ultimate LS Loaded Intake Manifold Kits 70075
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 70075
Part Type: Intake Manifolds, Fuel Injected
Product Line: FiTech Ultimate LS Loaded Intake Manifold Kits
Automotive Fittings Part Number: FIF-70075
UPC: 852192008544
Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 1,500-6,500
Intake Section Included: Complete
Throttle Body Bore Size: 92mm
Engine Block Deck Height: Standard deck
Injectors Included: Yes
Multi-Port Fuel Rails Included: Yes
EGR: No
Aftermarket Fuel Rail Required: Yes
Throttle Body Included: Yes
Supplemental Bosses Cast-In: No
Supplemental Bosses Machined: Yes
Supplemental Boss Quantity: Eight
Runners Included: Yes
Runners Removable: No
Base Material: Aluminum
Base Color: Black anodized
Remanufactured: No
Quantity: Sold as a kit.
Notes: Kit includes o-ring seals and hardware. For 500 HP LS1 truck engines.
Description:
FiTech Ultimate LS Loaded intake manifold kits are just like the systems, but without the ECU and hand-held controller.
FiTech Ultimate LS Loaded intake manifold kits will have:
* Low-profile 92mm or 102mm (750 hp kits only) inlet aluminum fabricated intake with 1,500 to 6,500 rpm powerband, 3mm construction, TIG-welded, black anodized with embossed FiTech logo
* CNC-machined with O-ring gaskets and hardware included
* High-flow cable operated 92mm or 102mm (750 hp kits only) throttle body
* Parabolic inlet machining for smooth throttle transitions, same as OE
* Throttle body features progressive linkage pulley with double-return spring and adjustable stop
* Billet fuel rails with AN fittings and fuel crossover
* 36 or 55 (750 hp kits only) lbs./hr. flow-matched injectors
