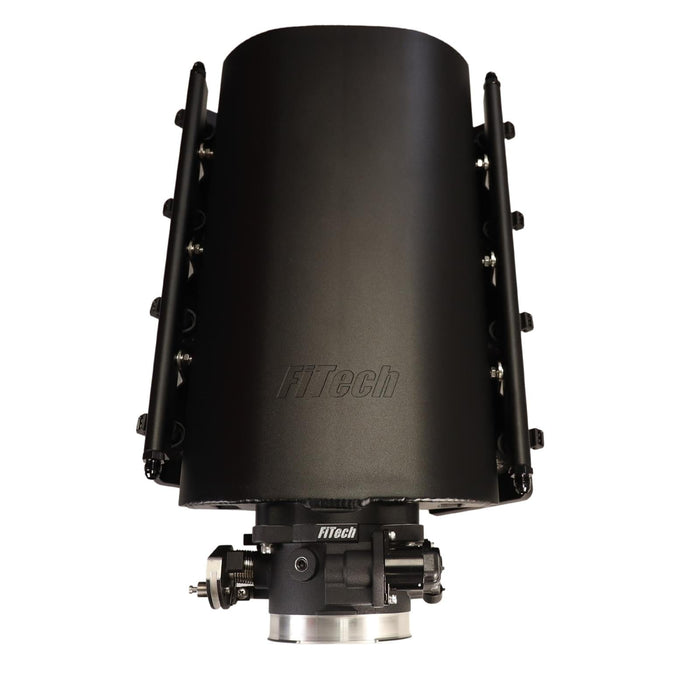

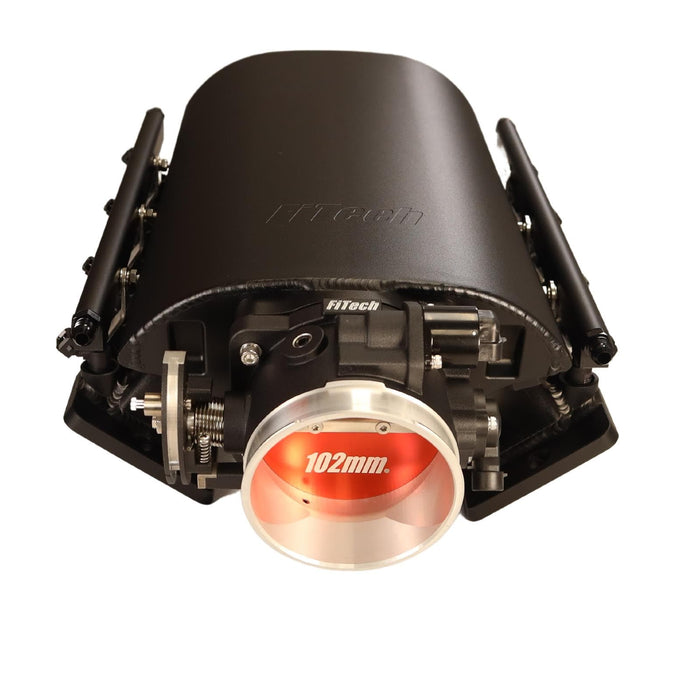

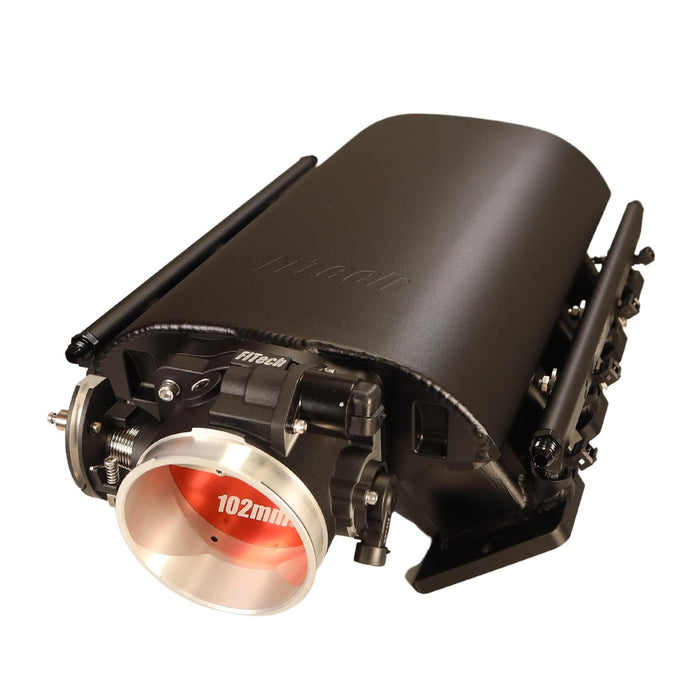

Fitech Ultimate Rebel LS 500 HP EFI Fuel Injection Systems 70088

Brand: FiTech Fuel Injection
Manufacturer's Part Number: 70088
Part Type: Fuel Injection Systems
Product Line: Fitech Ultimate Rebel LS 500 HP EFI Fuel Injection Systems
Automotive Fittings Part Number: FIF-70088
UPC: 812061030069
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 500
Timing Control Compatible: Yes
Power Adder Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: No
EGR: No
Transmission Controller Included: No
Intake Manifold Included: Yes
Intake Section Included: Complete
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 92.00mm
Airflow Rate (cfm): 1,000 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 36 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
Distributor Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Kit without transmission control.
Description:
FiTech Ultimate Rebel LS 500 hp EFI fuel injection systems are available with or without a transmission control. These cutting-edge fuel injection solutions combine high performance with a sleek and refined design. Building upon the success of the renowned FiTech Ultimate LS EFI system, the Rebel LS takes innovation a step further with its distinctive cleaner profile and enhanced features, making it the ultimate choice for modern engine conversions.

Designed for enthusiasts seeking both power and aesthetics, the Ultimate Rebel LS EFI system redefines the look and performance of your LS-powered vehicle. The standout feature of the Rebel LS system is its sleek and streamlined appearance, which seamlessly integrates with the engine bay, providing a cleaner and more polished aesthetic. The redesigned fuel rail bracket adds to the visual appeal, offering a fresh and modern touch that complements any engine setup.

Beneath its striking exterior, the Ultimate Rebel LS EFI system boasts the same advanced technology that FiTech is known for. Experience exceptional fuel delivery and engine control, optimizing your vehicle's performance and efficiency. These systems are tailored to LS engine conversions, ensuring a hassle-free installation process while delivering consistent and reliable results.

Key features include:

* Cleaner profile: The Ultimate Rebel LS EFI system is engineered with a refined design that seamlessly integrates into your engine bay, elevating the visual appeal of your vehicle
* Thicker gauge manifold provides quieter injection
* Redesigned fuel rail bracket: The innovative fuel rail bracket design not only enhances the appearance but also adds a touch of sophistication to your engine compartment
* Advanced fuel injection technology: Benefit from FiTech's cutting-edge fuel injection technology, ensuring precise fuel delivery and optimized engine performance
* Effortless installation: Designed specifically for LS engine conversions, the Rebel LS system offers a user-friendly installation process that minimizes downtime
* Optimized performance: Unlock the full potential of your LS-powered vehicle with improved throttle response, increased horsepower, and better fuel efficiency
* The most complete kit on the market; includes manifold, ECU, sensors, throttle body, harness, fuel rails, fuel pressure regulator, throttle cable brackets, and more
* Boost/Nitrous compatibility: Equipped with 3 Bar MAP sensor (27 psi)
* E85 compatible

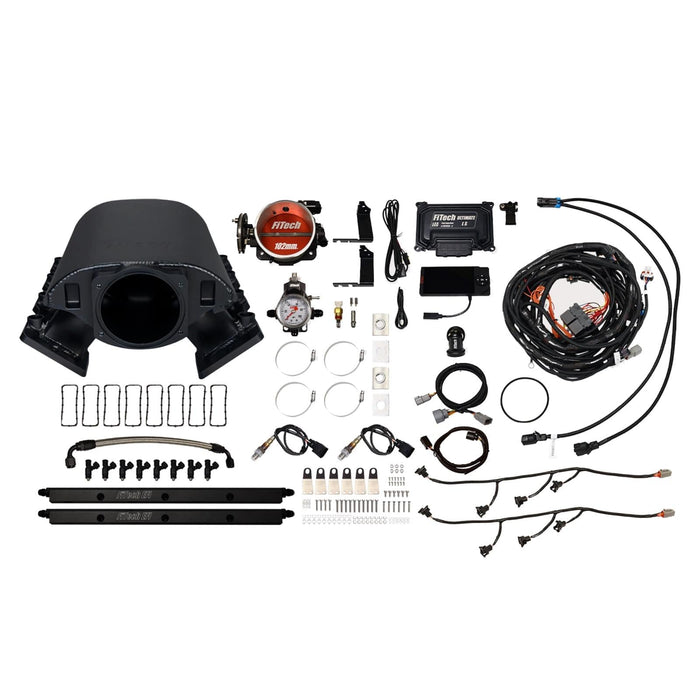

Kit contents:

(1) Rebel LS1, LS2, LS6 low-profile intake manifold with MAP and IAT port
(1) Ultimate LS 92mm throttle body with sensors
(8) 36 LB injectors
(1) LS ECU
(1) LS1 fuel rail kit
(1) Primary LS harness
(2) EV1 injector sub harness
(1) Oxygen sensor extension sub harness
(1) 3 Bar MAP sensor
(1) IAT sensor
(1) LS1/LS2 knock sensor harness
(1) Go EFI clamp-on oxygen sensor bung kit
(1) Handheld monitor for ultimate LS
(1) FiTech hand-held cable
(1) FiTech USB to USB C cable
(2) FiTech oxygen sensors
(1) Premium magnetic handheld mount
(1) Rebel intake throttle cable bracket with round hole
(1) Rebel intake throttle cable bracket with stock GM cable notch
(1) Go Fuel tight fit regulator with pressure gauge
