FiTech Ultra Ram EFI 650 HP Force Fuel/Go-Spark Fuel Injection Master Kits 93531

Brand: FiTech Fuel Injection
Manufacturer's Part Number: 93531
Part Type: Fuel Injection Systems
Product Line: FiTech Ultra Ram EFI 650 HP Force Fuel/Go-Spark Fuel Injection Master Kits
Automotive Fittings Part Number: FIF-93531
UPC: 812061033695
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 550
Timing Control Compatible: Yes
Power Adder Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: Yes
Fuel Pump Flow Rating (lph): 340
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Manifold Included: Yes
Intake Section Included: Complete
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Throttle Body Mounting Flange: GM LS2 4-bolt
Venturi Quantity: 1
Venturi Diameter (mm): 92.00mm
Airflow Rate (cfm): 1,250 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 36 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
Distributor Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Description:
FiTech's Ultra Ram EFI 650 hp Force Fuel/Go-Spark fuel injection master kits feature their outstanding Ultra Ram with aggressive looking sheet metal intake manifold along with a Force Fuel delivery system. Also included in these packages is a Go-Spark CD ignition for high-powered sparks that improve combustion and power output. Designed for the do-it-yourself hot rodder to the professional EFI tuner, these kits are ready to go with everything you need to convert your carbureted engine to top-of-the-line EFI FiTech self-learning technology.

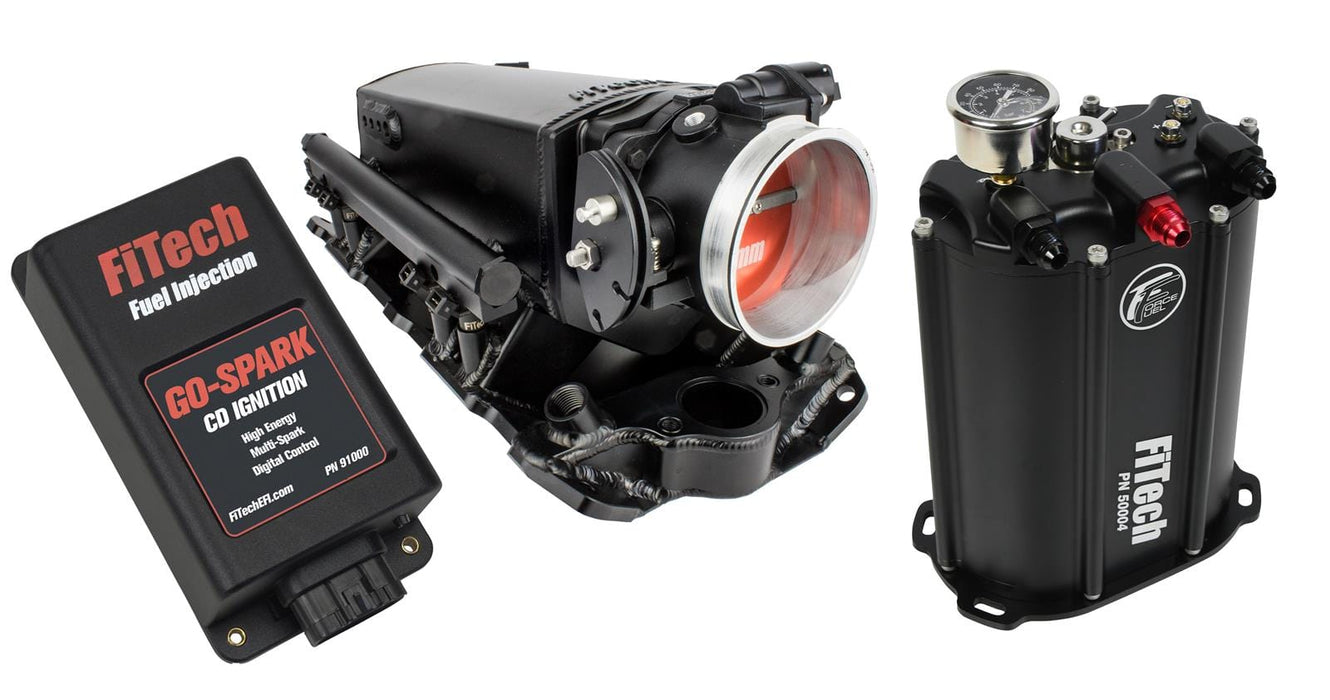

The Ultra Ram EFI system will support up to 650 hp and comes out of the box with the injectors and fuel rails installed. The robust ECU is easy to mount and handles the air/fuel mixture targets and you only need to input a few engine specs into the color touch screen monitor to get the engine to rev up. Ultra Ram is supplied with a sheet metal intake, cast aluminum 92mm throttle body, remote mount ECU, main harness, handheld controller, cable and windshield mount, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info.

For fuel delivery, these FiTech Ultra Ram master kits include either a 340 lph Force Fuel with a large 1/2 gallon reservoir or a compact 255 lph Mini Force system that fits easily under the hoods of street rods and smaller engine compartments. Both are equipped with an internal regulator that keeps the pressure at a consistent 58 psi, ideal for reliable EFI performance. They are supplied with high-pressure fuel hose, AN fittings, return line fitting bung, and liquid-filled gauge. The 340 lph also includes a 10-micron fuel filter.

Go-Spark CD ignition produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality, and throttle response. Designed for 4-, 6- and 8-cylinder engines equipped with a distributor, it accepts the trigger signal from an HEI, amplifier, points, or 2-wire non-magnetic pickup distributors. A separate 12 V square wave tach output can be used to trigger the EFI system and/or a tachometer.
