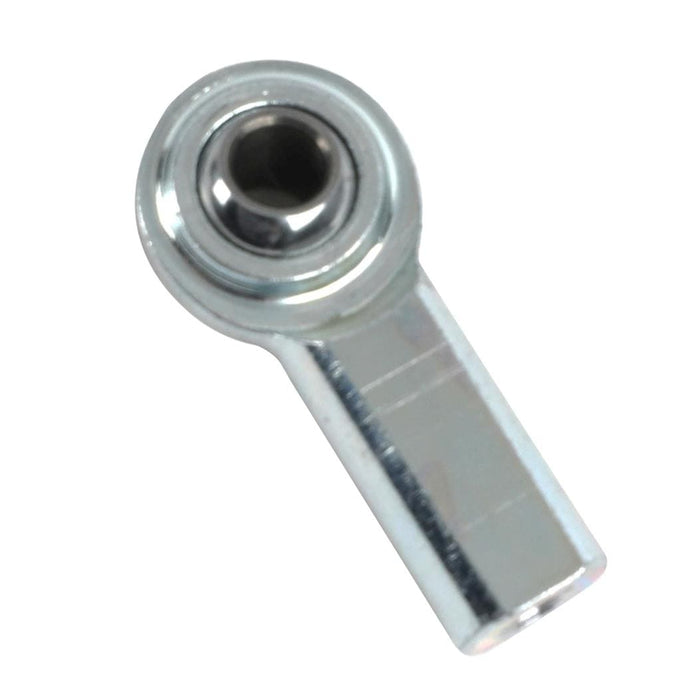

FK CM/CF Series Rod Ends CF4-3
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: CF4-3
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
Automotive Fittings Part Number: FKB-CF4-3
UPC: 800199094008
Rod End Thread Size: 10-32
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.250 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 0.687 in.
Rod End Head Diameter: 0.750 in.
Rod End Head Width: 0.250 in.
Grease Fitting: No
Rod End Centerline Length: 1.312 in.
Heat-Treated: No
Rod End Ball Width: 0.375 in.
Rod End Misalign Angle: 27 degrees
Rod End Static Load Capacity: 3,250 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Description:
FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.
