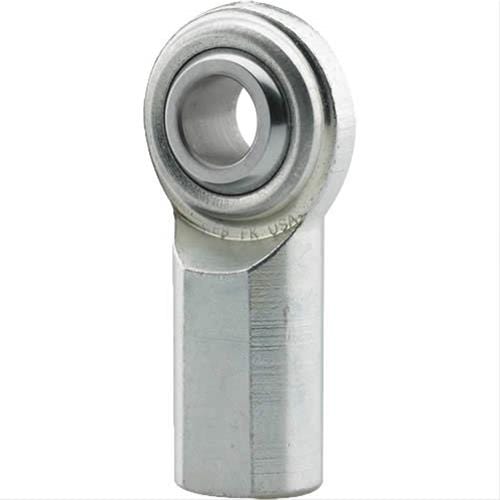

FK CM/CF Series Rod Ends CFX12T
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: CFX12T
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
Automotive Fittings Part Number: FKB-CFX12T
UPC: 800199231212
Rod End Thread Size: 3/4 in.-16
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.750 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.562 in.
Rod End Head Diameter: 1.750 in.
Rod End Head Width: 0.593 in.
Grease Fitting: No
Rod End Centerline Length: 2.875 in.
Heat-Treated: Yes
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 24 degrees
Rod End Static Load Capacity: 21,400 lbs.
Rod End Material: Alloy steel
Rod End Finish: Black oxide
Quantity: Sold individually.
Description:
FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.
