FK CM/CF Series Rod Ends CM6TY
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: CM6TY
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
Automotive Fittings Part Number: FKB-CM6TY
UPC: 800199150636
Rod End Thread Size: 3/8 in.-24
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.375 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.250 in.
Rod End Head Diameter: 1.000 in.
Rod End Head Width: 0.359 in.
Grease Fitting: No
Rod End Centerline Length: 1.938 in.
Heat-Treated: Yes
Rod End Ball Width: 0.500 in.
Rod End Misalign Angle: 22 degrees
Rod End Static Load Capacity: 4,244 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Notes: Comes with press-in stud in rod end bore.
Description:

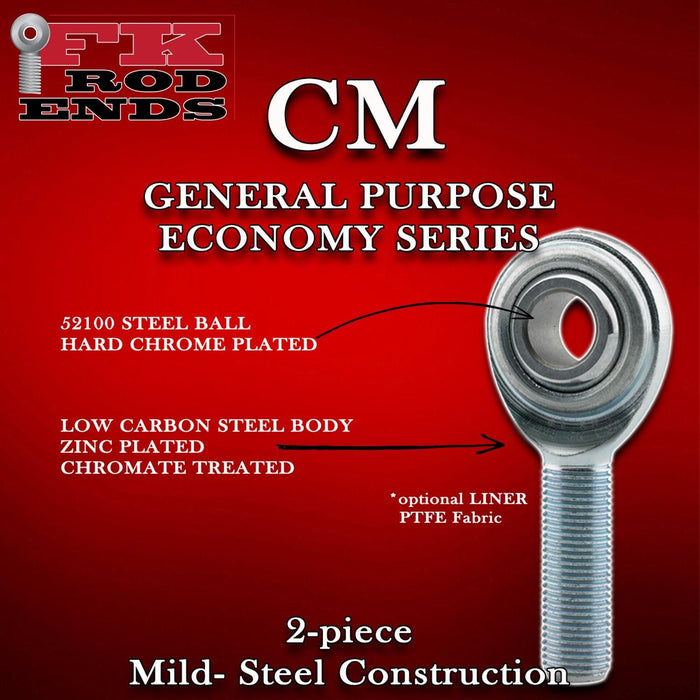

FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.
