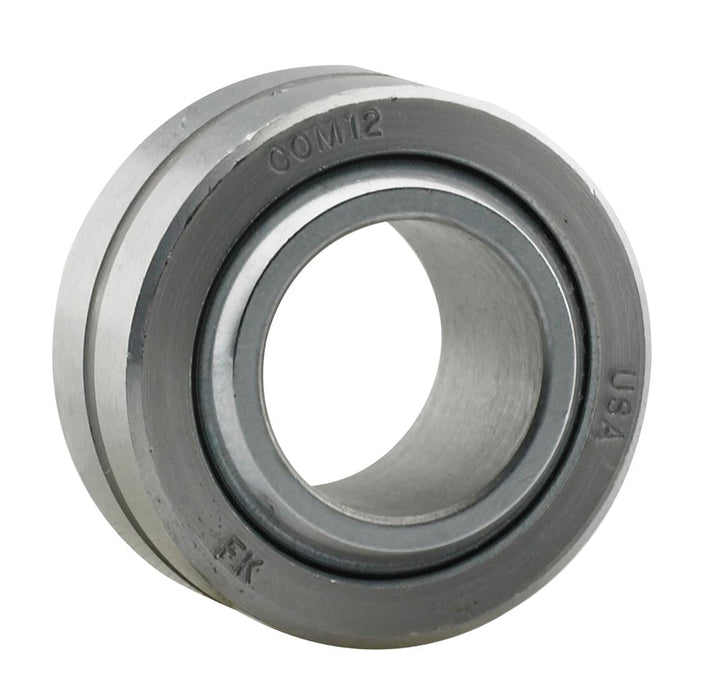

FK COM/COMH Series Spherical Bearings COM14T-F2
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: COM14T-F2
Part Type: Rod End Receiver Bearings
Product Line: FK COM/COMH Series Spherical Bearings
Automotive Fittings Part Number: FKB-COM14T-F2
Receiver Race Diameter: 1.5625 in.
Race Width: 0.703 in.
Inner Ball Width: 0.875 in.
Inner Ball Diameter: 0.8750 in.
Rod End Ball Diameter: 1.312 in.
Chamfer Reference: 0.044 in.
Rod End Misalign Angle: 9.5 degrees
ULT. Static Radial Load (lbs.): 41,960 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Notes: 2.0 to 6.0 in./lbs. no-load breakaway torque rating. Bearing has a PTFE liner.
Description:
FK COM/COMH spherical bearings are part of their commercial series. Precision-made from quality materials, these rod end bearings are tough and reliable to handle your stressed applications. Order the size, load rating, and other options needed for replacement or upgrade.
COM/COMH Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Low-carbon steel and oil coated race
