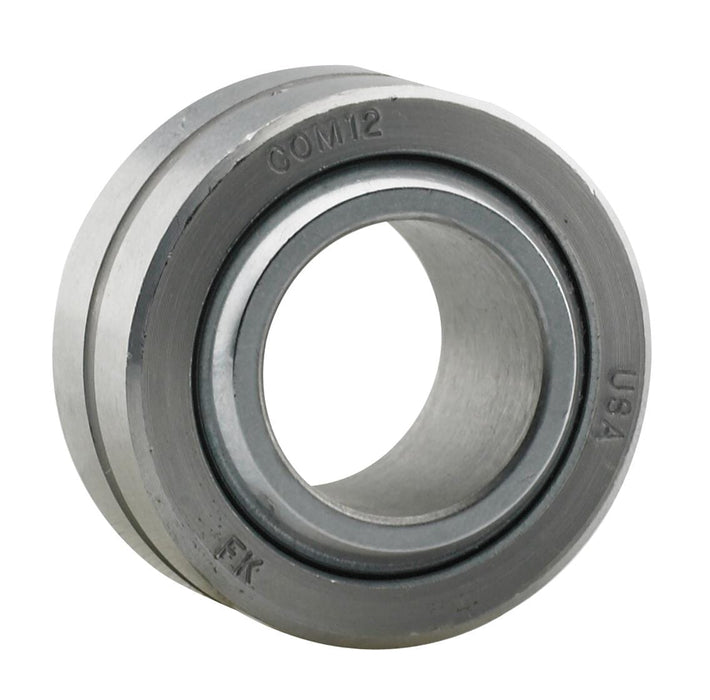

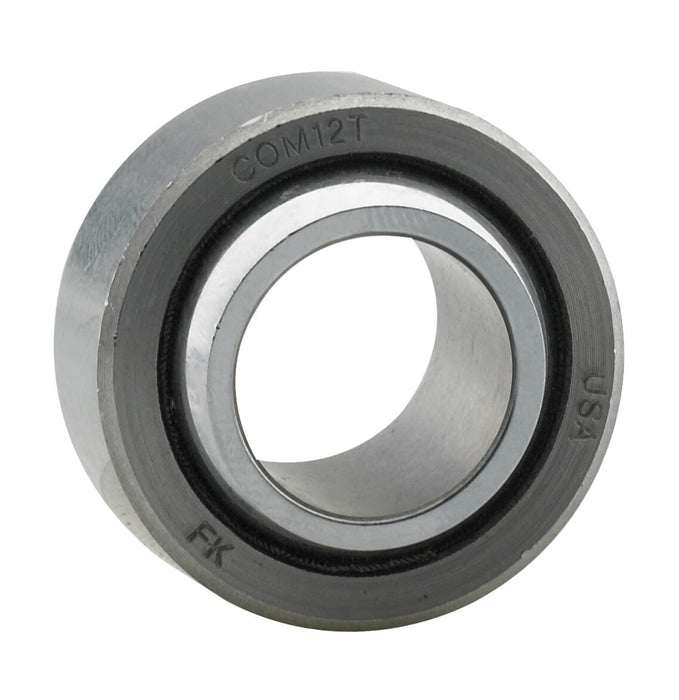

FK COM-M Series Spherical Bearings COM16M
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: COM16M
Part Type: Rod End Receiver Bearings
Product Line: FK COM-M Series Spherical Bearings
Automotive Fittings Part Number: FKB-COM16M
Receiver Race Diameter: 1.260 in.
Race Width: 0.591 in.
Inner Ball Width: 0.827 in.
Inner Ball Diameter: 0.6300 in.
Rod End Ball Diameter: 1.125 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle: 15 degrees
ULT. Static Radial Load (lbs.): 21,694 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Notes: Bearing has PTFE liner.
Description:
FK COM-M Series spherical bearings feature a hard chrome plated 52100 steel ball with an oil coated, low carbon steel race. Part of FK Bearing's Commercial Series, these metric bearings are offered in many sizes with or without a PTFE liner. COM-M Series spherical bearings have lubrication groove and holes in I.D. and O.D. of race, except those with the PTFE liner (no lubrication groove or holes).
