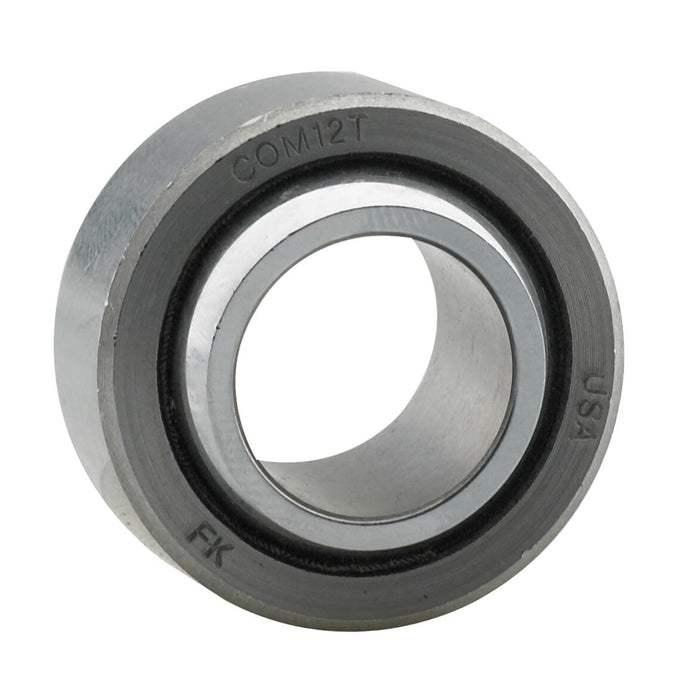

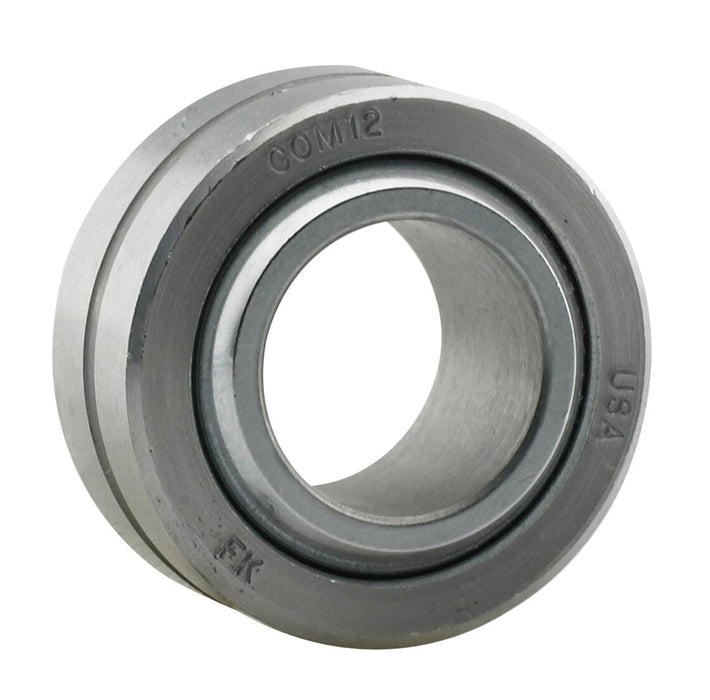

FK COM-M Series Spherical Bearings COM20MT
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: COM20MT
Part Type: Rod End Receiver Bearings
Product Line: FK COM-M Series Spherical Bearings
Automotive Fittings Part Number: FKB-COM20MT
Receiver Race Diameter: 40mm
Race Width: 25mm
Inner Ball Diameter: 20mm
Rod End Ball Diameter: 24.30mm
Chamfer Reference: 0.081 in.
Rod End Misalign Angle: 14 degrees
ULT. Static Radial Load (lbs.): 31,473
Rod End Bearing Material: Steel
Quantity: Sold individually.
Notes: Has a PTFE liner.
Description:
FK COM-M Series spherical bearings feature a hard chrome plated 52100 steel ball with an oil coated, low carbon steel race. Part of FK Bearing's Commercial Series, these metric bearings are offered in many sizes with or without a PTFE liner. COM-M Series spherical bearings have lubrication groove and holes in I.D. and O.D. of race, except those with the PTFE liner (no lubrication groove or holes).
