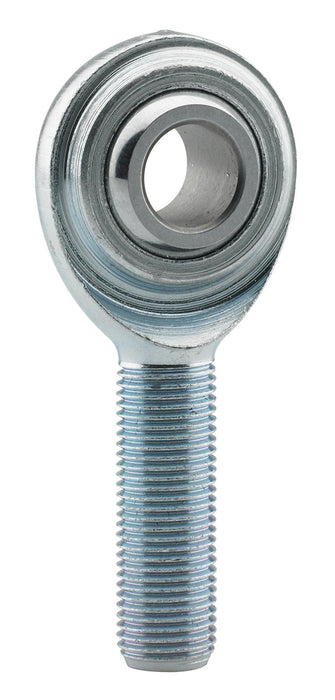

FK ECM/ECF Series Rod Ends ECML10
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: ECML10
Part Type: Rod Ends
Product Line: FK ECM/ECF Series Rod Ends
Automotive Fittings Part Number: FKB-ECML10
UPC: 800200411008
Rod End Thread Size: 5/8 in.-18 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.625 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.484 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: No
Rod End Ball Width: 0.750 in.
Rod End Misalign Angle: 26 degrees
Rod End Static Load Capacity: 9,813 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
Description:
FK ECM/ECF Series rod ends are frequently used in street rod applications without high-impact or load requirements. These economy rod ends feature 2-piece, metal-to-metal construction. Their bodies are constructed using low carbon steel and are zinc plated and chromate treated for performance and durability. Their ball is made of 52100 steel and is hard chrome plated for additional strength.
