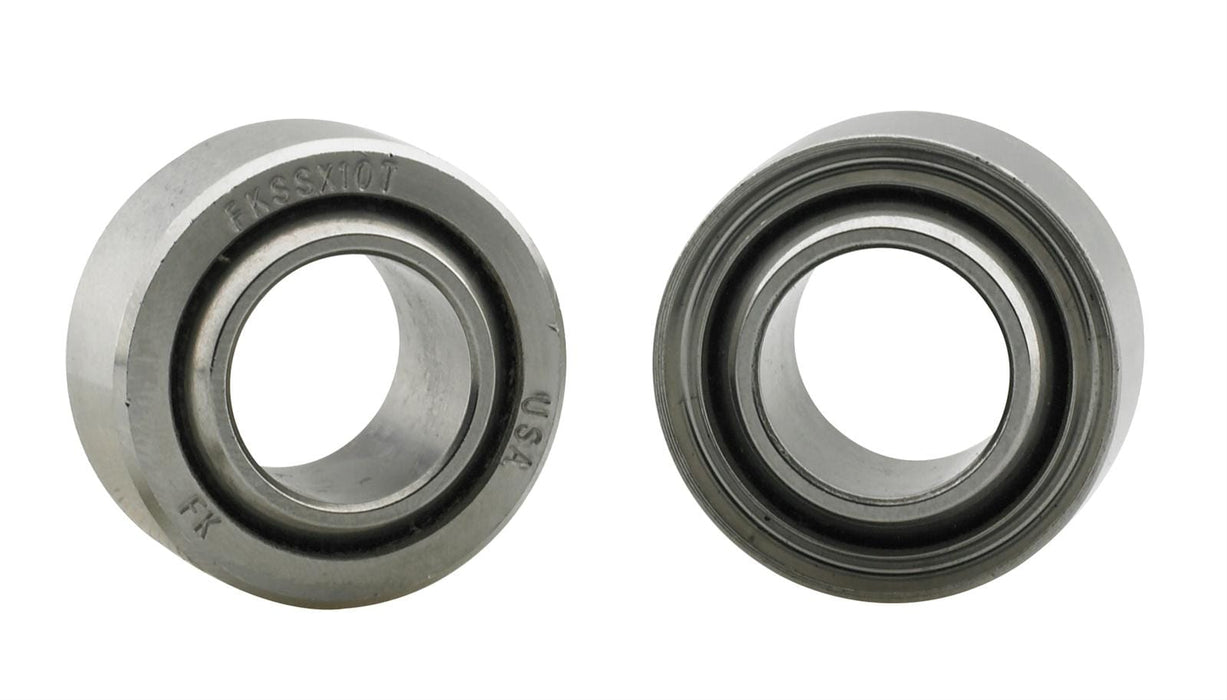

FK FKS/FKSSX Precision Narrow Series Spherical Bearings FKS6
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: FKS6
Part Type: Rod End Receiver Bearings
Product Line: FK FKS/FKSSX Precision Narrow Series Spherical Bearings
Automotive Fittings Part Number: FKB-FKS6
UPC: 800199640601
Receiver Race Diameter: 0.8125 in.
Race Width: 0.312 in.
Inner Ball Width: 0.406 in.
Inner Ball Diameter: 0.3750 in.
Rod End Ball Diameter: 0.656 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle: 10 degrees
ULT. Static Radial Load (lbs.): 18,000 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Description:
FK FKS/FKSSX Precision Narrow Series spherical bearings offer strength and durability for your race car's suspension and steering. These high-quality replacements are available in heat-treated, oil-coated alloy steel—with heat-treated hard chrome plated steel balls or heat-treated stainless steel with a bonded PTFE liner to handle abuse. FK's self-lubricating PTFE liners are chemically bonded to the inner diameter of the race for a very high load-carrying capacity with greatly increased dynamic wear characteristics. Order the size and other options needed for your application.
FKS Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Alloy steel, heat-treated and oil-coated race
* PTFE liners available
FKSSX Series offers:
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel race
* PTFE liner
