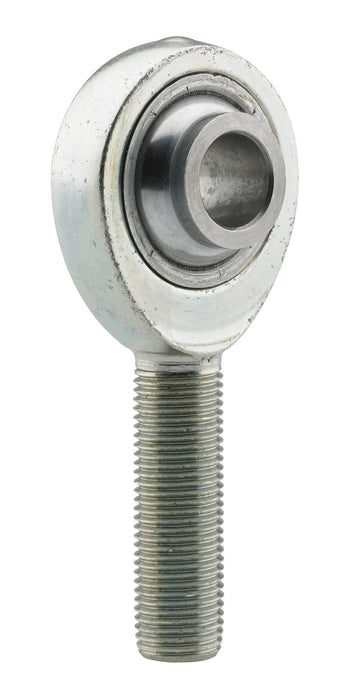

FK HRSMX-T/HIN-T Series Rod Ends HJMX7T
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: HJMX7T
Part Type: Rod Ends
Product Line: FK HRSMX-T/HIN-T Series Rod Ends
Automotive Fittings Part Number: FKB-HJMX7T
UPC: 800199910711
Rod End Thread Size: 7/16 in.-20
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.438 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.468 in.
Rod End Head Diameter: 1.337 in.
Rod End Head Width: 0.355 in.
Grease Fitting: No
Rod End Centerline Length: 2.438 in.
Heat-Treated: Yes
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 21 degrees
Rod End Static Load Capacity: 15,716 lbs.
Rod End Material: Steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Notes: Teflon® fabric liner.
Description:

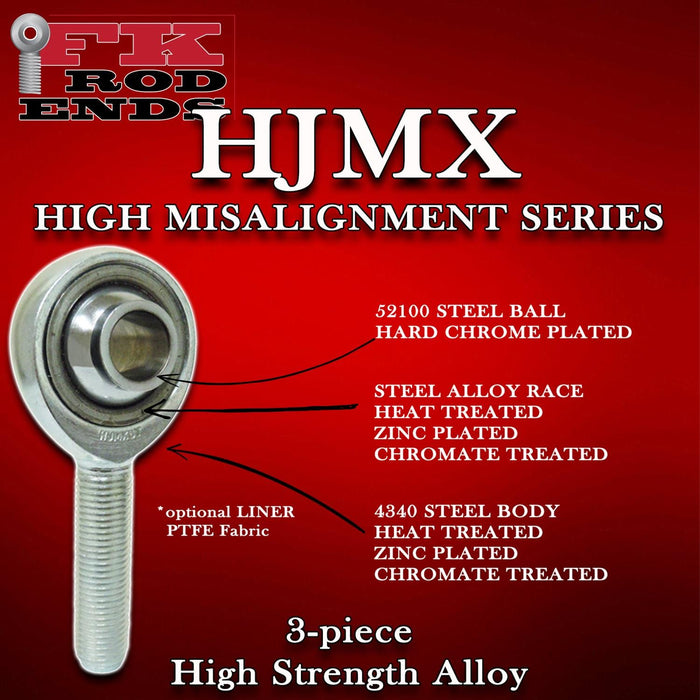

Rod ends are probably one of the most common parts on your race car. FK 3-piece precision HRSMX-T/HIN-T Series rod ends offer you durability, strength, and peace of mind. They are high strength with high misalignment built in for increased articulation without spacers. And they have PTFE liners for self-lubrication! Ever try to grease an already installed rod end? Plus, there's no greased fitting to attract dirt or weaken your rod end. HRSMX-T/HIN-T Series rod ends are built from zinc plated, heat-treated, chromate treated 4340 steel with hard chrome plated steel balls and a chromate treated, zinc plated steel alloy race. You won't think about that bargain rod end--until it breaks. Can you afford that? Choose FK HRSMX-T/HIN-T Series rod ends.
