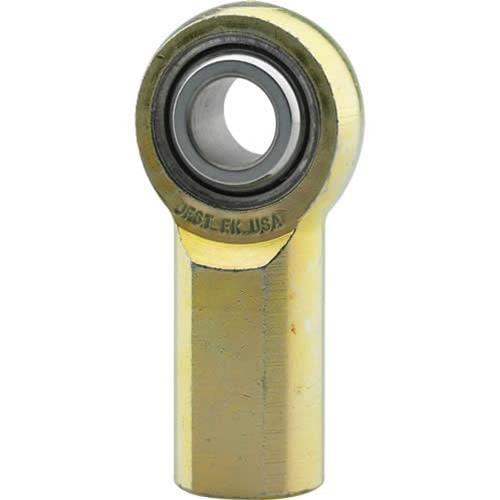

FK JF Series Rod Ends JFL14MT
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: JFL14MT
Part Type: Rod Ends
Product Line: FK JF Series Rod Ends
Automotive Fittings Part Number: FKB-JFL14MT
Rod End Thread Size: M14 x 1.5 LH
Rod End Attachment: Female threads
Rod End Head Bore Size: 14.000mm
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 27.000mm
Rod End Head Diameter: 34.750mm
Rod End Head Width: 13.500mm
Grease Fitting: No
Rod End Centerline Length: 57.000mm
Heat-Treated: Yes
Rod End Ball Width: 19.000mm
Rod End Misalign Angle: 21 degrees
Rod End Static Load Capacity: 6,708 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Description:
FK JF Series rod ends are precision-made and wear-resistant with a 3-piece design. They feature a zinc plated and chromate treated carbon steel body and a heat-treated, hard chrome plated 52100 steel ball. Their races are heat-treated steel alloy that's zinc plated to prevent oxidation. These rod ends are available in sizes 2-16 with optional PTFE liners.
