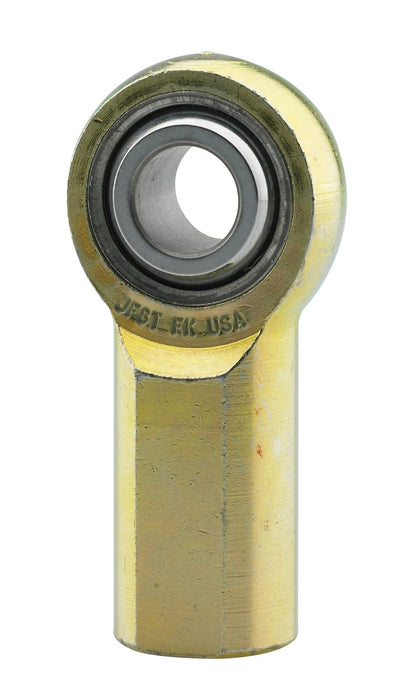

FK JF Series Rod Ends JFL4
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: JFL4
Part Type: Rod Ends
Product Line: FK JF Series Rod Ends
Automotive Fittings Part Number: FKB-JFL4
UPC: 800199340402
Rod End Thread Size: 1/4 in.-28 LH
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.250 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 0.687 in.
Rod End Head Diameter: 0.750 in.
Rod End Head Width: 0.281 in.
Grease Fitting: No
Rod End Centerline Length: 1.312 in.
Heat-Treated: No
Rod End Ball Width: 0.375 in.
Rod End Misalign Angle: 16 degrees
Rod End Static Load Capacity: 2,545 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
Description:
FK JF Series rod ends are precision-made and wear-resistant with a 3-piece design. They feature a zinc plated and chromate treated carbon steel body and a heat-treated, hard chrome plated 52100 steel ball. Their races are heat-treated steel alloy that's zinc plated to prevent oxidation. These rod ends are available in sizes 2-16 with optional PTFE liners.
