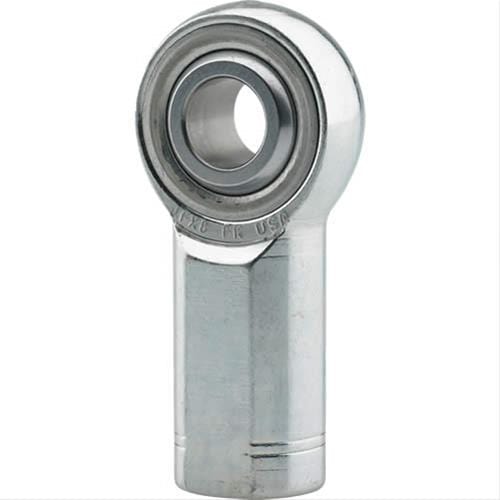

FK JFX Series Rod Ends JFXL14MFT
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: JFXL14MFT
Part Type: Rod Ends
Product Line: FK JFX Series Rod Ends
Automotive Fittings Part Number: FKB-JFXL14MFT
Rod End Thread Size: M14 x 1.5 LH
Rod End Attachment: Female threads
Rod End Head Bore Size: 14.000mm
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 36.000mm
Rod End Head Diameter: 34.750mm
Rod End Head Width: 13.500mm
Grease Fitting: No
Rod End Centerline Length: 60.000mm
Heat-Treated: Yes
Rod End Ball Width: 19.000mm
Rod End Misalign Angle: 21 degrees
Rod End Static Load Capacity: 16,128 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Description:
FK JFX Series rod ends feature 3-piece, wear-resistant construction. Their precision-made alloy steel bodies are heat- and chromate-treated and zinc plated to resist oxidation. The rod ends include heat-treated and hard chrome plated steel 52100 balls, as well as heat-treated, zinc plated, and chromate treated races. PTFE liners are available. Order the size, angle, and thread options needed for your application.
